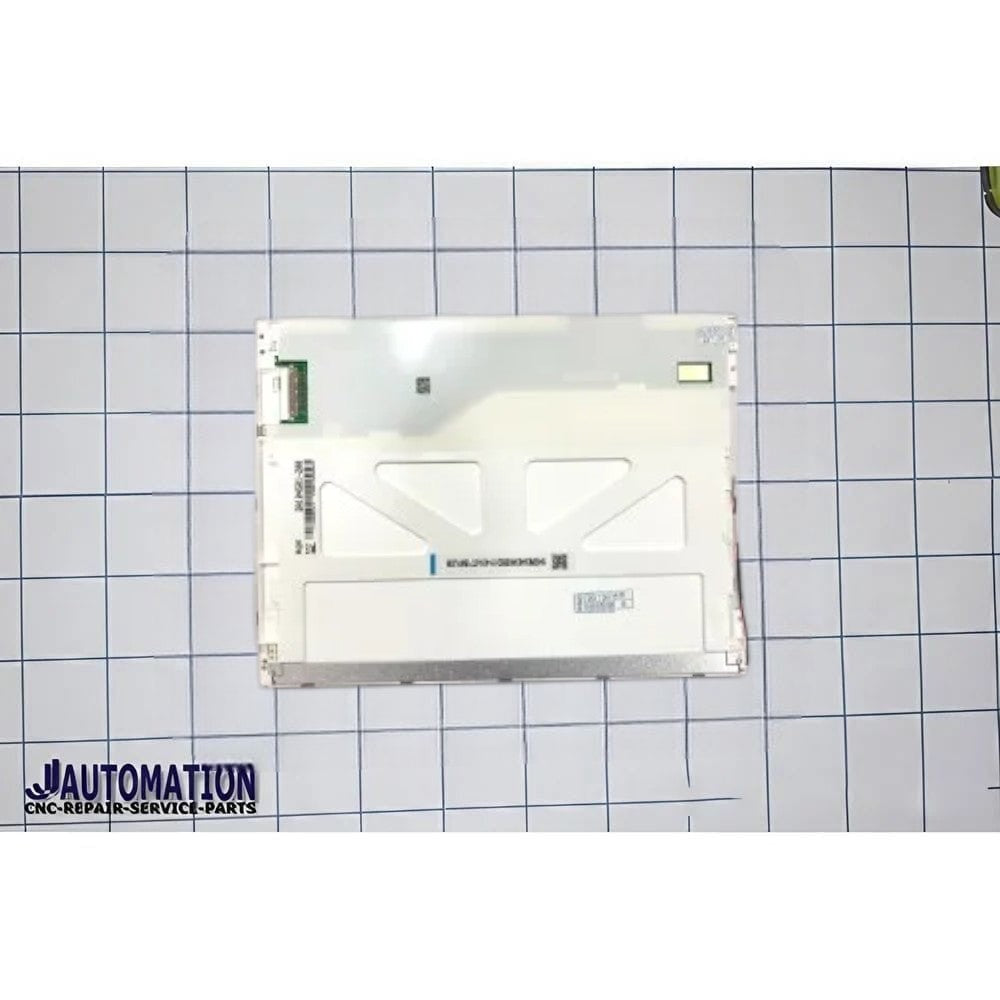

x📺 BOE BA104S01-300 Industrial LCD Panel
The BA104S01-300 is a 10.4-inch industrial TFT LCD display module made by BOE (a major LCD panel maker). It’s a bare display panel — meaning it doesn’t include an external enclosure, touchscreen, or video controller — and is intended for integration into equipment such as industrial machines, HMIs, medical devices, and embedded PCs.
📊 Key Specifications
-
-
Screen Size: 10.4 inch diagonal (4:3 aspect ratio)
-
Resolution: 800 × 600 pixels (SVGA)
-
Panel Type: a-Si TFT-LCD, TN-matrix, normally white, transmissive
-
Brightness: ~350 cd/m² (typical)
-
Contrast Ratio: 800:1 (typical)
-
Viewing Angles: ~80°/80°/65°/75° (L/R/U/D) (CR ≥ 10)
-
Response Time: ~30 ms (Tr+Td)
-
Display Colors: ~262K / 16.7M (6-bit + FRC)
-
Pixel Format: RGB vertical stripe
-
Active Area: approx. 211.2 × 158.4 mm
-
Outline Size: approx. 236 × 176.9 × 5.9 mm
-
Signal Interface: LVDS (1 ch, 6/8-bit) with 20-pin connector
-
Backlight: WLED (6S4P) with integrated LED driver, ~30,000 h life
-
Input Voltage: ~3.3 V (typ.)
-
Operating Temperature: -20 °C to +70 °C
-
Storage Temperature: -30 °C to +80 °C
-
Surface: Clear (some sources show AG25 anti-glare option)
-
Weight: ~300 g (typ.)
-
Refresh: ~60 Hz
-
