Description
xSiemens 6SL3130-1TE24-0AA0 Description

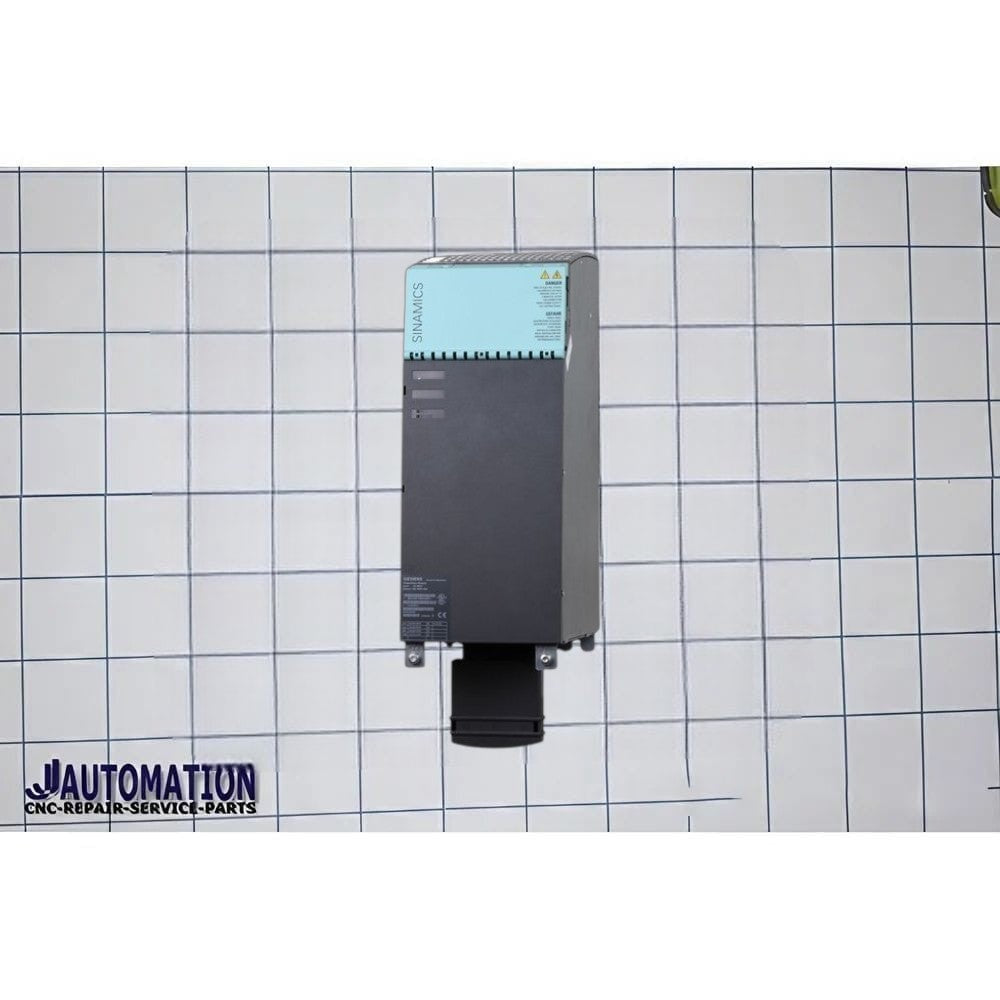

The Siemens 6SL3130-1TE24-0AA0 is a SINAMICS S120 Basic Line Module (BLM) designed to convert three-phase AC mains power into a regulated DC link voltage for SINAMICS S120 drive systems. Operating on 3 AC 380–480 V, 50/60 Hz, the module provides a 600 V DC link output with a rated power of 40 kW and is optimized for supplying power to SINAMICS S120 Motor Modules in multi-axis servo and spindle drive applications.
Featuring a compact Booksize design and internal air cooling, the 6SL3130-1TE24-0AA0 enables space-saving installation in control cabinets while delivering reliable power conversion. As a Basic Line Module, it is intended for non-regenerative applications, where braking energy is dissipated through braking resistors rather than fed back into the mains supply. The integrated DRIVE-CLiQ interface allows seamless communication, simplified commissioning, and advanced diagnostics within the SINAMICS S120 platform.
The module is widely used in CNC machine tools, packaging machinery, material handling equipment, textile machinery, printing systems, conveyor technology, and industrial automation applications requiring stable DC link power for motion control systems.
🔧 Basic Identification
| Feature | Details |
|---|---|
| Manufacturer | Siemens |
| Product Series | SINAMICS S120 |
| Part Number | 6SL3130-1TE24-0AA0 |
| Product Type | Basic Line Module (BLM) |
| Design Format | Booksize |
| Input Voltage | 3 AC 380–480 V |
| Frequency | 50/60 Hz |
| DC Link Voltage | 600 V DC |
| Rated Power | 40 kW |
| Cooling Method | Internal Air Cooling |
| Communication | DRIVE-CLiQ |
⚙️ Main Functions
- Converts three-phase AC power into DC link voltage
- Supplies power to SINAMICS S120 Motor Modules
- Provides stable 600 V DC bus voltage
- Supports multi-axis servo and spindle systems
- Enables compact drive cabinet designs
- Supports DRIVE-CLiQ communication and diagnostics
- Designed for non-regenerative drive applications
📋 Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Basic Line Module |
| Input Voltage | 3 AC 380–480 V ±10% |
| Frequency Range | 50/60 Hz |
| Rated Power | 40 kW |
| DC Link Voltage | 600 V DC |
| Rated DC Link Current | 67 A |
| Design | Booksize |
| Cooling | Internal Air Cooling |
| Protection Rating | IP20 |
| Communication Interface | DRIVE-CLiQ |
🧠 System Role
In a SINAMICS S120 architecture:
3-Phase AC Mains
→ 6SL3130-1TE24-0AA0 Basic Line Module
→ 600 V DC Link
→ Motor Modules
→ Servo Motors / Spindle Motors
The Basic Line Module serves as the central power conversion stage, generating the DC link voltage required by connected Motor Modules for reliable motion-control operation.
🏭 Typical Applications
- CNC machining centers
- SINUMERIK-controlled machine tools
- Packaging machinery
- Material handling systems
- Printing and converting equipment
- Textile machinery
- Conveyor systems
- Assembly automation
- Industrial production lines
⭐ Key Benefits
- Reliable AC-to-DC power conversion
- Compact Booksize construction
- Stable 600 V DC link output
- Cost-effective solution for non-regenerative systems
- Simplified integration with SINAMICS S120 drives
- Reduced control cabinet space requirements
- Easy commissioning through DRIVE-CLiQ
- Proven Siemens industrial drive technology
