Description

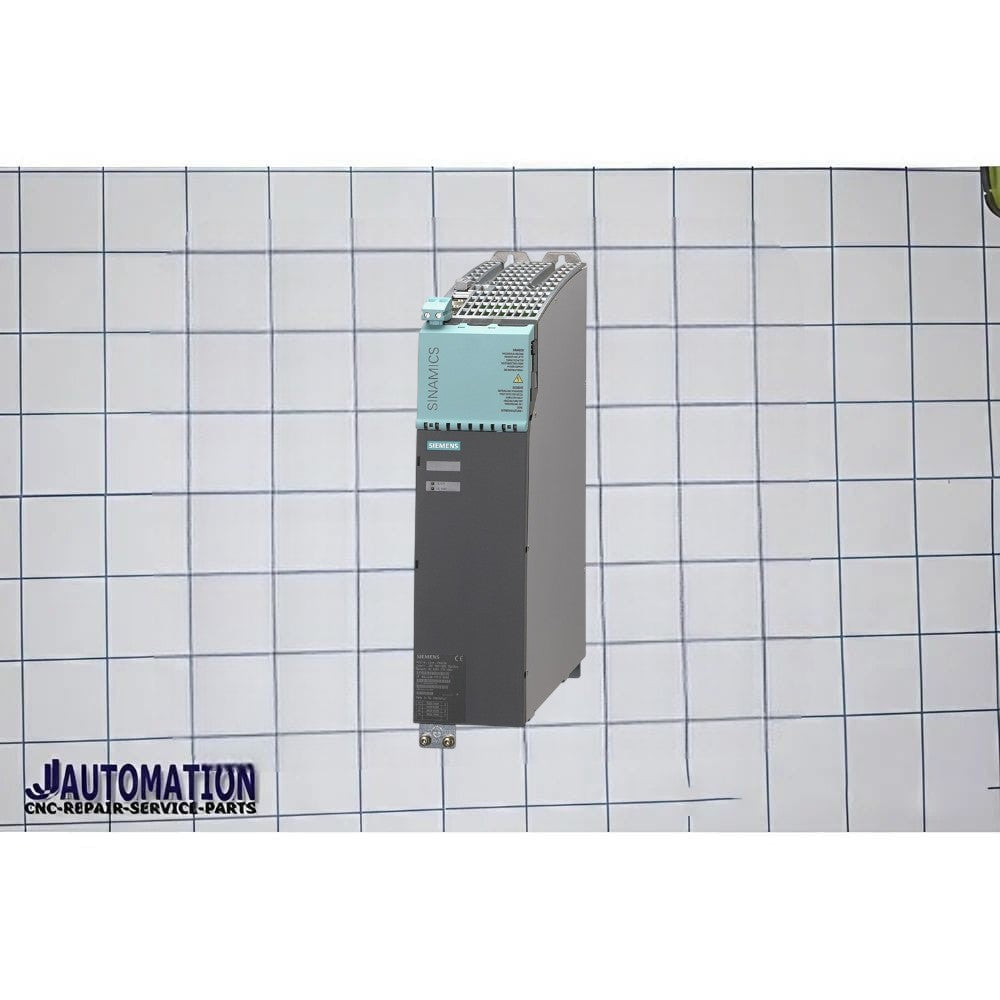

xThe Siemens 6SL3162-1AH01-0AA0 is a SINAMICS S120 Smart Line Module (SLM) used as the power infeed unit in Siemens multi-axis servo drive systems. It converts incoming 3-phase AC power into a DC link voltage that supplies SINAMICS S120 Motor Modules.
Unlike Active Line Modules, the Smart Line Module does not regenerate braking energy back to the mains. Regenerative energy is dissipated through an external braking resistor system.
🔧 Basic Identification
| Feature | Details |
|---|---|
| Manufacturer | Siemens |
| Product Series | SINAMICS S120 |
| Part Number | 6SL3162-1AH01-0AA0 |
| Product Type | Smart Line Module (SLM) |
| Frame Size | Booksize |
| Input Voltage | 3-phase 380–480 V AC |
| Output Voltage | DC Link Output |
| Rated Current | 100 A |
| Cooling Method | Internal air cooling |
| Communication | DRIVE-CLiQ compatible |
📌 Siemens identifies this unit as a SINAMICS S120 Smart Line Module, Booksize format, for 380–480 V AC systems, designed to provide DC bus power for S120 Motor Modules.
⚙️ Main Functions
The 6SL3162-1AH01-0AA0 is designed to:
- Convert 3-phase AC input into DC link voltage
- Supply power to SINAMICS S120 Motor Modules
- Support multi-axis servo drive architectures
- Operate with braking resistor systems for regenerative energy handling
- Provide a compact and cost-effective power infeed solution
- Integrate with SINAMICS S120 control systems through DRIVE-CLiQ
📋 Technical Specifications
| Specification | Value |
|---|---|
| Input Supply | 3 AC 380–480 V |
| Frequency | 50/60 Hz |
| Rated DC Link Current | 100 A |
| Frame Size | Booksize |
| Cooling Method | Internal air cooling |
| Protection Class | IP20 |
| Communication Interface | DRIVE-CLiQ |
| System Compatibility | SINAMICS S120 |
🧠 System Role
In a SINAMICS S120 system:
Control Unit (CU)
→ controls
Smart Line Module (6SL3162-1AH01-0AA0)
→ generates DC bus voltage for
Motor Modules
→ drive
servo motors
The Smart Line Module acts as the central AC-to-DC power supply unit for the complete servo drive system.
🔋 Smart Line Module vs Active Line Module
| Feature | Smart Line Module | Active Line Module |
|---|---|---|
| AC-to-DC Conversion | Yes | Yes |
| Energy Regeneration to Grid | No | Yes |
| Braking Resistor Required | Yes | Usually No |
| Harmonic Reduction | Standard | Advanced |
| System Cost | Lower | Higher |
| Energy Efficiency | Good | Excellent |
Smart Line Modules are often selected when regenerative energy feedback is not required and a simpler, lower-cost solution is preferred.
🏭 Typical Applications
- CNC machine tools
- Packaging machinery
- Material handling systems
- Conveyor systems
- Printing equipment
- Industrial automation systems
- Multi-axis servo applications
🔍 Key Features
- SINAMICS S120 Booksize design
- 100 A DC link current capacity
- Compact power infeed solution
- DRIVE-CLiQ integration
- Internal air cooling
- Reliable DC bus generation
- Cost-effective alternative to Active Line Modules
🧾 Short Website Description
The Siemens 6SL3162-1AH01-0AA0 is a SINAMICS S120 Smart Line Module with a 100 A DC link current rating, designed to provide reliable AC-to-DC power conversion for industrial servo drive systems. It serves as the main power infeed unit for SINAMICS S120 architectures and is ideal for CNC machines, packaging equipment, material handling systems, and multi-axis automation applications.
