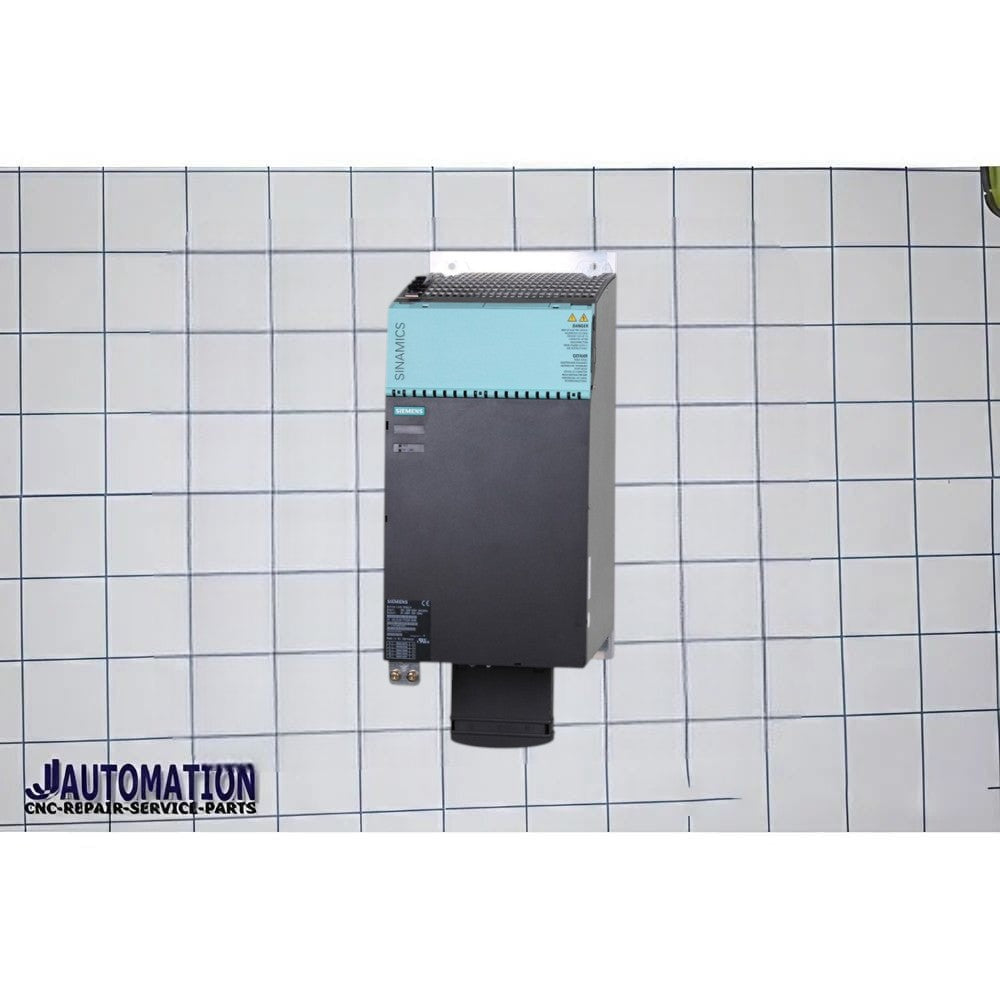

SINAMICS Single Motor Module in Booksize Format 6SL3120-1TE28-5AA3

Siemens 6SL3120-1TE28-5AA3 – Description

6SL3120-1TE28-5AA3 is a Siemens SINAMICS S120 Single Motor Module designed for high-power industrial motion control applications. Operating from a DC 600 V link supply, it delivers a 3-phase 400 V AC output with a rated output current of 85 A and a power capability of approximately 46 kW. The module features a compact Booksize design, internal air cooling, optimized pulse patterns, integrated DRIVE-CLiQ communication, and support for Extended Safety Integrated functions, making it suitable for machine tools, material handling systems, printing presses, packaging machinery, and other demanding automation applications.

Key Specifications

Description

The Siemens 6SL3120-1TE28-5AA3 SINAMICS S120 Single Motor Module is a high-performance drive module engineered for precise and reliable motor control in advanced industrial automation systems. With a 600 V DC link input, 400 V AC output, and 85 A rated current, it provides exceptional dynamic performance for servo and vector-controlled motor applications. Its compact Booksize construction minimizes cabinet space requirements, while integrated DRIVE-CLiQ connectivity simplifies system integration and diagnostics. Advanced Safety Integrated functionality and efficient internal air cooling make this module an ideal choice for CNC machines, robotics, packaging equipment, printing systems, and multi-axis production lines.
