Siemens 6SL3120-1TE22-4AC0 – Description

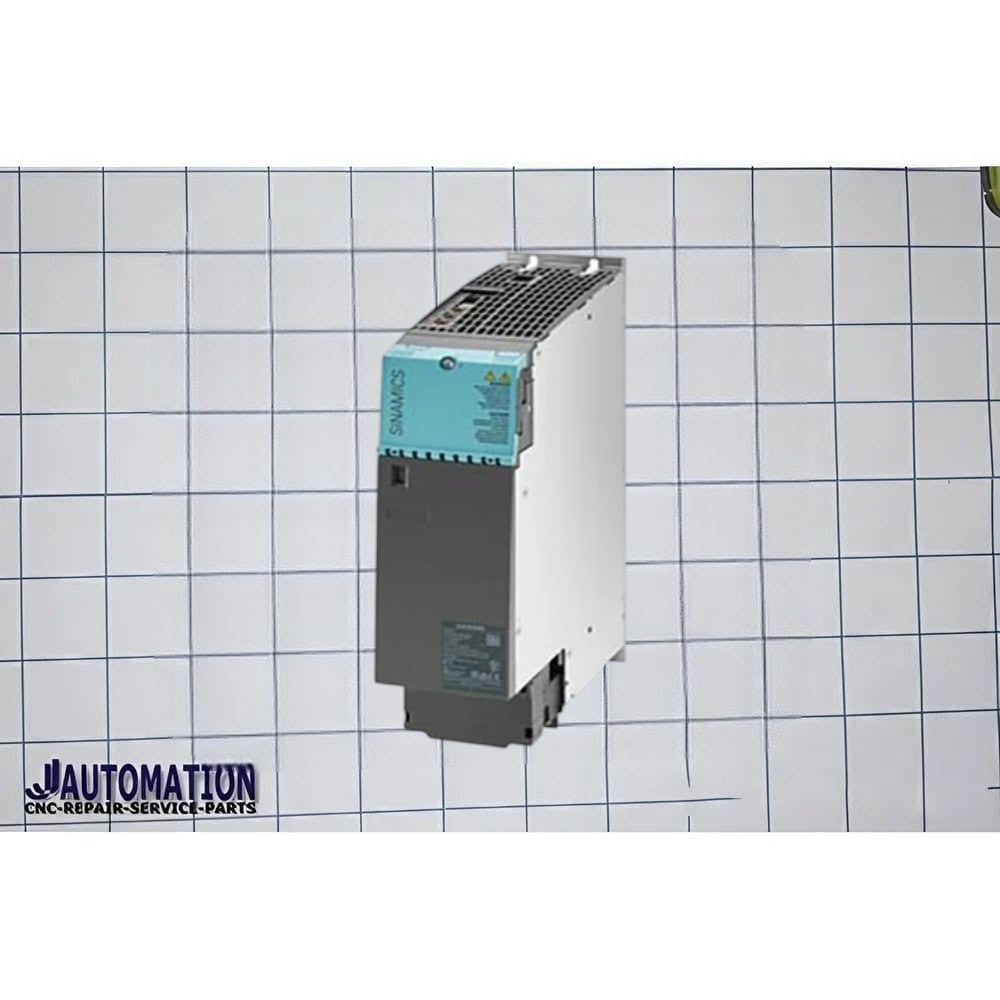

6SL3120-1TE22-4AC0 is a Siemens SINAMICS S120 Single Motor Module in Booksize C-Type format, engineered for demanding servo and vector-control applications. The module operates from a DC 600 V link supply and provides a 3-phase 400 V AC output with a rated output current of 24 A. It features internal air cooling, integrated DRIVE-CLiQ communication, optimized pulse patterns, and support for Extended Safety Integrated functions, ensuring high-performance and reliable operation in advanced industrial automation systems.
Key Specifications
| Parameter | Value |
|---|---|
| Product Number | 6SL3120-1TE22-4AC0 |
| Product Family | SINAMICS S120 |
| Module Type | Single Motor Module |
| Frame Size | Booksize C-Type |
| Input Voltage | DC 510–720 V |
| Nominal DC Link Voltage | DC 600 V |
| Output Voltage | 3 AC 400 V |
| Rated Output Current | 24 A |
| Rated Motor Power | Approx. 13 kW |
| Cooling Method | Internal Air Cooling |
| Communication Interface | DRIVE-CLiQ |
| Safety Functions | Extended Safety Integrated |
| Protection Class | IP20 |
| Weight | Approx. 4.7 kg |
| Included Accessory | DRIVE-CLiQ Cable Included |
Description
The Siemens 6SL3120-1TE22-4AC0 SINAMICS S120 Single Motor Module is a compact and powerful drive module designed for precision motion-control applications. Featuring a 600 V DC link input, 400 V AC three-phase output, and 24 A rated current, it delivers exceptional dynamic performance and accurate motor control. The Booksize C-Type design minimizes cabinet space requirements, while integrated DRIVE-CLiQ connectivity enables fast commissioning, diagnostics, and seamless integration within SINAMICS S120 systems. Advanced Safety Integrated functions and efficient internal air cooling make this module ideal for machine tools, robotics, packaging equipment, printing machinery, and automated production lines.
