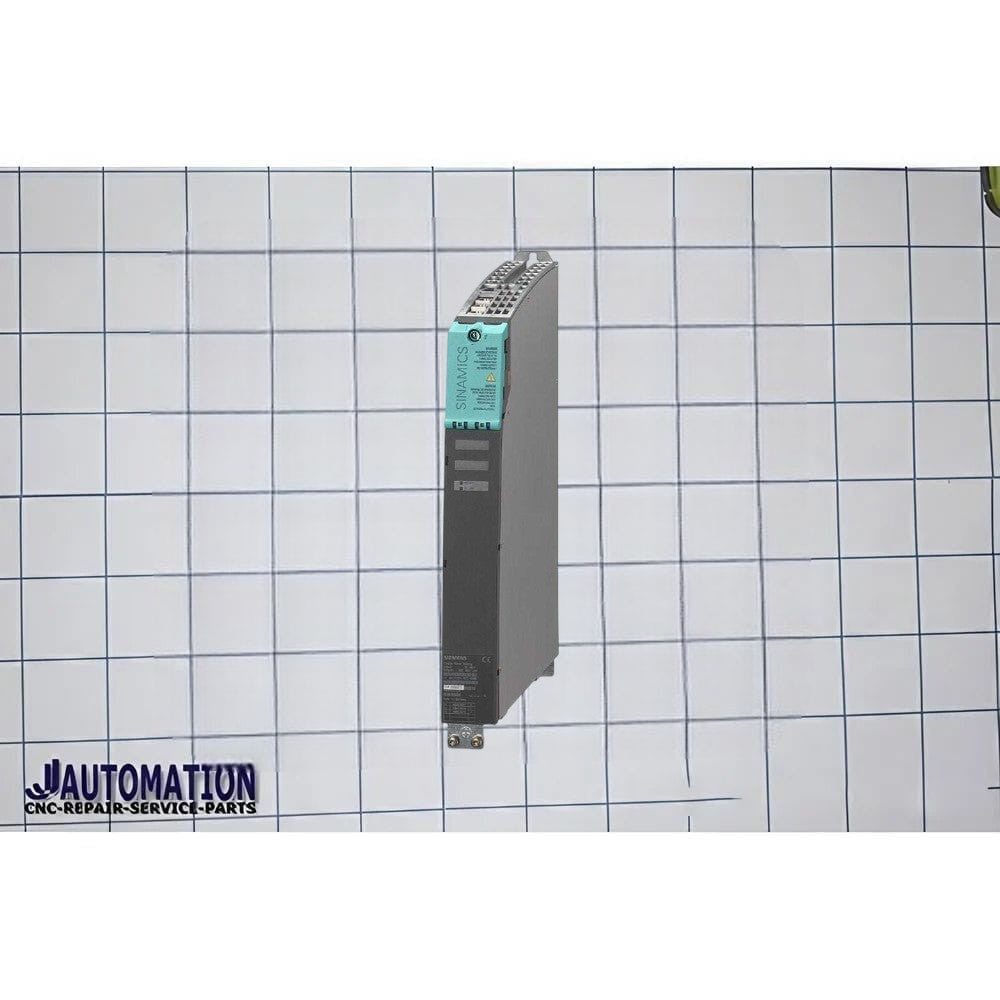

SINAMICS Single Motor Module in Booksize Format 6SL3120-1TE22-4AD0

Siemens 6SL3120-1TE22-4AD0 – Description

6SL3120-1TE22-4AD0 is a Siemens SINAMICS S120 Single Motor Module in Booksize D-Type format, engineered for high-performance servo and motion-control applications. The module operates from a DC 600 V link supply and provides a 3-phase 400 V AC output with a rated output current of 24 A. It features internal air cooling, optimized pulse sampling, integrated DRIVE-CLiQ communication, and support for Extended Safety Integrated functions, making it ideal for machine tools, robotics, packaging equipment, material handling systems, and multi-axis automation applications.

Key Specifications

The official Siemens product description specifies: “SINAMICS S120 Single Motor Module, Input: DC 600V, Output: 3AC 400V, 24A, Frame Size: Booksize D-Type, Internal Air Cooling, Optimized Pulse Sample and Support of the Extended Safety Integrated Functions, incl. DRIVE-CLiQ Cable.”

Description

The Siemens 6SL3120-1TE22-4AD0 SINAMICS S120 Single Motor Module is a compact and powerful drive module designed for demanding industrial motion-control systems. Featuring a 600 V DC link input, 400 V AC three-phase output, and 24 A rated current, it delivers precise motor control, high dynamic performance, and reliable operation. The Booksize D-Type design optimizes cabinet space, while integrated DRIVE-CLiQ communication enables rapid commissioning, diagnostics, and seamless integration within SINAMICS S120 drive systems. Advanced Extended Safety Integrated functions and efficient internal air cooling ensure dependable operation in CNC machinery, robotics, packaging equipment, assembly systems, and automated manufacturing environments.
