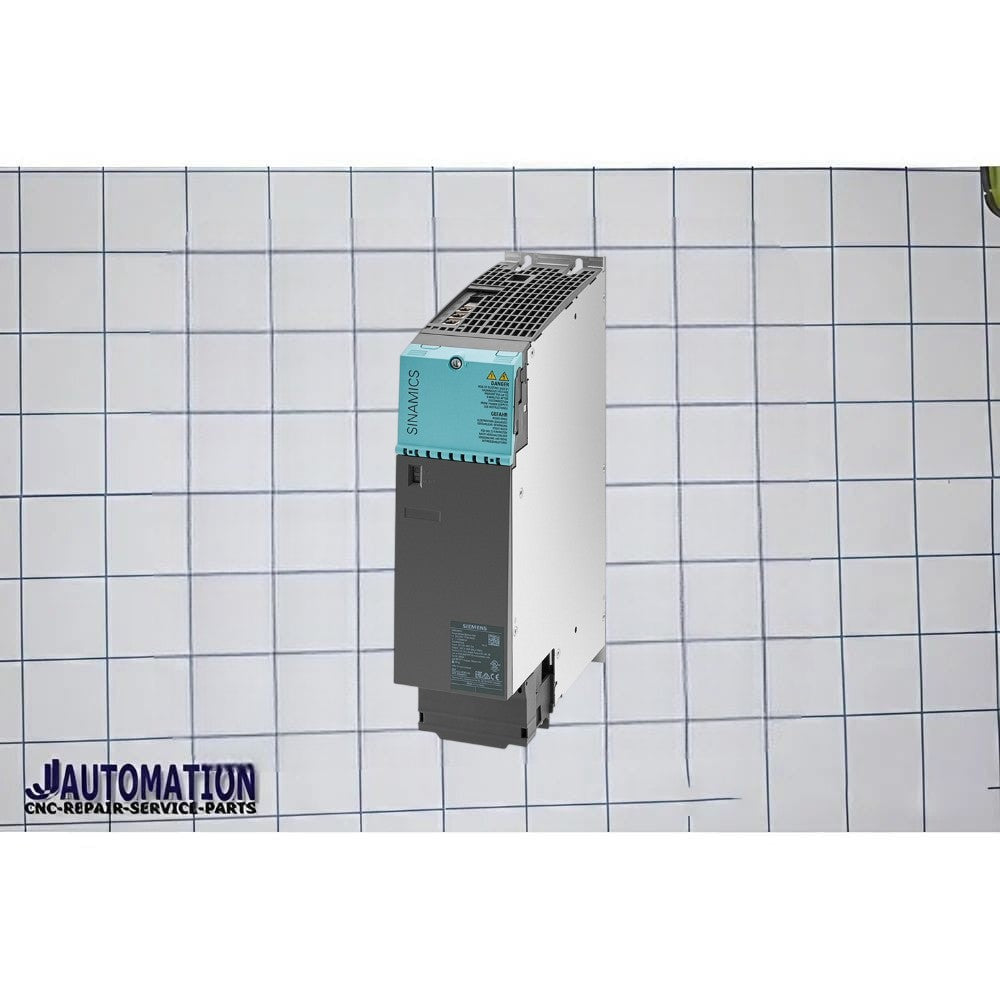

Siemens 6SL3120-1TE23-0AC0 – Description
6SL3120-1TE23-0AC0 is a Siemens SINAMICS S120 Single Motor Module in Booksize C-Type format, designed for high-performance servo and vector-control applications. The module operates from a DC 600 V link supply and provides a 3-phase 400 V AC output with a rated current of 30 A. It features internal air cooling, optimized pulse sampling, integrated DRIVE-CLiQ communication, and support for Extended Safety Integrated functions, making it ideal for machine tools, robotics, packaging systems, material handling equipment, and multi-axis automation applications.
Key Specifications
| Parameter | Value |
|---|---|
| Product Number | 6SL3120-1TE23-0AC0 |
| Product Family | SINAMICS S120 |
| Module Type | Single Motor Module |
| Frame Size | Booksize C-Type |
| Input Voltage | DC 510–720 V (Nominal DC 600 V) |
| Output Voltage | 3 AC 400 V |
| Rated Output Current | 30 A |
| Base Load Current | 25.5 A |
| DC Link Current | 36 A |
| Rated Power | 16 kW |
| Cooling Method | Internal Air Cooling |
| Communication Interface | DRIVE-CLiQ |
| Safety Functions | Extended Safety Integrated |
| Protection Class | IP20 |
| Included Accessory | DRIVE-CLiQ Cable Included |
Description
The Siemens 6SL3120-1TE23-0AC0 SINAMICS S120 Single Motor Module is a compact and powerful drive module engineered for demanding industrial motion-control systems. Featuring a 600 V DC link input, 400 V AC three-phase output, and 30 A rated current, it delivers precise motor control and outstanding dynamic performance. The Booksize C-Type design minimizes cabinet space requirements, while integrated DRIVE-CLiQ connectivity enables fast commissioning, diagnostics, and seamless integration within SINAMICS S120 drive systems. Advanced Safety Integrated functions and efficient internal air cooling ensure reliable operation in CNC machinery, robotics, packaging equipment, printing systems, and automated production environments.
