Siemens 6SL3120-1TE24-5AC0 – Description

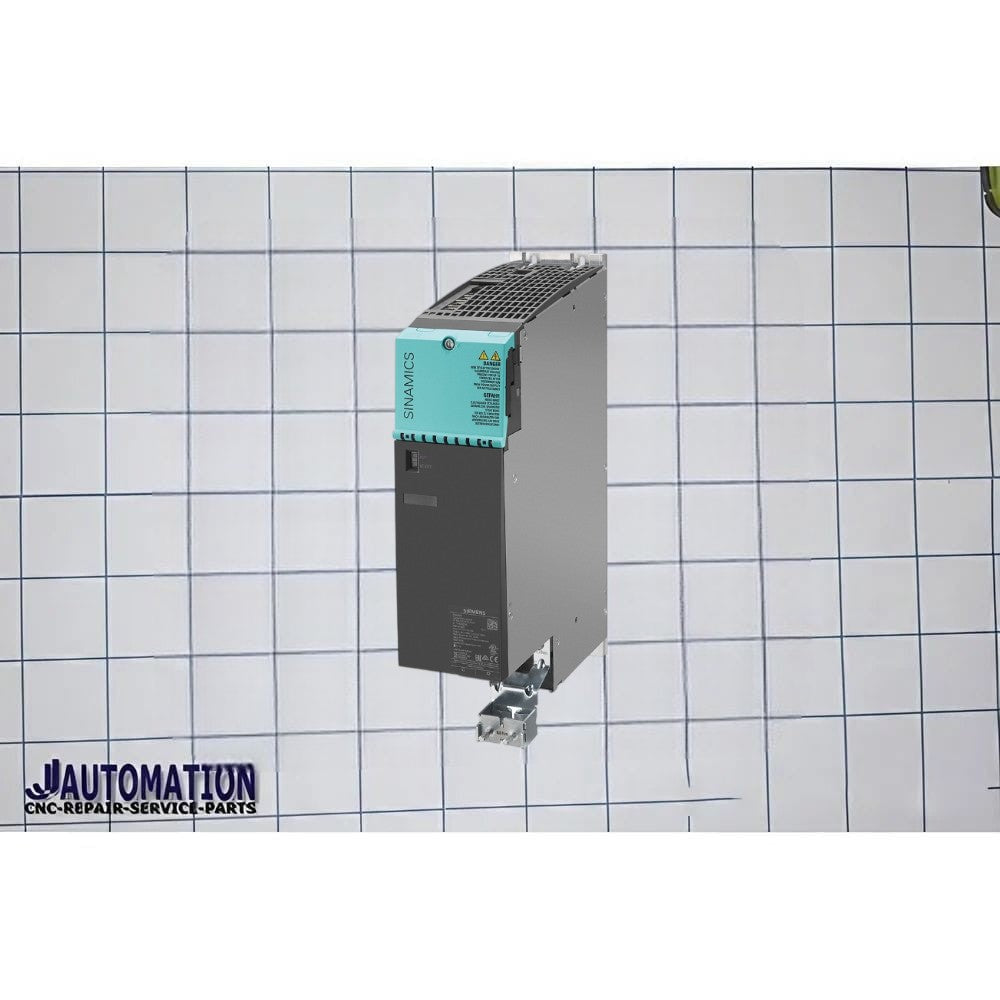

6SL3120-1TE24-5AC0 is a Siemens SINAMICS S120 Single Motor Module in Booksize C-Type format, designed for demanding servo and vector-drive applications. The module operates from a DC 600 V link supply and delivers a 3-phase 400 V AC output with a rated output current of 45 A. It features internal air cooling, optimized pulse sampling, integrated DRIVE-CLiQ communication, and support for Extended Safety Integrated functions, making it ideal for machine tools, robotics, packaging systems, material handling equipment, and multi-axis automation applications.
Key Specifications
| Parameter | Value |
|---|---|
| Product Number | 6SL3120-1TE24-5AC0 |
| Product Family | SINAMICS S120 |
| Module Type | Single Motor Module |
| Frame Size | Booksize C-Type |
| Input Voltage | DC 510–720 V (Nominal DC 600 V) |
| Output Voltage | 3 AC 400 V |
| Rated Output Current | 45 A |
| Base Load Current | 38 A |
| Peak Output Current | 90 A |
| S6 Duty Current (40%) | 60 A |
| DC Link Current | 54 A |
| Rated Pulse Frequency | 4 kHz (up to 16 kHz with derating) |
| Cooling Method | Internal Air Cooling |
| Communication Interface | DRIVE-CLiQ |
| Safety Functions | Extended Safety Integrated (SIL 2 / PL d) |
| Protection Class | IP20 |
| Dimensions (H × W × D) | 380 × 100 × 270 mm (approx.) |
Description
The Siemens 6SL3120-1TE24-5AC0 SINAMICS S120 Single Motor Module is a high-performance drive module engineered for precision motion-control applications. Featuring a 600 V DC link input, 400 V AC three-phase output, and 45 A rated current, it delivers reliable motor control and excellent dynamic performance in demanding industrial environments. The compact Booksize C-Type design optimizes control cabinet space, while integrated DRIVE-CLiQ communication enables rapid commissioning, diagnostics, and seamless integration within SINAMICS S120 drive systems. Advanced Safety Integrated functions, optimized pulse sampling, and efficient internal air cooling ensure dependable operation in CNC machinery, robotics, packaging equipment, printing systems, and automated production lines.
