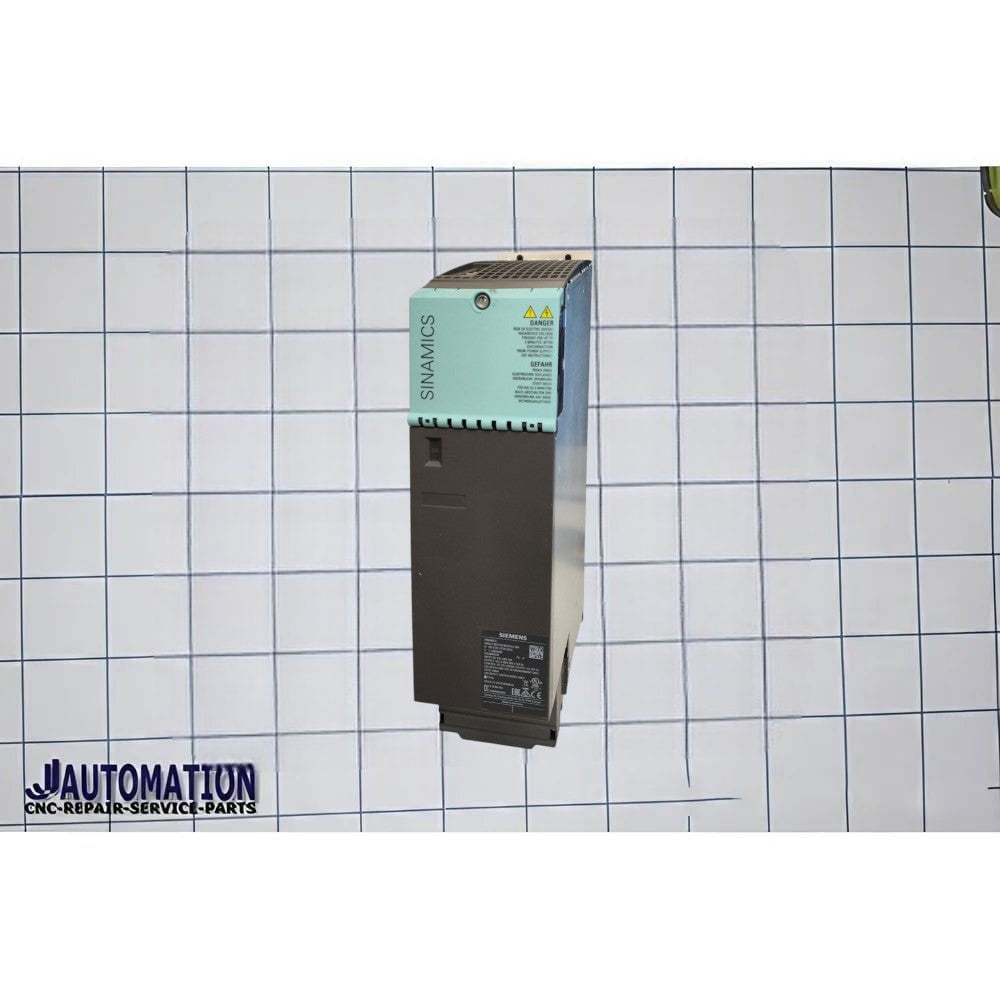

Siemens 6SL3120-1TE26-0AC0 – Description
6SL3120-1TE26-0AC0 is a Siemens SINAMICS S120 Single Motor Module in Booksize C-Type format, engineered for high-performance servo and vector-control applications. The module operates from a DC 600 V link supply and delivers a 3-phase 400 V AC output with a rated output current of 60 A. It features internal air cooling, optimized pulse sampling, integrated DRIVE-CLiQ communication, and support for Extended Safety Integrated functions, making it ideal for machine tools, robotics, packaging systems, material handling equipment, printing machinery, and multi-axis automation systems.
Key Specifications
| Parameter | Value |
|---|---|
| Product Number | 6SL3120-1TE26-0AC0 |
| Product Family | SINAMICS S120 |
| Module Type | Single Motor Module |
| Frame Size | Booksize C-Type |
| Input Voltage | DC 600 V (DC Link 510–720 V) |
| Output Voltage | 3 AC 400 V |
| Rated Output Current | 60 A |
| Cooling Method | Internal Air Cooling |
| Communication Interface | DRIVE-CLiQ |
| Safety Functions | Extended Safety Integrated |
| Protection Class | IP20 |
| Operating Temperature | 0 to 40°C |
| Weight | Approx. 8.6 kg |
The module is specified as a SINAMICS S120 Single Motor Module with 600 VDC input, 400 VAC output, 60 A rating, Booksize C-Type construction, internal air cooling, and integrated DRIVE-CLiQ cable.
Description
The Siemens 6SL3120-1TE26-0AC0 SINAMICS S120 Single Motor Module is a powerful motion-control drive module designed for demanding industrial automation applications. Featuring a 600 V DC link input, 400 V AC three-phase output, and 60 A rated current, it delivers precise motor control and outstanding dynamic performance. The compact Booksize C-Type design helps optimize cabinet space, while integrated DRIVE-CLiQ communication enables rapid commissioning, diagnostics, and seamless integration within SINAMICS S120 drive systems. Advanced Extended Safety Integrated functions and efficient internal air cooling ensure reliable operation in CNC machinery, robotics, packaging equipment, material handling systems, and automated production lines.
