Siemens 6SL3120-1TE13-0AD0 – Description

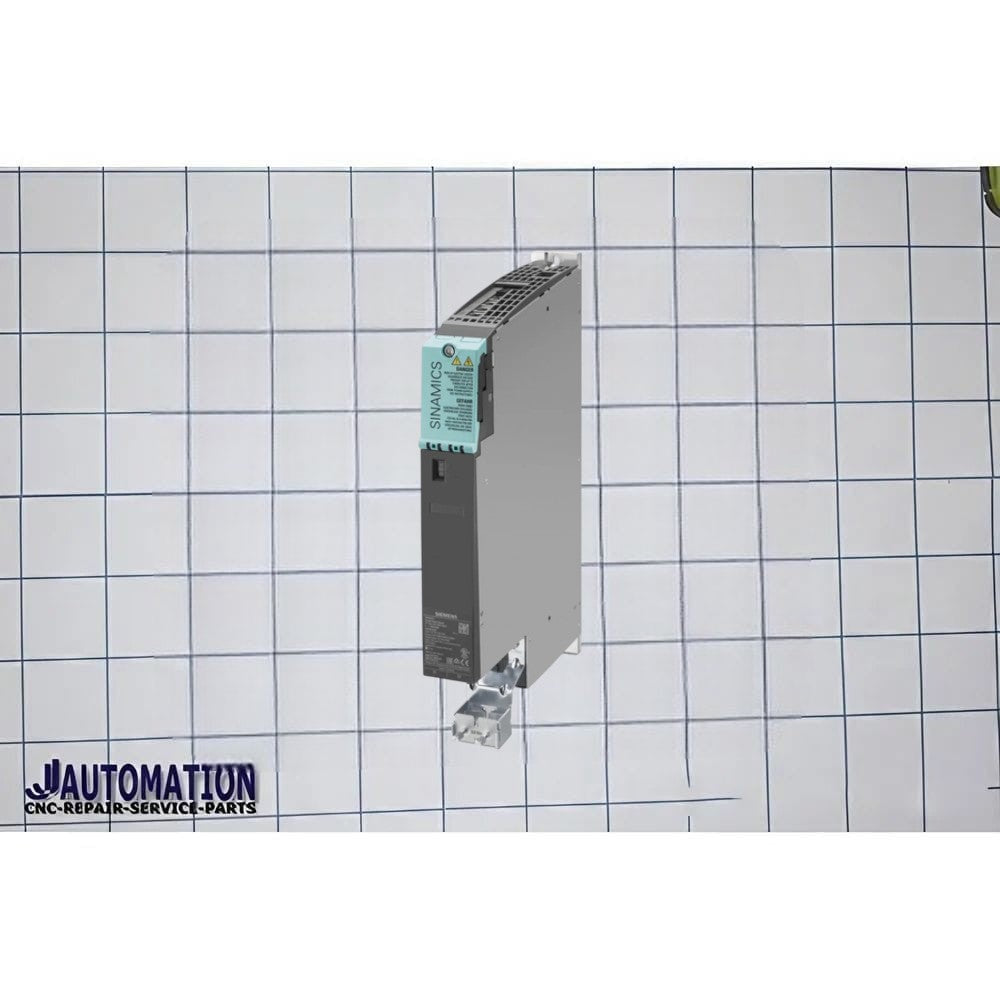

6SL3120-1TE13-0AD0 is a Siemens SINAMICS S120 Single Motor Module in Booksize D-Type format, designed for precision servo and motion-control applications. The module operates from a DC 600 V link supply and delivers a 3-phase 400 V AC output with a rated output current of 3 A. It features internal air cooling, optimized pulse sampling, integrated DRIVE-CLiQ communication, and support for Extended Safety Integrated functions, making it suitable for compact servo axes, packaging machinery, robotics, assembly systems, and other high-precision automation applications.
Key Specifications
| Parameter | Value |
|---|---|
| Product Number | 6SL3120-1TE13-0AD0 |
| Product Family | SINAMICS S120 |
| Module Type | Single Motor Module |
| Frame Size | Booksize D-Type |
| Input Voltage | DC 510–720 V (Nominal DC 600 V) |
| Output Voltage | 3 AC 400 V |
| Rated Output Current | 3 A |
| Base Load Current | 2.6 A |
| Peak Output Current | 9 A |
| S6 Duty Current (40%) | 4 A |
| DC Link Current | 3.6 A |
| Rated Pulse Frequency | 4 kHz |
| Communication Interface | DRIVE-CLiQ |
| Cooling Method | Internal Air Cooling |
| Protection Class | IP20 |
| Weight | Approx. 4.6 kg |
| Safety Functions | Extended Safety Integrated (SIL 2 / PL d) |
Description
The Siemens 6SL3120-1TE13-0AD0 SINAMICS S120 Single Motor Module is a compact, high-performance drive module engineered for precise motion-control applications. Featuring a 600 V DC link input, 400 V AC three-phase output, and 3 A rated output current, it provides accurate and reliable motor control for demanding industrial environments. The Booksize D-Type design minimizes cabinet space requirements, while integrated DRIVE-CLiQ connectivity enables fast commissioning, diagnostics, and seamless integration within SINAMICS S120 drive systems. Advanced Extended Safety Integrated functions and efficient internal air cooling ensure dependable operation in robotics, machine tools, packaging equipment, assembly systems, and automated production machinery.
