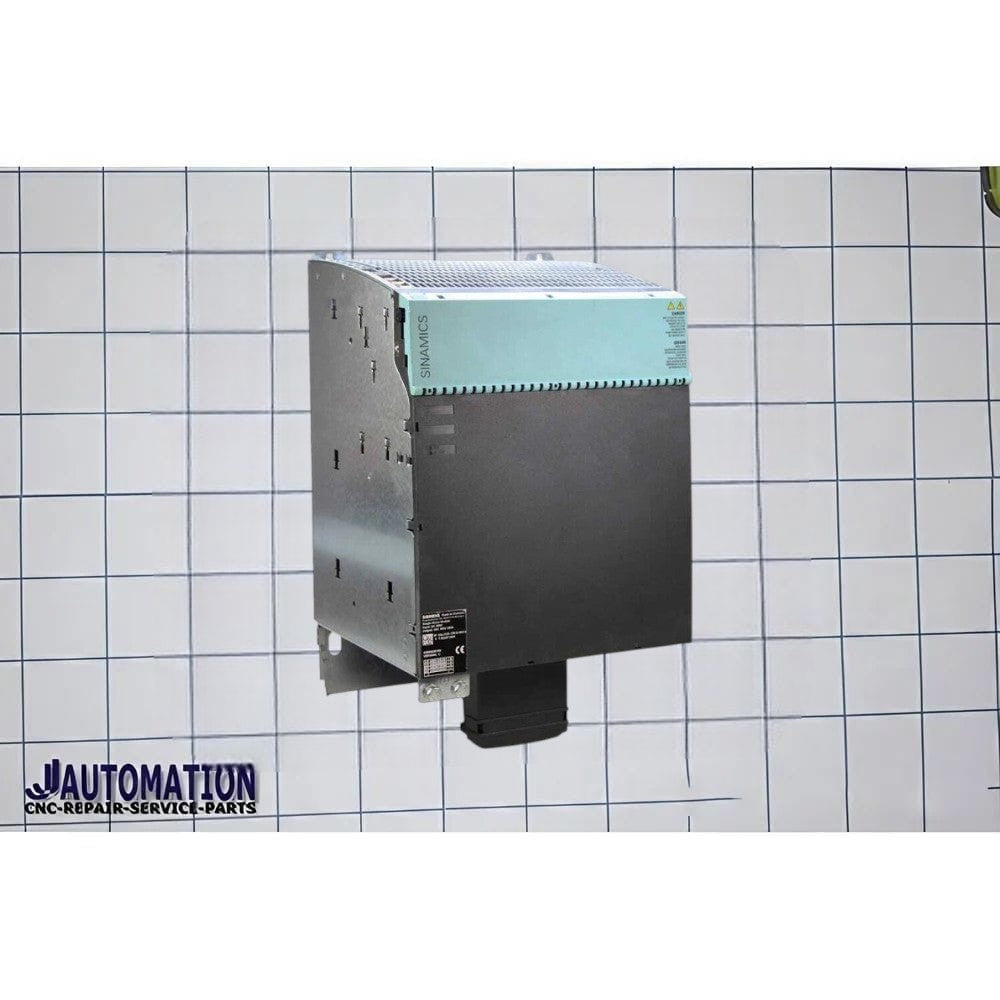

Siemens 6SL3120-1TE32-0AA4 – Description
6SL3120-1TE32-0AA4 is a Siemens SINAMICS S120 Single Motor Module designed for high-power motion control and servo drive applications. Operating from a DC 600 V link supply, the module delivers a 3-phase 400 V AC output with a rated output current of 200 A (140 A at 8 kHz operation) and a rated power of approximately 107 kW. It features a Booksize construction, internal air cooling, optimized pulse patterns, integrated DRIVE-CLiQ connectivity, and support for Extended Safety Integrated functions, making it ideal for heavy-duty machine tools, metal processing equipment, material handling systems, and large-scale industrial automation applications.
Key Specifications
| Parameter | Value |
|---|---|
| Product Number | 6SL3120-1TE32-0AA4 |
| Product Family | SINAMICS S120 |
| Module Type | Single Motor Module |
| Input Voltage | DC 510–720 V (Nominal DC 600 V) |
| Output Voltage | 3 AC 400 V |
| Rated Output Current | 200 A |
| Base Load Current (8 kHz) | 140 A |
| Maximum Output Current | 282 A |
| Rated Power | 107 kW |
| Frame Size | Booksize |
| Cooling Method | Internal Air Cooling |
| Communication Interface | DRIVE-CLiQ |
| Safety Functions | Extended Safety Integrated |
| Protection Class | IP20 |
| Dimensions (W × H × D) | 300 × 380 × 270 mm |
| Weight | Approx. 21 kg |
| Included Accessory | DRIVE-CLiQ Cable Included |
Description
The Siemens 6SL3120-1TE32-0AA4 SINAMICS S120 Single Motor Module is a high-performance drive power module engineered for demanding industrial automation and motion-control systems. Featuring a 600 V DC link input, 400 V AC output, 200 A rated current capacity, and 107 kW power rating, it provides exceptional motor performance and precise control for high-power applications. The compact Booksize design optimizes control cabinet space, while integrated DRIVE-CLiQ communication enables fast commissioning, diagnostics, and seamless system integration. Advanced Safety Integrated functions and efficient internal air cooling ensure reliable operation in CNC machinery, heavy material handling equipment, printing systems, and multi-axis production environments.
