Description

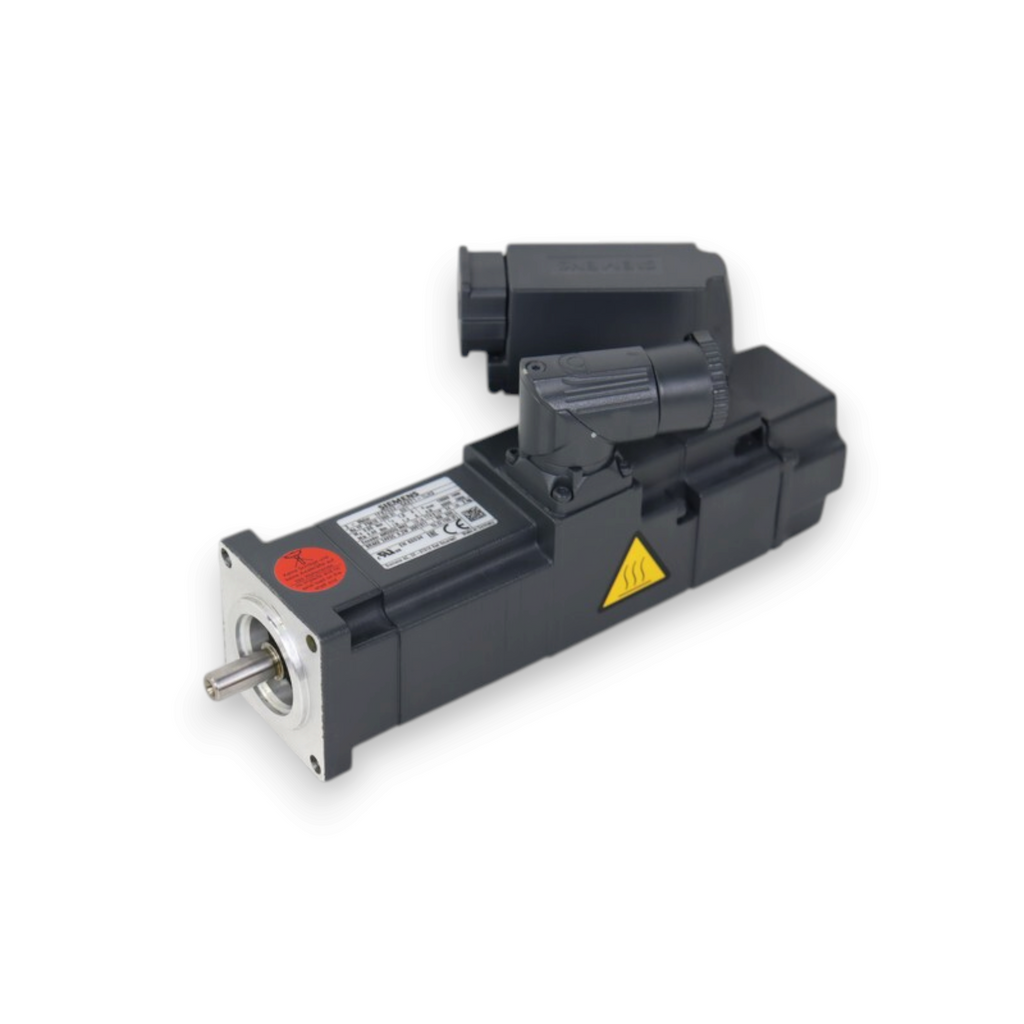

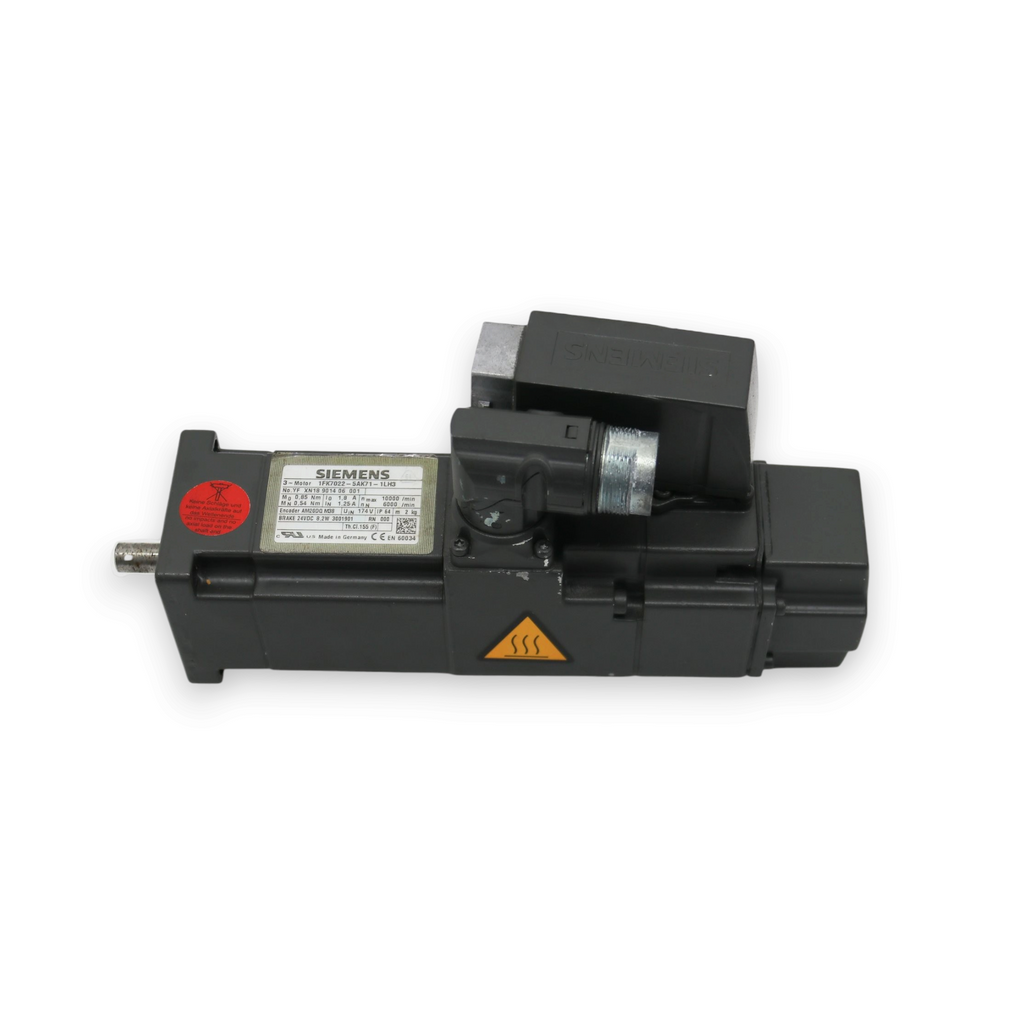

The Siemens 1FK7022-5AK71-1LH3 is a SIMOTICS S-1FK7 Compact synchronous servo motor rated 0.85 Nm static torque and 0.38 kW at 6000 rpm. It is naturally cooled, fitted with a holding brake and a 20-bit + 12-bit multiturn absolute encoder (AM20DQ) with DRIVE-CLiQ interface for direct connection to SINAMICS S120 / S110 drives.
- Order number: 1FK7022-5AK71-1LH3
- Series: SIMOTICS S-1FK7 Compact
- Static torque M0: 0.85 Nm (100 K)
- Rated power: 0.38 kW
- Rated speed: 6000 rpm
- Cooling: natural cooling
- Type of construction: IM B5 flange (IM V1, IM V3)
- Connection: power / signal connectors, rotatable by 270°
- Encoder: absolute 20-bit + 12-bit multiturn, DRIVE-CLiQ (AM20DQ); 10% derating due to absolute encoder
- Shaft: plain shaft, tolerance N
- Brake: with holding brake
- Degree of protection: IP64
- Paint finish: RAL 7016 anthracite grey
- Condition options: New / Used / Refurbished — tested before dispatch
