Description

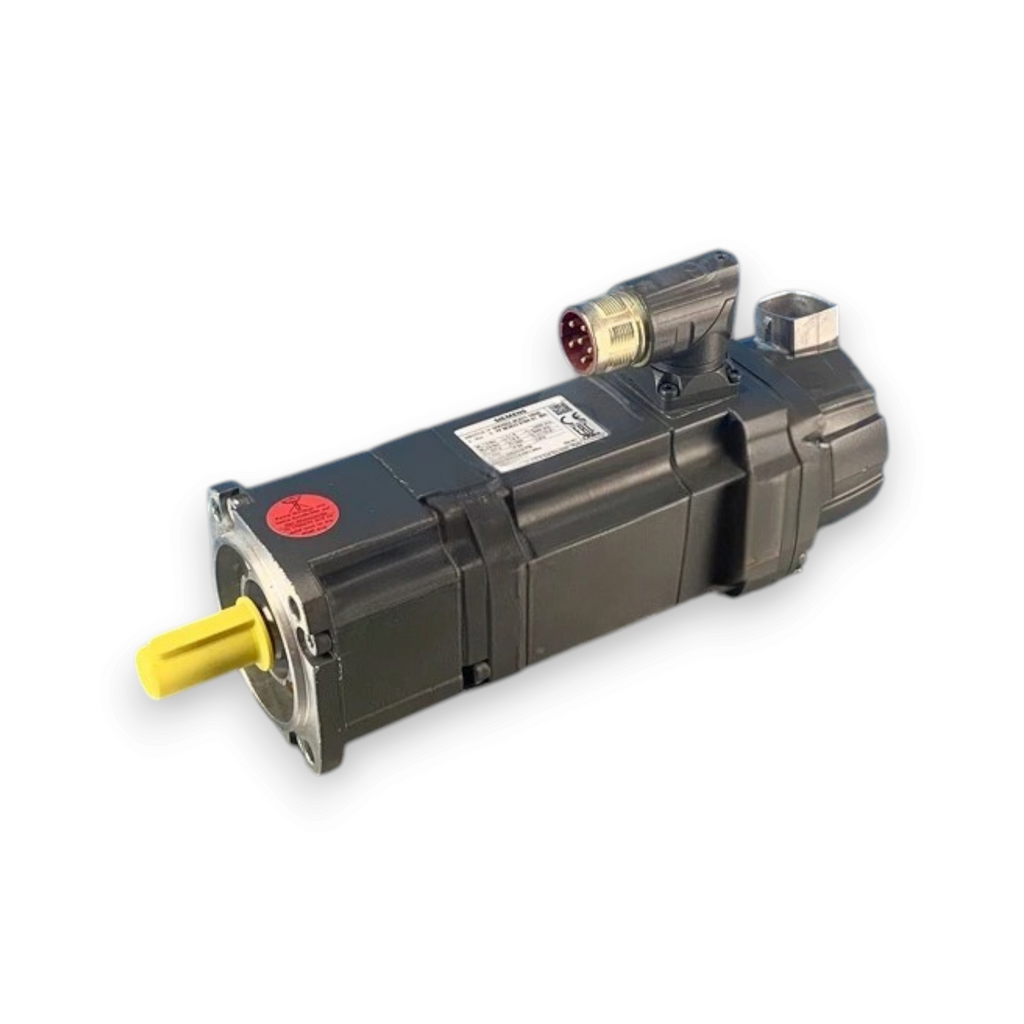

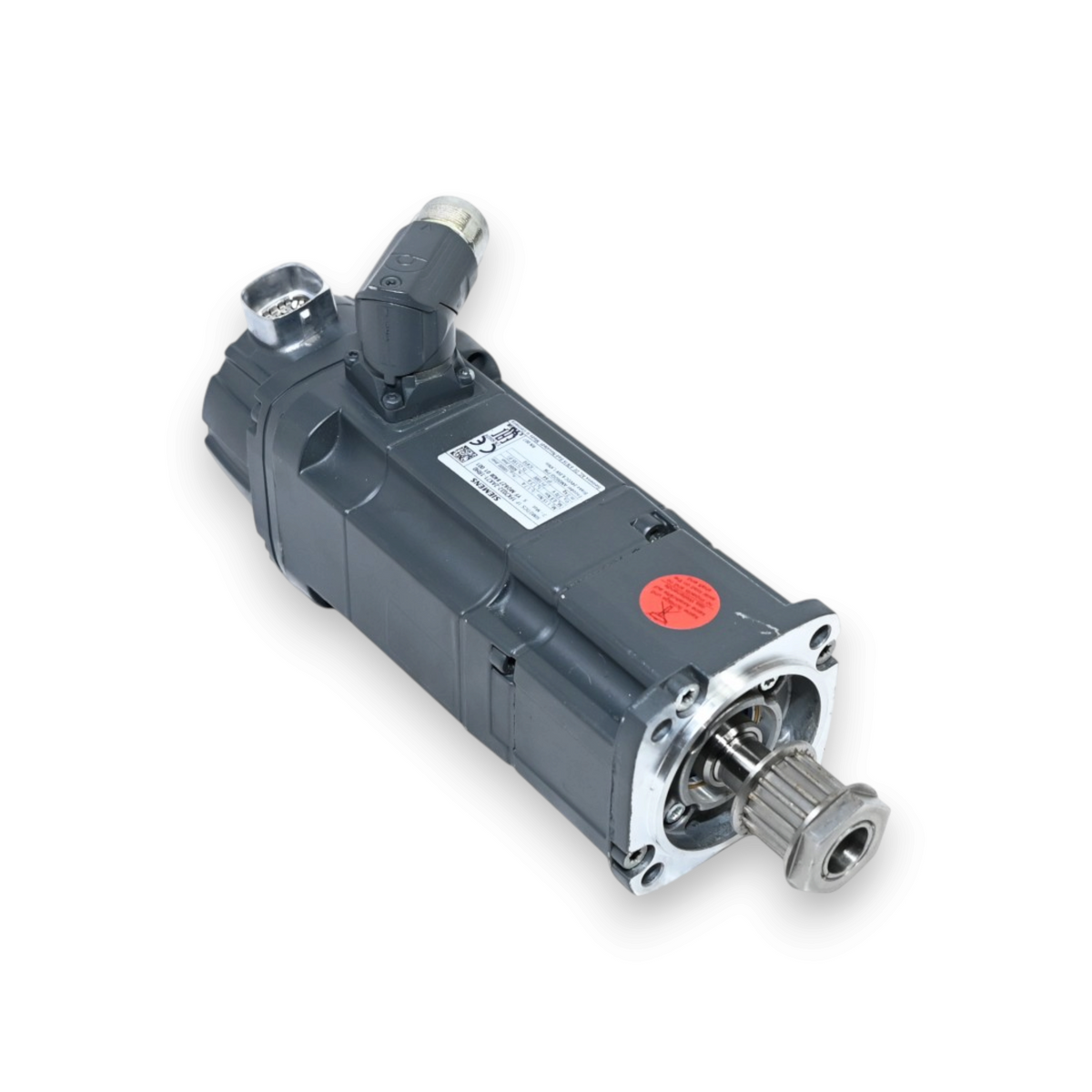

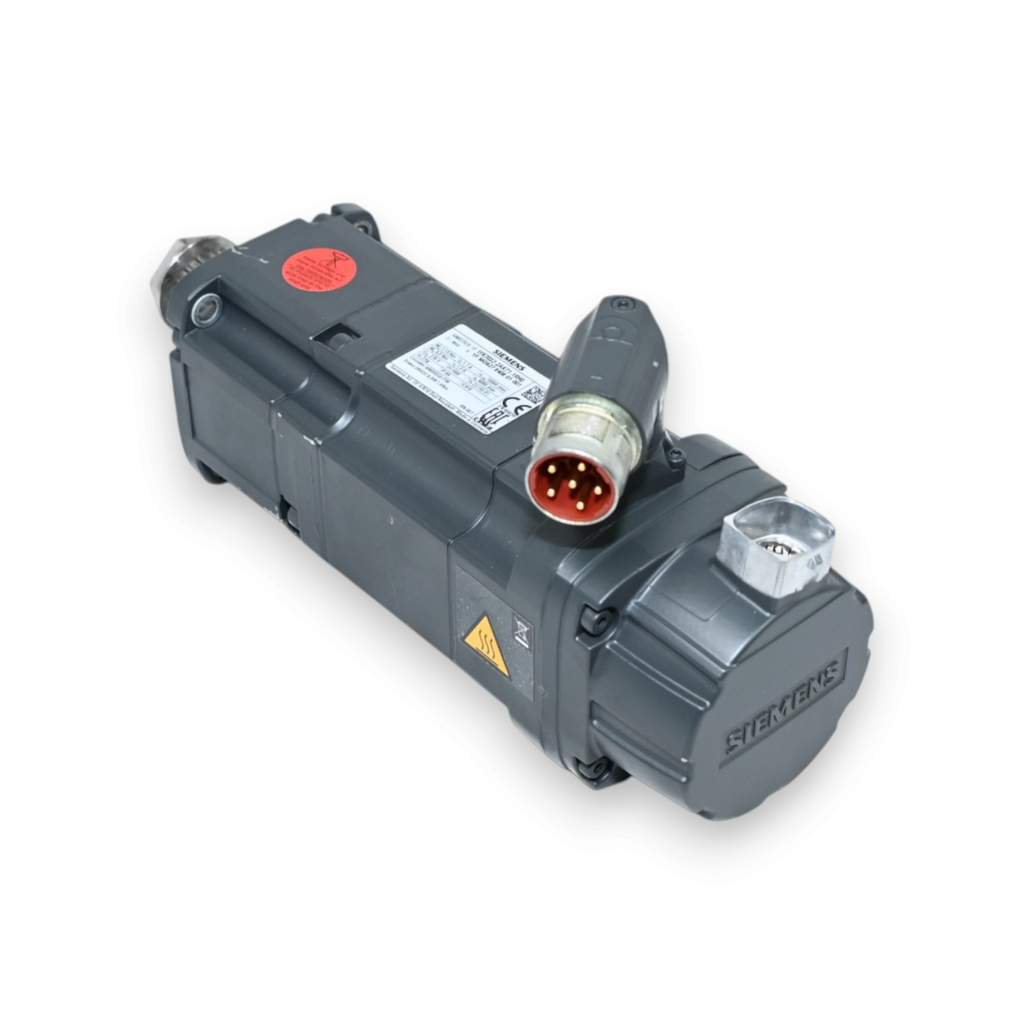

The Siemens 1FK7032-2AK71-1RH0 is a SIMOTICS S-1FK7 Compact (CT) synchronous servo motor rated 1.15 Nm static torque and 0.5 kW at 6000 rpm. It is naturally cooled, fitted with a holding brake and a 20-bit + 12-bit multiturn absolute encoder (AM20DQI) with DRIVE-CLiQ interface for direct connection to SINAMICS S120 / S110 drives.
- Order number: 1FK7032-2AK71-1RH0
- Series: SIMOTICS S-1FK7 Compact (1FK7-CT)
- Static torque M0: 1.15 Nm (100 K)
- Rated power: 0.5 kW
- Rated speed: 6000 rpm
- DC link voltage: 600 V
- Cooling: natural cooling
- Type of construction: IM B5 flange (IM V1, IM V3), Flange 1
- Connection: one rotatable power connector
- Encoder: absolute 20-bit + 12-bit multiturn, DRIVE-CLiQ (AM20DQI)
- Shaft: smooth (plain) shaft, tolerance N
- Brake: with holding brake
- Degree of protection: IP64
- Condition options: New / Used / Refurbished — tested before dispatch
Need this part? Get a quote today.
Call or WhatsApp +91 88022 12394 — we ship across India and worldwide. Repair and exchange options are also available for Siemens SIMOTICS and SINAMICS systems.
