Description

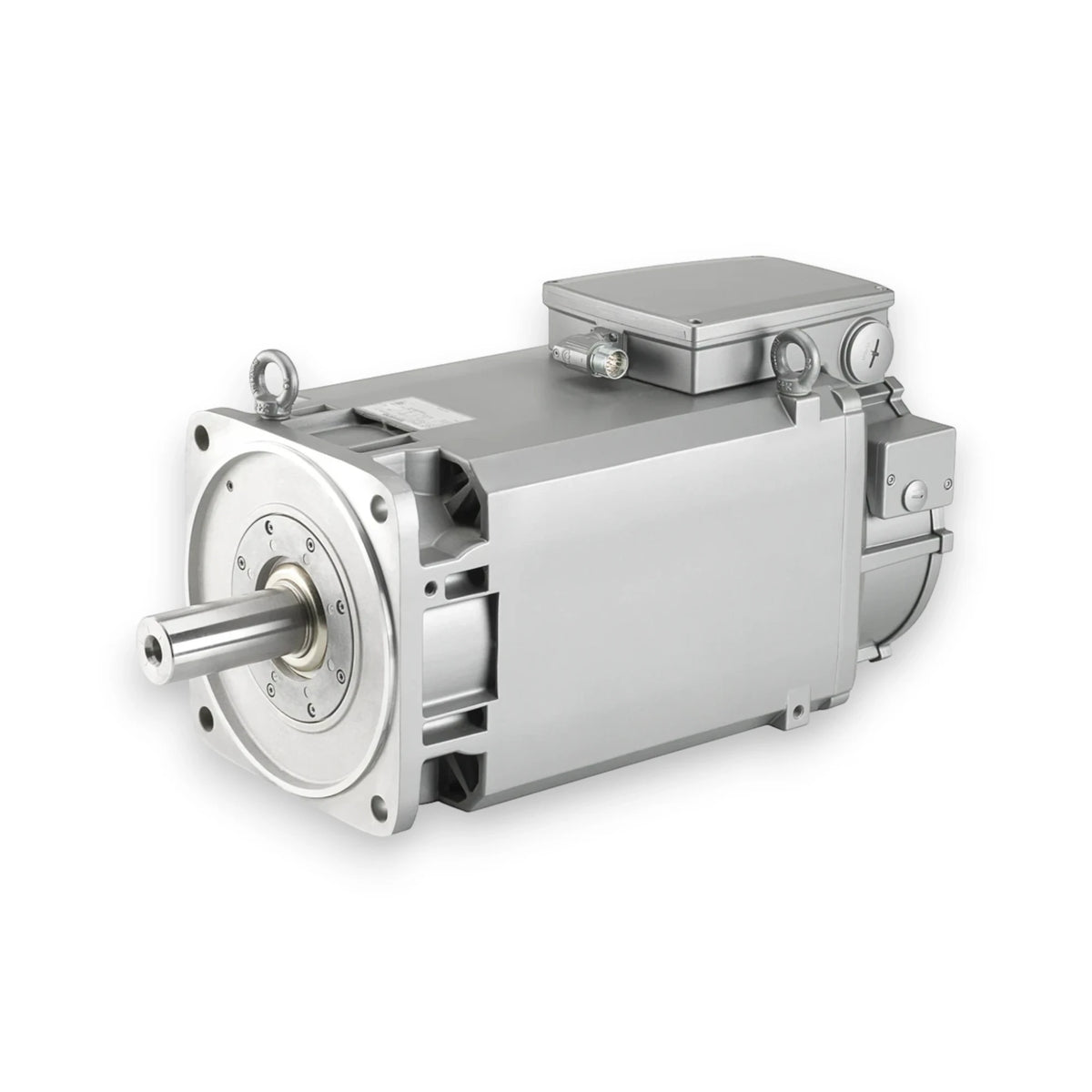

The 1PH8107-3FD02-0AC1-Z is a Siemens SIMOTICS M-1PH8 asynchronous (with holding brake) main spindle motor, shaft height 100, forced-ventilated, rated 6.3 kW at 1000 rpm, for use with SINAMICS S120 drive systems on SINUMERIK CNC machine tools (lathes, machining centres, grinders). Encoder: DRIVE-CLiQ absolute encoder 22-bit single-turn + 12-bit multi-turn. Available new and as tested used/refurbished units, 100% load tested before dispatch and supplied with warranty. We also repair and rewind 1PH8 spindle motors.
Specifications
- Part number: 1PH8107-3FD02-0AC1-Z
- Series: Siemens SIMOTICS M-1PH8 main / spindle motor, asynchronous (with holding brake)
- Shaft height: SH 100 (frame 1PH8107)
- Rated power: 6.3 kW at 400 V (Smart/Basic Line Module)
- Rated speed: 1000 rpm
- Rated torque: 60 Nm
- Rated current: 17.5 A
- Maximum speed: 9000 rpm
- Supply: 400 – 480 V 3 AC via SINAMICS S120 Motor Module
- Cooling: Forced ventilation, air flow DE to NDE, separately driven fan
- Degree of protection: IP55
- Encoder: DRIVE-CLiQ absolute encoder 22-bit single-turn + 12-bit multi-turn (AM22DQ)
- Type of construction: IM B5 (flange mounted)
- Shaft extension (DE): Plain shaft
- Bearing: Special bearing version (refer to Siemens data sheet)
- Power connection: Terminal box on top, cable entry NDE, signal connector left
- Insulation: temperature class 180 (H)
- Temperature sensor: KTY84 / Pt1000 (per version)
- Weight approx.: 73 kg (excluding brake)
- -Z: special version with additional option codes (confirm option codes when ordering)
- Condition: New or Used/Refurbished (select above)
