Description

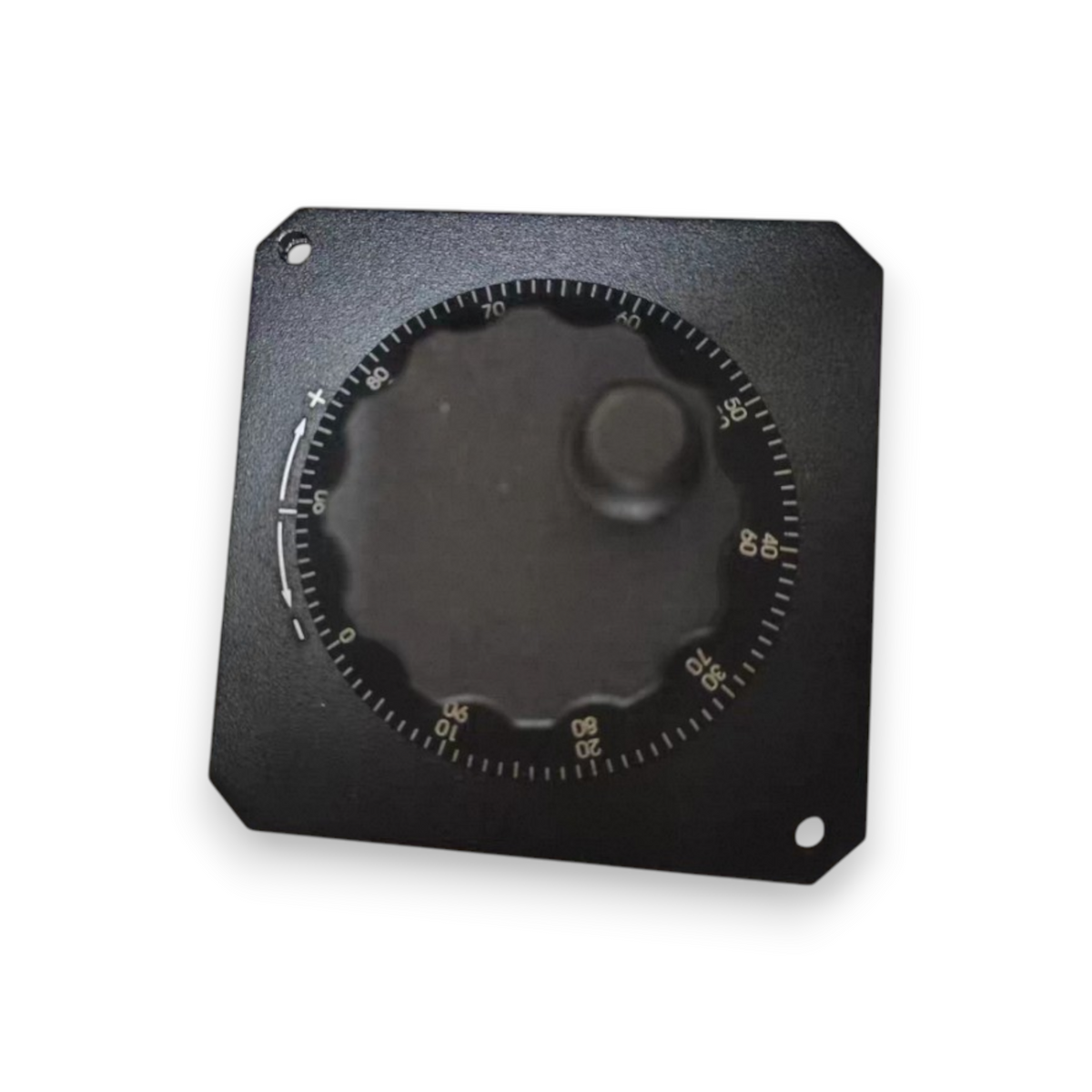

The 6FC9320-5DH01 is a genuine Siemens SINUMERIK electronic handwheel (manual pulse generator, MPG) for front-panel mounting, compact 76.2 × 76.2 mm size, operating at 24 V DC with HTL signal level. It lets the operator manually jog and position machine axes in fine increments alongside programmed operation and is used on SINUMERIK machine control panels and operator stations that provide a 24 V HTL handwheel input. Available new and as tested used/refurbished units, 100% checked before dispatch and supplied with warranty.
Specifications
- Part number: 6FC9320-5DH01
- Product family: SINUMERIK accessories, electronic handwheel
- Mounting: front panel mount
- Front panel size: 76.2 × 76.2 mm
- Operating voltage: 24 V DC
- Signal level: HTL
- Resolution: 100 pulses per revolution, magnetic latching detent
- Connection: via handwheel connector on the control panel / machine control panel interface
- Country of origin: Germany
- Compatible controls: SINUMERIK 808D, 828D, 840D sl and other controls or PLC inputs with 24 V HTL handwheel interface
- Condition: New or Used/Refurbished (select above)

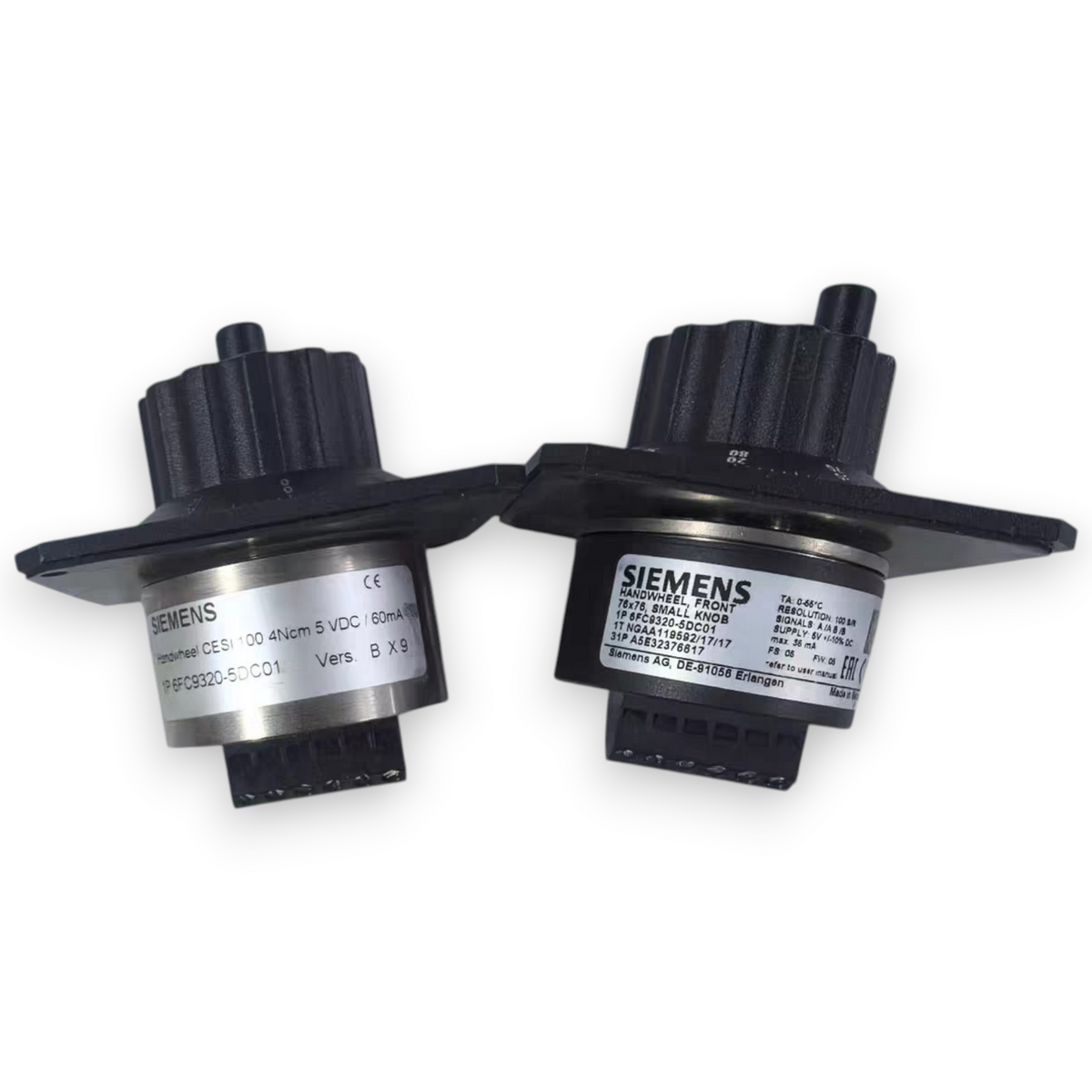

Related variants: 6FC9320-5DC01 (76.2 × 76.2 mm, 5 V RS422), 6FC9320-5DB01 (120 × 120 mm, 5 V RS422), 6FC9320-5DE02 (portable handheld unit with spiral cable).
