Description

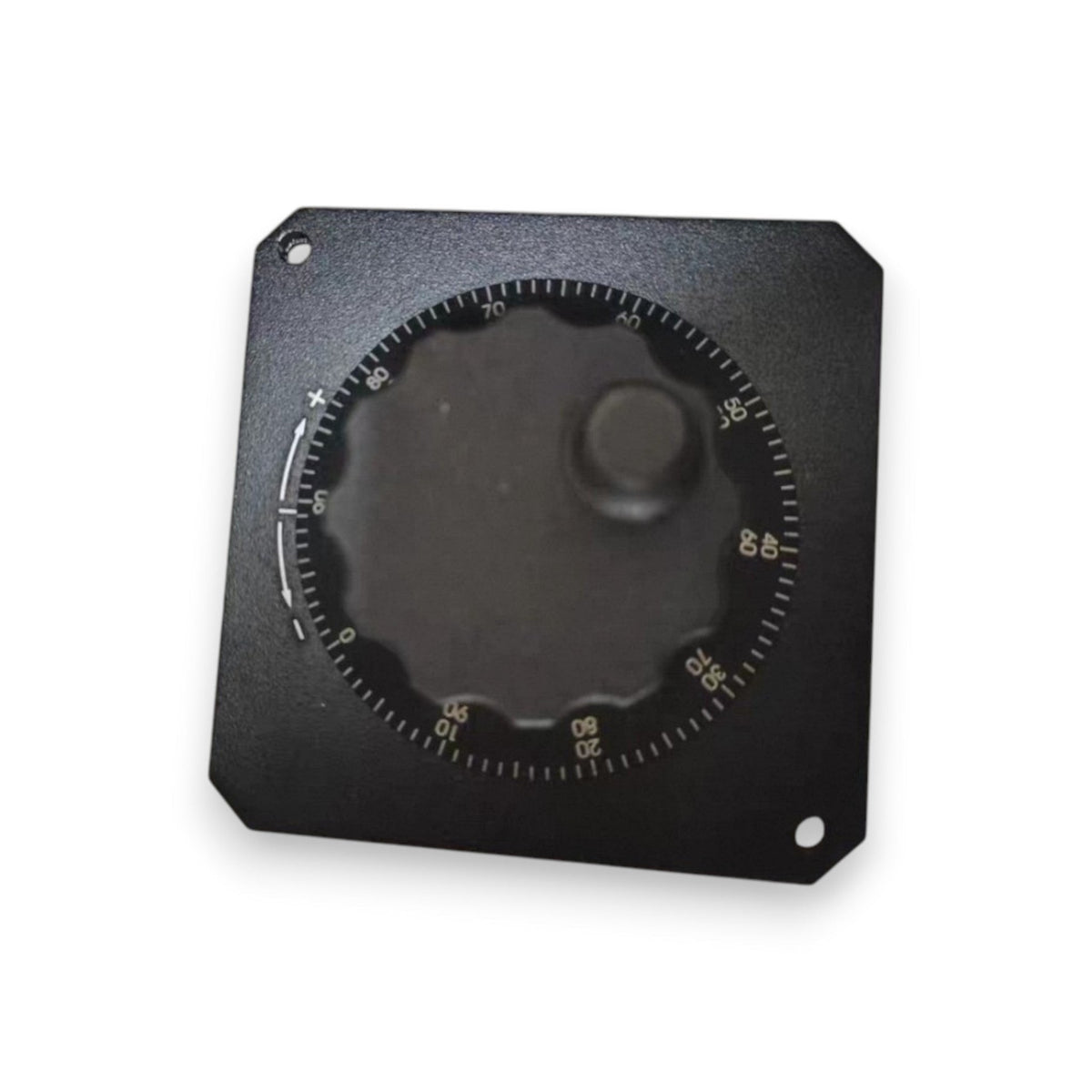

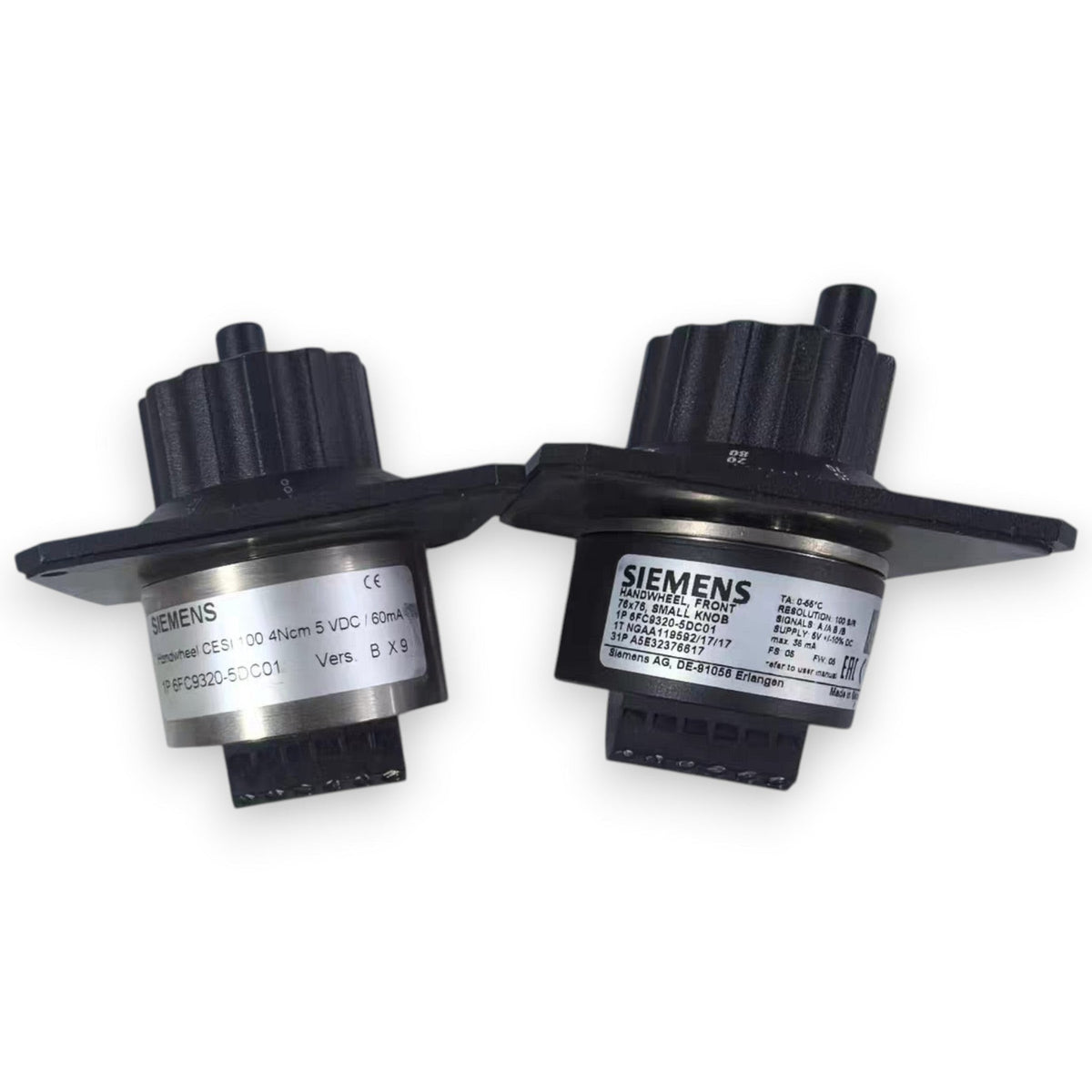

The 6FC9320-5DM00 is a genuine Siemens SINUMERIK electronic handwheel (manual pulse generator, MPG) with 5 V DC ±5% supply at 60 mA, RS422 (TTL) interface and 100 pulses per revolution. It is used for manual axis jogging and fine positioning on SINUMERIK 808D, 828D and 840D sl machine control panels and can be mounted with the optional three-point fixing adapter set 6FC9320-5DN00. Available new and as tested used/refurbished units, 100% checked before dispatch and supplied with warranty.
Specifications
- Part number: 6FC9320-5DM00
- Product family: SINUMERIK accessories, electronic handwheel
- Operating voltage: 5 V DC ±5 %
- Current consumption: 60 mA
- Interface: RS422 (TTL), differential
- Resolution: 100 pulses per revolution (100 I/rev), magnetic latching detent
- Mounting: panel mount; three-point fixing via adapter set 6FC9320-5DN00
- Connection: via handwheel connector on the control panel / PPU / machine control panel interface
- Compatible controls: SINUMERIK 808D, 828D, 840D sl / 840Di and other controls with RS422 handwheel input
- Condition: New or Used/Refurbished (select above)
Related handwheel variants: 6FC9320-5DB01 (120 × 120 mm, 5 V RS422), 6FC9320-5DC01 (76.2 × 76.2 mm, 5 V RS422), 6FC9320-5DH01 (76.2 × 76.2 mm, 24 V HTL), 6FC9320-5DF01 (without mounting plate/setting wheel), 6FC9320-5DM00 (handwheel 5 V RS422 100 I/rev), 6FC9320-5DN00 (three-point fixing adapter set), 6FC9320-5DE02 (portable handheld unit with spiral cable).
