Description
Description:

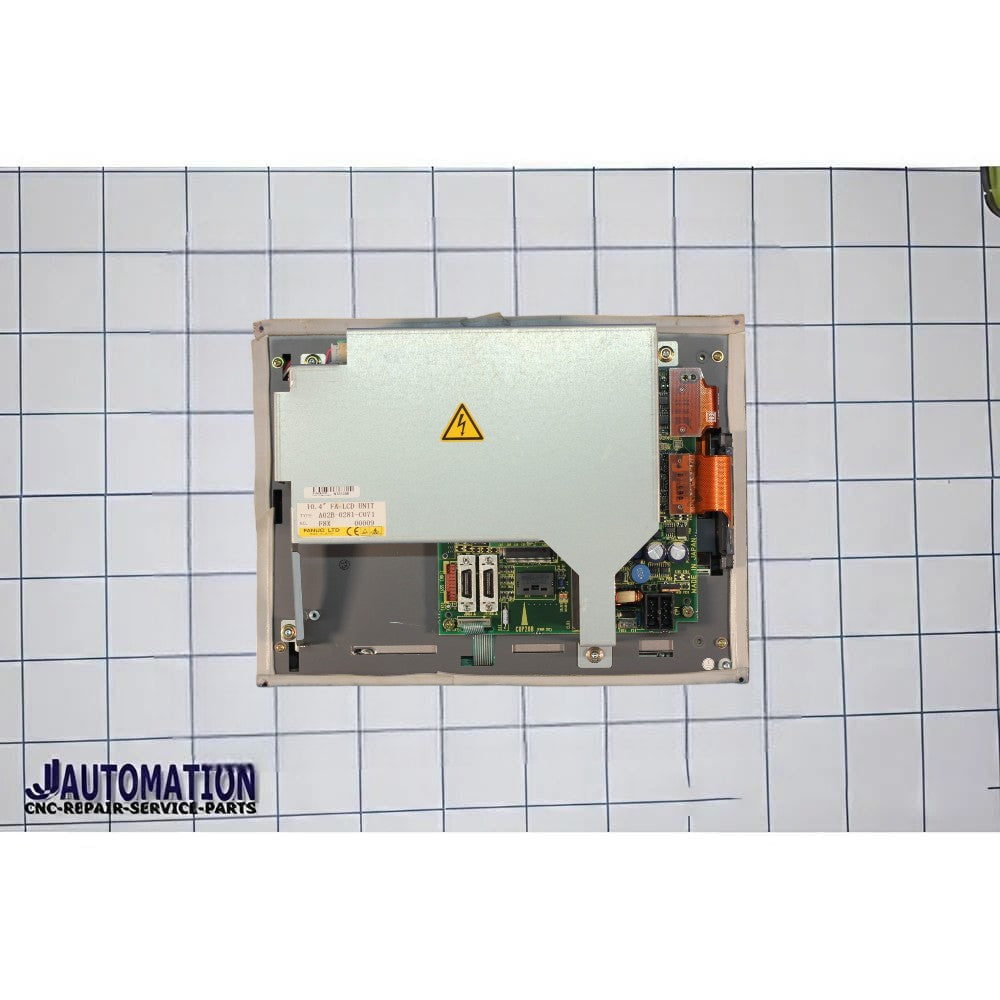

The A02B‑0281‑C071 is a 10.4-inch color LCD operator display used in industrial FANUC CNC machine control panels. It’s part of the A02B-0281 display series and provides a graphic interface with soft keys for machine operation and status visualization.
📌 Key Features
✔ 10.4″ Colour LCD Display — larger and more readable than older monochrome units.
✔ Graphics Capability — supports graphical CNC information, program display, and machine status.
✔ Soft Keys — buttons around the display let operators navigate menus directly.
✔ Standalone Panel Mount — designed to be part of the front control panel assembly on CNC systems.
✔ Not Touch-Enabled — display works with soft keys instead of touch input.
🧠 Function
This display is the main human-machine interface (HMI) for a FANUC CNC controller, showing operational data such as:
-
Machine coordinates
-
Active programs
-
Alarms and messages
-
Graphical program paths
-
Menu navigation screens
The soft keys let machine operators move through menus, change settings, and interact with the CNC system visually.
