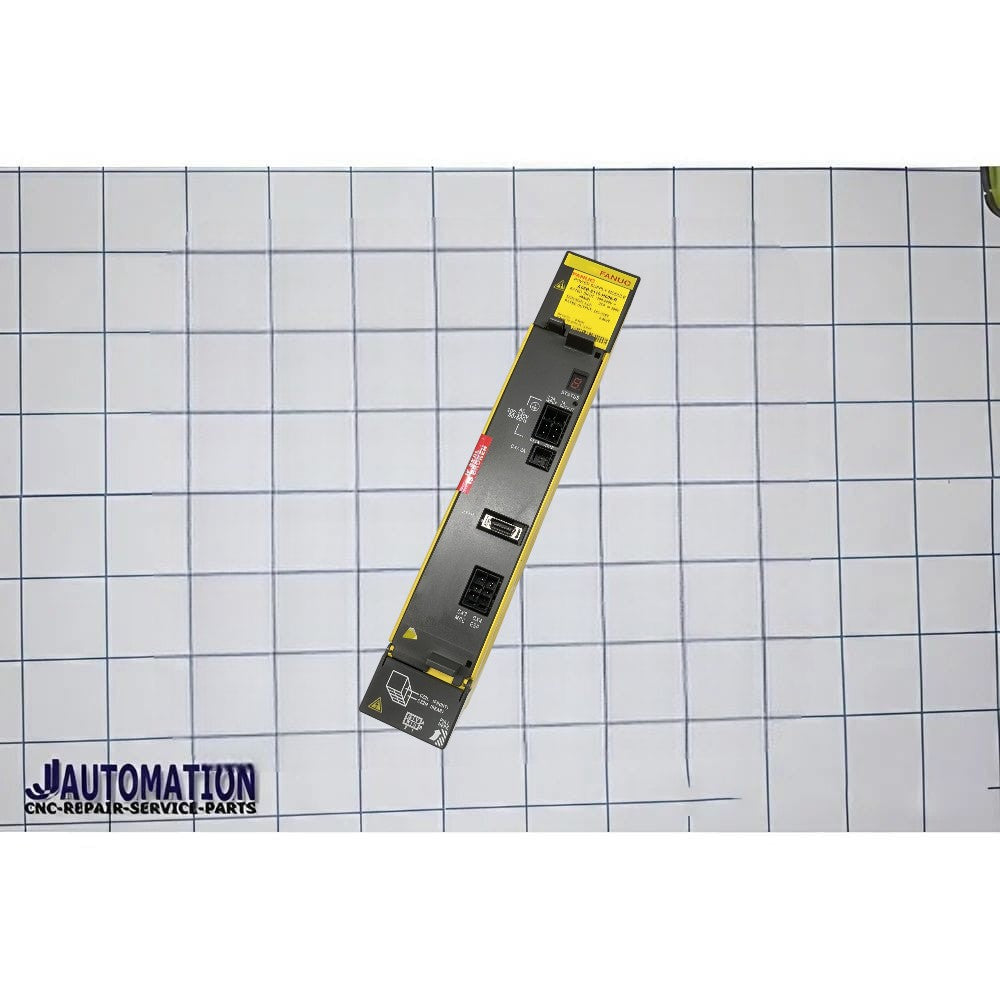

FANUC A06B-6110-C006 – Power Supply Module (αi Series) – Description
The FANUC A06B-6110-C006 is an ALPHA i Power Supply Module used in FANUC CNC and servo drive systems. It is designed to convert incoming AC power into a stable DC bus supply, which is then distributed to servo amplifiers and spindle modules for reliable machine operation.
This model belongs to the A06B-6110 series, which forms the core power backbone of FANUC CNC drive systems. These modules are widely used in CNC machining centers such as milling, turning, and automated production machines. They typically operate on 200–240V AC three-phase input and provide regulated DC output for stable system performance.
The “C006” variant is part of FANUC’s configuration/variant coding (often regional or version-specific) and is generally equivalent in function to PSM-5.5i class modules, designed for low-power CNC systems (~5.5 kW range). Modules in this category deliver consistent power to smaller servo and spindle setups while maintaining high efficiency and reliability.
Power supply modules in this series are critical because they feed DC bus voltage (~283–325V) to connected amplifiers, ensuring proper functioning of the entire CNC drive system.
Key Features
- Original FANUC ALPHA i Power Supply Module
- Model: A06B-6110-C006 (PSM-5.5i class equivalent)
- 200–240V AC three-phase industrial input
- Converts AC to stable DC bus voltage (~283–325V DC)
- Compact and efficient design for CNC cabinets
- Built-in protection: overcurrent, overvoltage, thermal
- Designed for continuous industrial operation
Applications
- CNC machining centers
- Milling and turning machines
- Small CNC systems and compact automation setups
- FANUC CNC systems (0i / 16i / 18i series and similar)
- Servo and spindle drive power distribution
Benefits
- Ensures stable and reliable power supply to drive modules
- Improves CNC system uptime and performance
- Protects servo and spindle amplifiers from electrical faults
- Energy-efficient solution for compact CNC machines
- Ideal for replacement, repair, and maintenance
Product Type
- CNC Power Supply Module (ALPHA i Series – Low Power)
