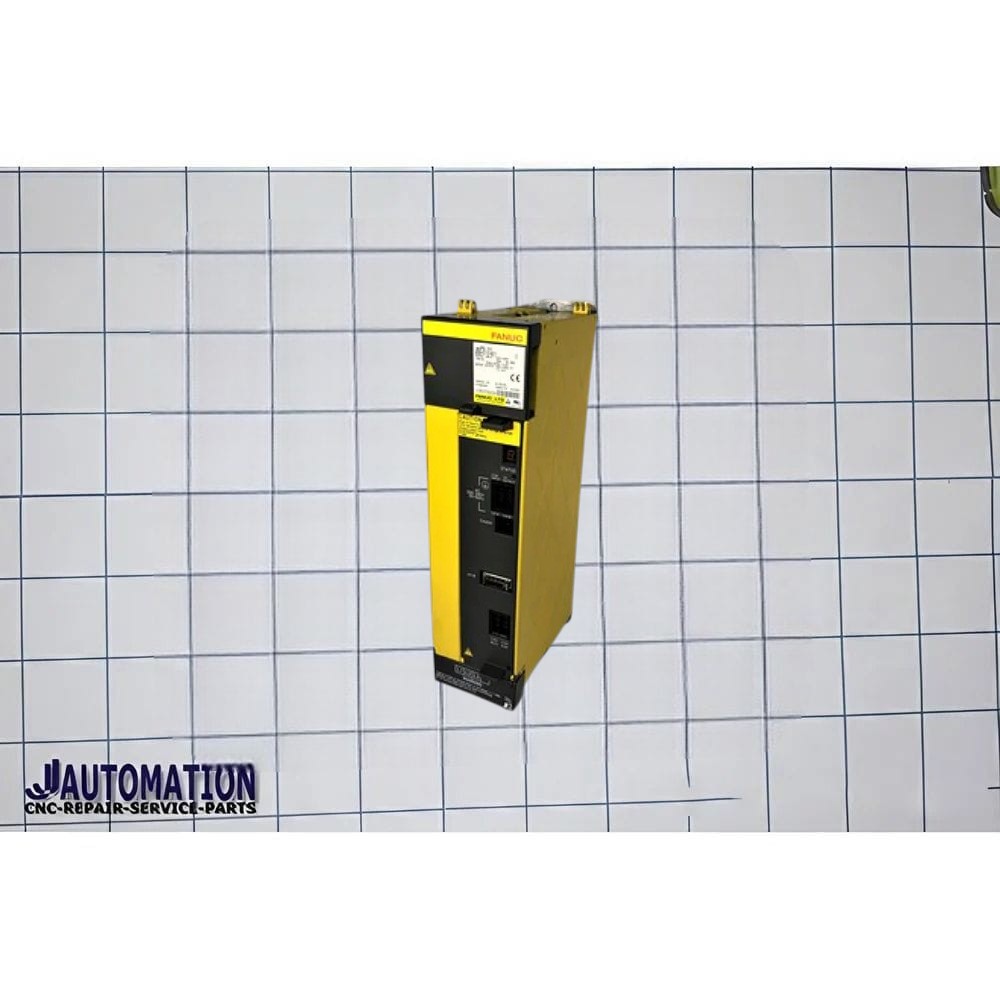

FANUC A06B-6110-C011 – Power Supply Module (PSM-11i Equivalent) – Description (Website Ready)
The FANUC A06B-6110-C011 is an ALPHA i Power Supply Module used in FANUC CNC and servo/spindle drive systems. It is designed to convert incoming AC power into a stable DC bus supply, ensuring reliable operation of connected servo amplifiers and spindle modules in CNC machines.
This model belongs to the A06B-6110 series, which forms the core power backbone of FANUC drive systems. It operates on 200–240V AC three-phase input and delivers regulated DC output to maintain stable system performance across industrial machining environments.
Variant Explanation (Important)
The “C011” version is typically a configuration/region-specific or revision variant of the standard:
➡️ A06B-6110-H011 (PSM-11i)
Functionally, both modules are equivalent in performance and application, with differences mainly in:
- Internal PCB revision
- Connector configuration or firmware
- Manufacturing or regional coding
Power & Technical Class
- Equivalent Model: PSM-11i (aiPS-11)
- Power Rating: ~13.2 kW class
- Input Voltage: 200–240V AC (3-phase)
- Output Voltage: ~283–339V DC
This makes it suitable for small to medium CNC machines with multiple servo axes and moderate spindle requirements.
Key Features
- Original FANUC ALPHA i Power Supply Module
- Model: A06B-6110-C011 (PSM-11i equivalent)
- Stable AC to DC power conversion for CNC drives
- Supports servo amplifiers and spindle modules
- Built-in protection: overvoltage, overcurrent, thermal
- Compact and reliable industrial design
- Designed for continuous CNC operation
Applications
- CNC machining centers
- Milling and turning machines
- FANUC CNC systems (0i / 16i / 18i / 21i series)
- Multi-axis servo and spindle drive systems
- Industrial automation setups
Benefits
- Ensures stable DC bus power for all drive modules
- Improves CNC system reliability and uptime
- Protects servo and spindle amplifiers from power issues
- Suitable for continuous production environments
- Ideal for replacement, repair, and maintenance
Product Type
- CNC Power Supply Module (ALPHA i Series – Medium Power)
