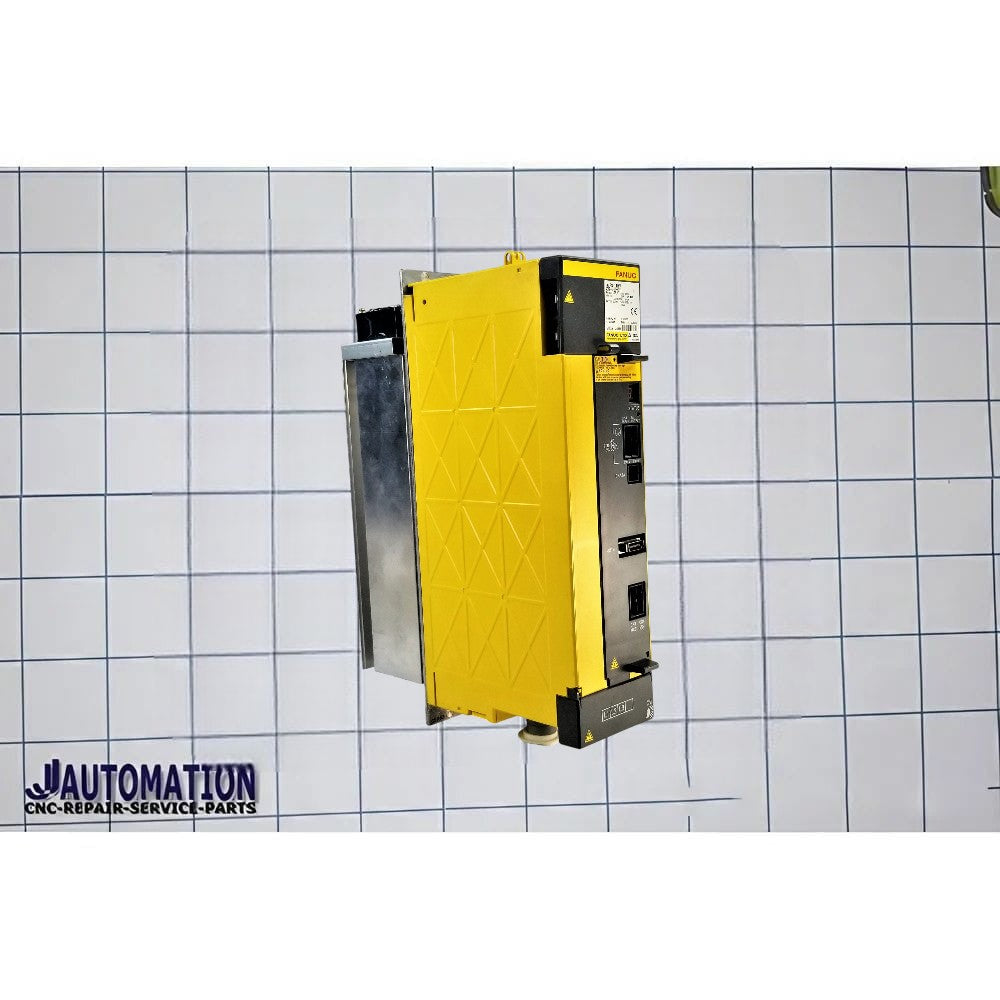

FANUC A06B-6120-H011 Power Supply Module (αi Series – PSM-11HVi)
The A06B-6120-H011 from FANUC is an αi series power supply module (PSM-11HVi) used in CNC machine tool systems to generate and regulate the DC bus power required by servo and spindle amplifiers.
Detailed Product Description (Website Ready)
The FANUC A06B-6120-H011 is a high-voltage CNC power supply module designed for the αi generation drive system. It converts 3-phase AC input (typically 400–480V) into a stable DC bus voltage (~565–679V DC) used to power FANUC servo and spindle amplifiers.
This module is responsible for supplying clean, regulated, and high-efficiency power distribution across multiple CNC axes, ensuring smooth machine motion, precise positioning, and stable spindle performance.
It is commonly used in medium-capacity CNC machining centers, milling machines, and automated production systems, where reliable power conversion is essential for continuous industrial operation.
Key Features & Benefits
PSM-11HVi High-Voltage Power Module
Designed for efficient conversion of industrial AC power into DC bus supply for CNC drives.
Stable DC Output for Servo Systems
Delivers approximately 565–679V DC output, ensuring consistent servo and spindle performance.
Medium Power Capacity (~11–13 kW Class)
Suitable for small to mid-size CNC machines and multi-axis setups.
Integrated Cooling System
Uses forced-air cooling (internal/external fans) for thermal stability during continuous operation.
Designed for FANUC αi System Compatibility
Works with FANUC servo and spindle amplifiers through the shared DC bus architecture.
Technical Specifications (Typical)
- Model: A06B-6120-H011
- Series: FANUC αi (Alpha i)
- Type: Power Supply Module (PSM-11HVi)
- Input Voltage: 400–480V AC (3-phase)
- Input Current: ~24A
- Output Voltage: ~565–679V DC
- Output Power: ~13 kW
- Cooling: Forced air cooling
- Weight: ~6–7 kg (approx.)
- Application: CNC servo/spindle power supply system
Applications
- CNC machining centers
- Milling and turning machines
- Industrial automation systems
- Servo and spindle drive systems
- Medium-duty production lines
Important Notes
- This is a central CNC power supply module, not a standalone drive or servo amplifier.
- It typically operates with matching FANUC servo/spindle amplifiers via DC bus link.
- Repair is commonly done via exchange or refurbishment due to high-voltage internal design.
