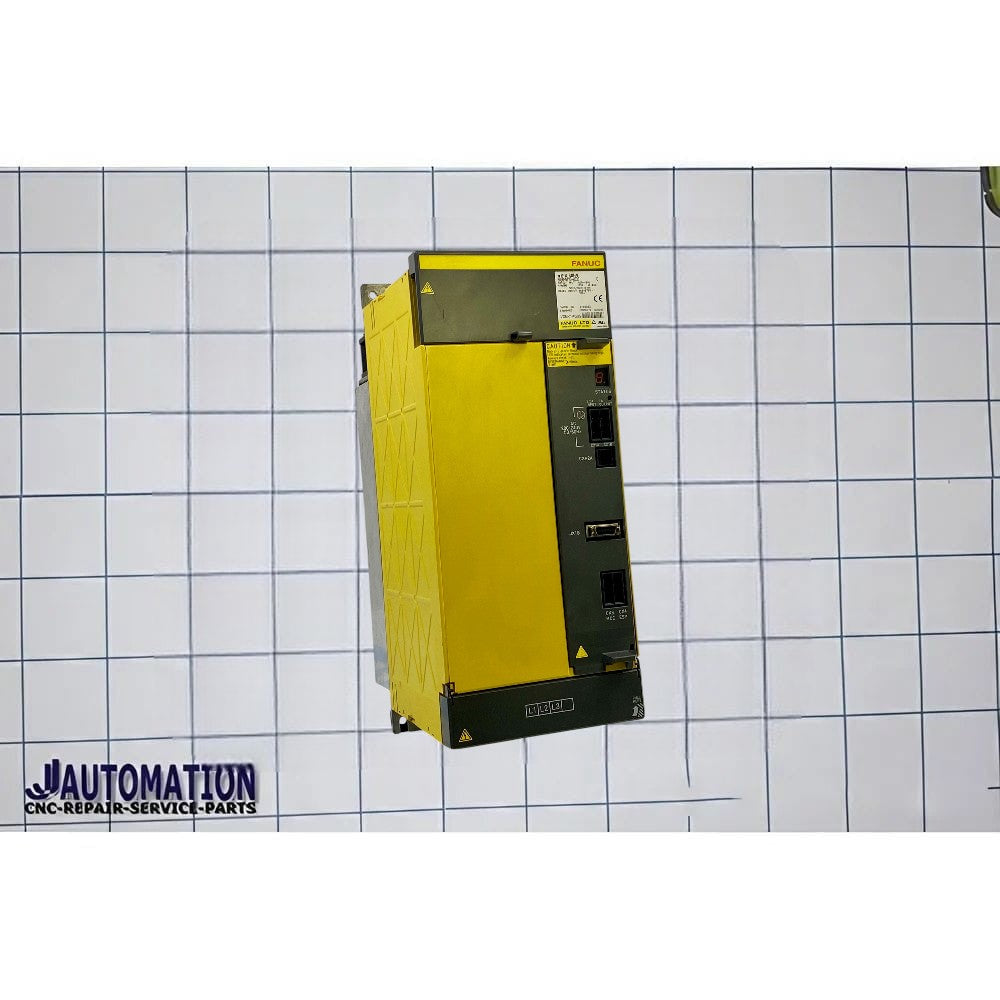

FANUC A06B-6120-H030 Power Supply Module (αi Series – PSM-30HVi)
The A06B-6120-H030 from FANUC is an αi series high-capacity power supply module (PSM-30HVi) used in CNC machine tools to generate and regulate the DC bus power required for servo and spindle amplifier systems.
Detailed Product Description (Website Ready)
The FANUC A06B-6120-H030 is a high-performance CNC power supply module designed for the αi generation drive system. It converts 3-phase AC input (typically 400–480V) into a stable DC bus voltage (~565–679V DC), which is then distributed to servo and spindle drives for precise motion control.
This module is widely used in medium to large CNC machining centers, where multiple servo axes and spindle systems require stable, high-capacity power distribution. It ensures smooth machine operation, accurate positioning, and reliable spindle performance even under heavy industrial loads.
It is part of the PSM-30HVi class, which is commonly used in multi-axis CNC configurations and automation systems requiring continuous-duty operation.
Key Features & Benefits
PSM-30HVi High-Power Module
Designed for efficient conversion of industrial AC power into regulated DC bus supply for CNC drive systems.
High Power Output (~30 kW Class)
Supports demanding CNC applications with output power around 30–35 kW, suitable for multi-axis machining systems.
Stable DC Bus Supply
Provides ~565–679V DC output, ensuring consistent servo and spindle performance.
400–480V Industrial Input
Operates on standard 3-phase industrial power supply for global CNC machine compatibility.
Efficient Thermal Management
Built with forced-air cooling and internal heat dissipation design for continuous operation.
FANUC αi System Integration
Works seamlessly with FANUC servo and spindle amplifiers via shared DC bus architecture.
Technical Specifications (Typical)
- Model: A06B-6120-H030
- Series: FANUC αi (PSM-30HVi)
- Type: Power Supply Module
- Input Voltage: 400–480V AC (3-phase)
- Input Current: ~63A @ 400V
- Output Voltage: ~565–679V DC
- Power Rating: ~30 kW (up to ~35 kW output capability)
- Cooling: Forced air cooling
- Application: CNC servo & spindle power distribution system
- Weight: ~10–11 kg (approx.)
Applications
- CNC machining centers
- Multi-axis milling and turning machines
- Industrial automation systems
- High-speed production lines
- Servo and spindle drive systems
Important Notes
- This is a central DC power supply module, not a servo amplifier or controller.
- It operates as part of a shared DC bus system feeding multiple drives.
- Commonly repaired via exchange or refurbishment due to high-voltage operation and industrial wear.
