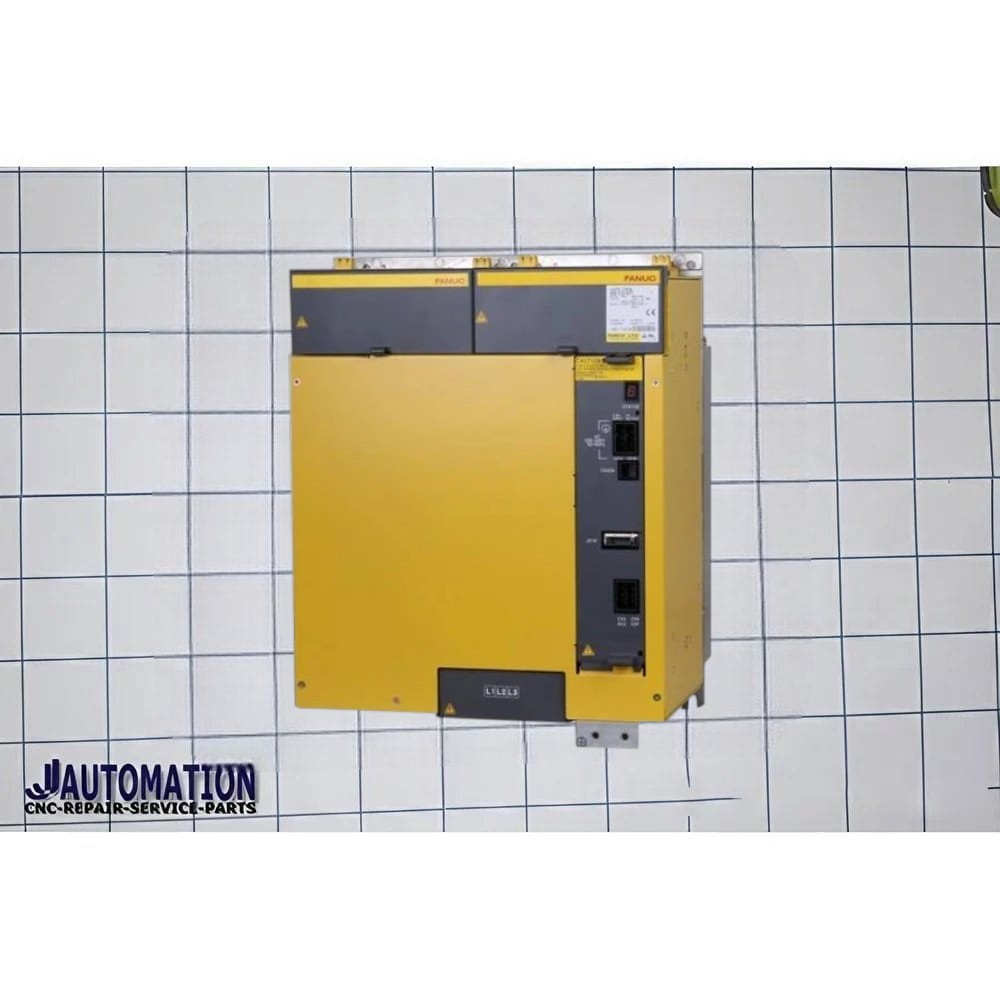

FANUC A06B-6120-H100 Power Supply Module (αi Series – PSM-100HVi)
The A06B-6120-H100 from FANUC is a high-capacity αi series power supply module (PSM-100HVi) used in CNC machine tools to generate and regulate the DC bus power required for servo and spindle amplifier systems.
Detailed Product Description
The FANUC A06B-6120-H100 is a high-performance CNC power supply module designed for the αi drive system, and it is one of the largest standard units in the A06B-6120 series. It converts 3-phase AC input (400–480V) into a stable DC bus voltage (~565–679V DC), which is then distributed to multiple servo and spindle amplifiers.
This module is widely used in large CNC machining centers and multi-axis industrial systems, where high power demand and continuous operation require a robust and stable energy supply. It supports synchronized operation of several axes and spindle drives through a shared DC bus architecture.
The H100 model is typically used in high-power machine configurations, making it suitable for heavy-duty cutting, multi-spindle systems, and large automated production lines.
Key Features & Benefits
PSM-100HVi Ultra High Power Module
One of the highest-capacity standard FANUC power supply modules for CNC systems.
Very High Power Output (~100 kW Class)
Designed for large-scale CNC machines with multiple servo and spindle amplifiers.
Stable DC Bus Supply
Provides regulated ~565–679V DC output for consistent drive performance across all axes.
400–480V 3-Phase Industrial Input
Compatible with standard industrial power infrastructure.
Multi-Axis System Support
Capable of powering multiple servo and spindle amplifiers simultaneously via shared DC bus architecture.
Industrial Cooling & Heavy-Duty Design
Built for continuous operation in demanding manufacturing environments.
Technical Specifications (Typical)
- Model: A06B-6120-H100
- Series: FANUC αi (PSM-100HVi)
- Type: Power Supply Module
- Input Voltage: 400–480V AC (3-phase)
- Output Voltage: ~565–679V DC
- Power Rating: ~100 kW class
- Cooling: Forced air cooling
- Application: CNC servo & spindle DC bus system
- Compatibility: FANUC 15i / 16i / 18i / 21i / 30i systems
Applications
- Large CNC machining centers
- Heavy-duty milling and turning machines
- Multi-axis production systems
- High-power spindle machining applications
- Industrial automation lines
Important Notes
- This is a central DC power supply module, not a servo or spindle amplifier.
- It operates as part of a shared DC bus system feeding multiple drive units.
- Commonly supported through repair, refurbishment, or exchange programs due to high-voltage industrial design and cost efficiency.
