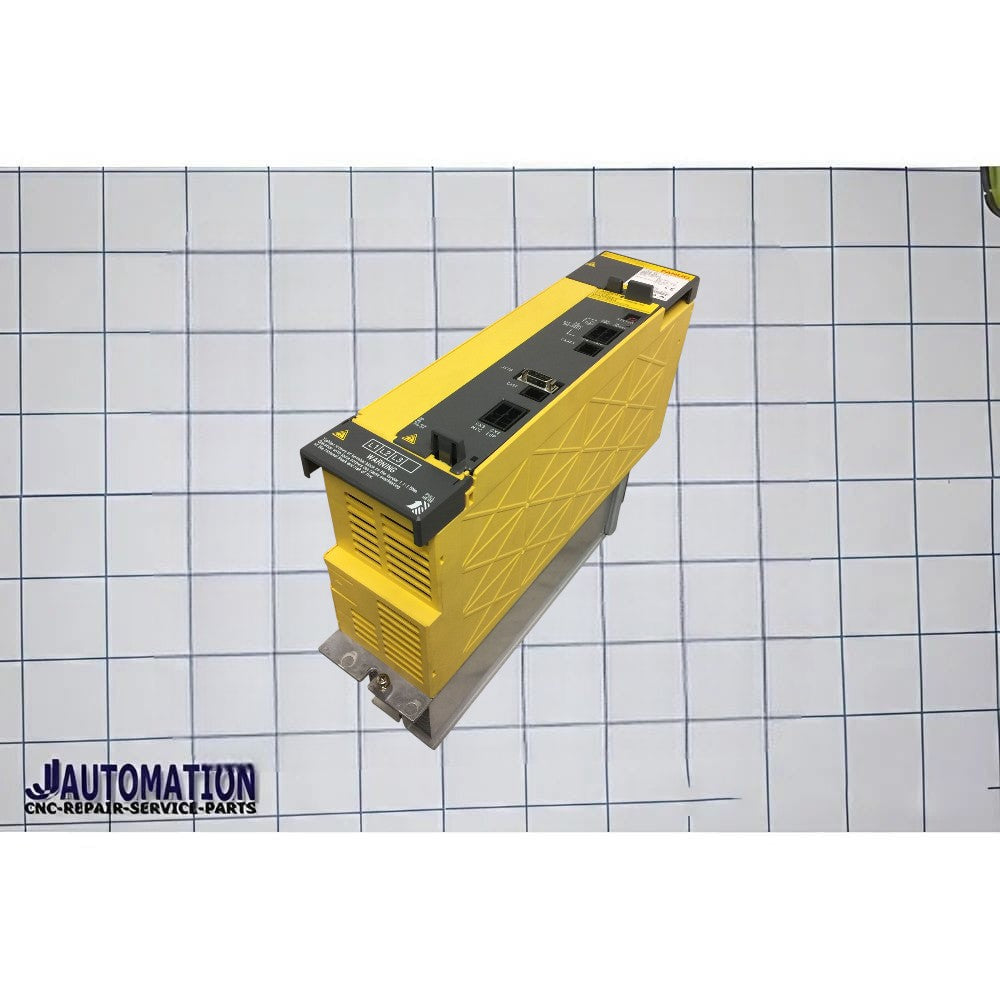

FANUC A06B-6140-C015 Servo Amplifier / Power Supply Module (αi Series)
FANUC A06B-6140-H015 Power Supply Module
The A06B-6140-C015 from FANUC is a αi series power supply module (AiPS-15 class) used in CNC machine tool systems to provide stable and regulated DC power for servo and spindle amplifiers. It is designed for medium-duty CNC applications, offering reliable performance, high efficiency, and smooth integration with FANUC αi control systems.
Detailed Product Description
The FANUC A06B-6140-C015 is a compact industrial power supply module that converts three-phase AC input (200–240V) into a regulated DC bus voltage used by servo drives within CNC machines. It plays a key role in ensuring consistent energy distribution to all connected axes, allowing smooth and precise machine motion.
As part of the A06B-6140 αi generation, this module supports improved efficiency and diagnostics compared to older 6110-series systems. It is commonly used in CNC setups where reliability, space efficiency, and stable power delivery are essential.
The module is widely deployed in machining environments where continuous operation and precision control are required.
Key Features & Benefits
Medium-Capacity Power Module (AiPS-15 Class)
Designed for CNC systems requiring approximately 15 kW-class power handling, suitable for small-to-medium industrial machines.
Stable DC Power Output
Converts AC input into a regulated ~283–339V DC bus, ensuring consistent servo and spindle drive performance.
Optimized for FANUC αi Systems
Fully compatible with FANUC αi servo and spindle amplifiers, enabling synchronized multi-axis operation.
Reliable Industrial Operation
Built for continuous-duty use in CNC environments with stable output under varying loads.
Integrated Protection System
Includes safeguards against overcurrent, overvoltage, and thermal overload for improved machine safety.
Efficient and Compact Design
Space-saving construction makes it suitable for control cabinets with limited installation area.
Technical Specifications (Typical)
- Model: A06B-6140-C015
- Series: FANUC αi Series (A06B-6140)
- Type: Power Supply Module (AiPS-15 class)
- Input Voltage: 200–240V AC (3-phase)
- Output Voltage: ~283–339V DC
- Power Rating: ~15 kW class
- Input Current: ~63A @ 200V
- Frequency: 50/60 Hz
- Cooling: Forced air cooling
- Installation: CNC control cabinet mounted
Applications
- CNC machining centers
- Milling and turning machines
- Automated production equipment
- Robotics-integrated CNC systems
- Medium-duty industrial manufacturing lines
