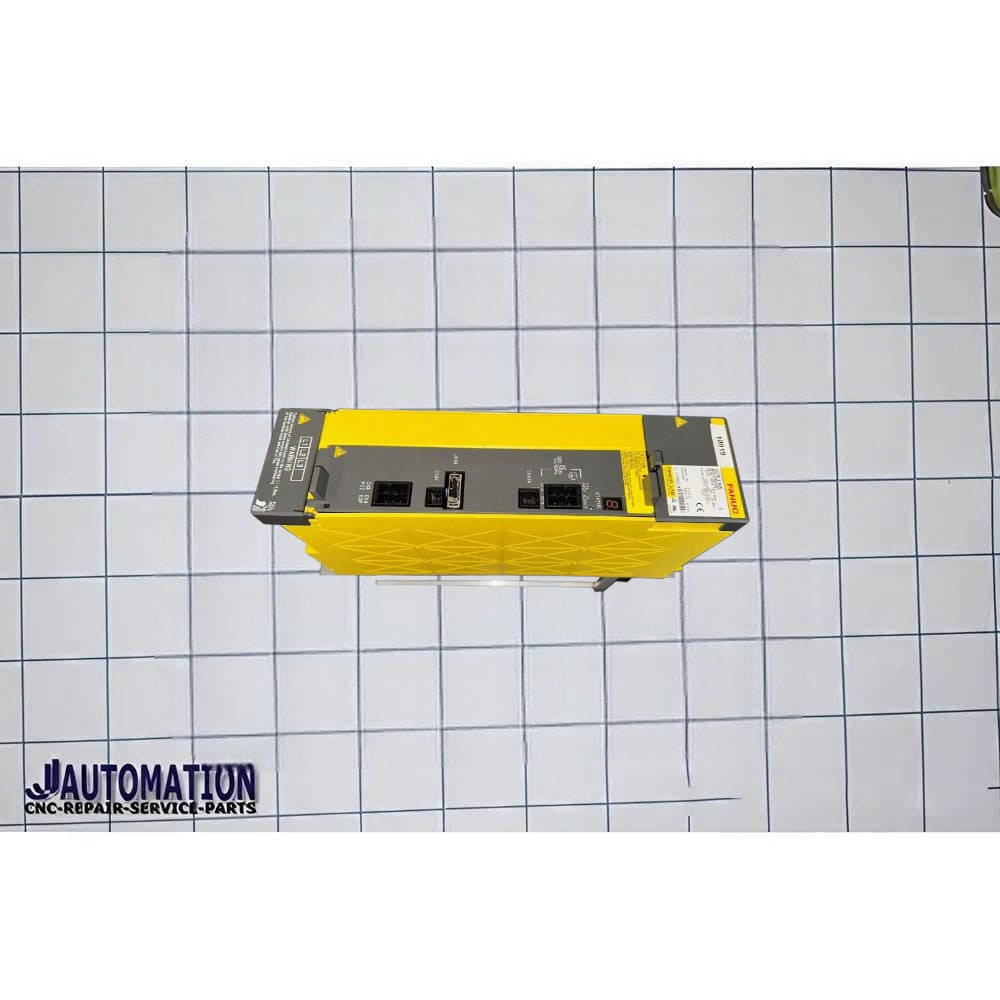

FANUC A06B-6150-H011 Power Supply Module (αi Series – AiPS-11HV)
The A06B-6150-H011 from FANUC is an αi series servo power supply module (AiPS-11HV) used in CNC machine systems to generate and regulate DC bus power for servo and spindle amplifiers.
Detailed Product Description (Website Ready)
The FANUC A06B-6150-H011 is a high-performance CNC power supply module designed for the αi generation drive system. It converts 3-phase AC input (400–480V) into a stable DC bus voltage (~565–679V DC), which is distributed to servo and spindle drive units.
This module is part of the AiPS-11HV (PSM-11HVi class) and is commonly used in small to medium CNC machining centers, where stable and efficient power conversion is required for reliable machine operation.
It ensures synchronized operation of servo and spindle amplifiers, helping maintain precision motion control, smooth machining, and stable spindle performance.
Key Features & Benefits
AiPS-11HV Power Supply Module
Designed for efficient conversion of industrial AC power into regulated DC bus supply for CNC drive systems.
Stable DC Output (~565–679V DC)
Provides consistent power for servo and spindle amplifiers, ensuring smooth machine operation.
Power Rating ~13 kW Class
Suitable for compact to mid-size CNC machines and multi-axis configurations.
400–480V 3-Phase Input
Compatible with standard industrial electrical systems used in manufacturing plants.
Integrated Cooling System
Forced-air cooling ensures stable thermal performance during continuous operation.
FANUC αi System Integration
Works with FANUC servo and spindle amplifiers through shared DC bus architecture.
Technical Specifications (Typical)
- Model: A06B-6150-H011
- Series: FANUC αi (AiPS-11HV / PSM-11HVi class)
- Type: Power Supply Module
- Input Voltage: 400–480V AC (3-phase)
- Output Voltage: ~565–679V DC
- Power Rating: ~13 kW
- Input Current: ~24A @ 200V equivalent system reference
- Frequency: 50/60 Hz
- Cooling: Forced air cooling
- Application: CNC servo & spindle DC power distribution
Applications
- CNC machining centers
- Milling and turning machines
- Industrial automation systems
- Servo and spindle drive systems
- Small to medium production lines
