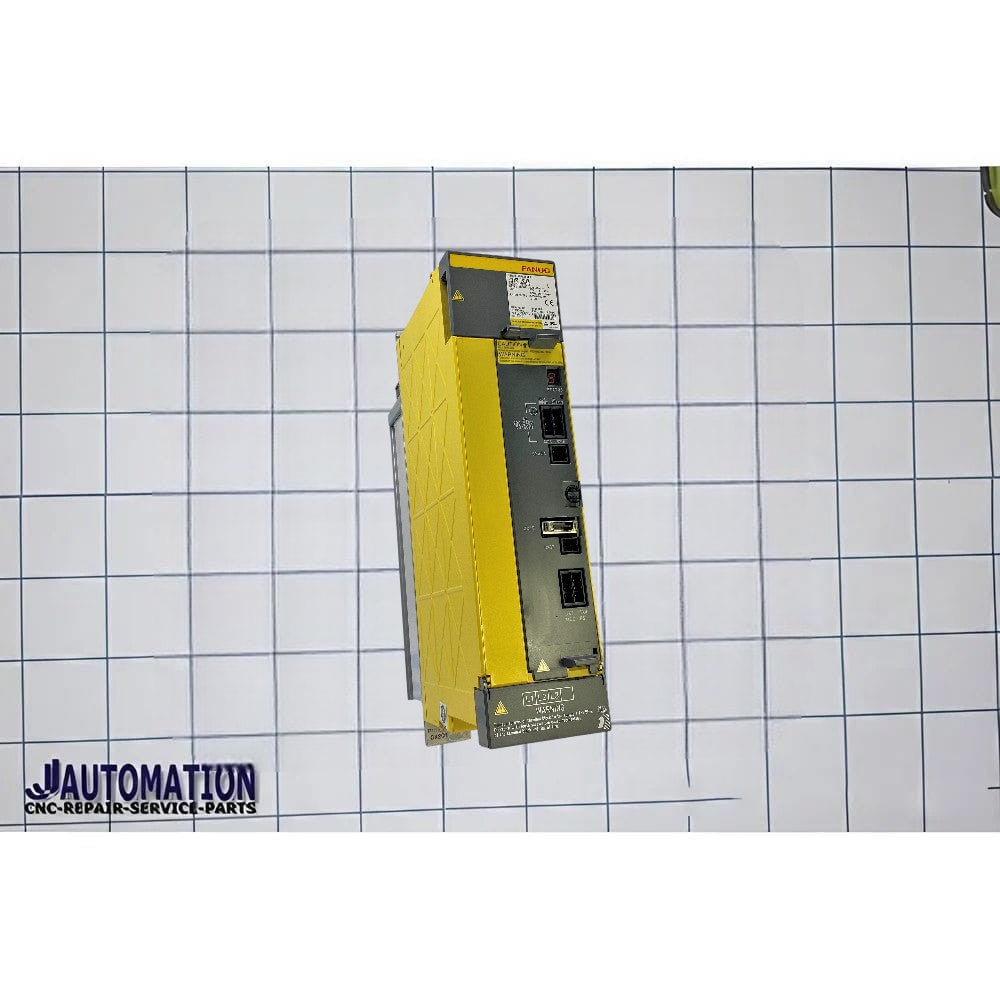

FANUC A06B-6150-H018 Power Supply Module (αi Series – AiPS-18HV)
The A06B-6150-H018 from FANUC is an αi series power supply module (AiPS-18HV / PSM class) used in CNC machines to generate and regulate the DC bus power required for servo and spindle amplifier systems.
Detailed Product Description (Website Ready)
The FANUC A06B-6150-H018 is a medium-capacity CNC power supply module designed for the αi drive system. It converts 3-phase AC input (400–480V) into a stable DC bus voltage (~565–679V DC), which is distributed to servo and spindle amplifiers for machine axis control.
This module is commonly used in small to medium CNC machining centers and industrial automation systems, where reliable and efficient power conversion is required for continuous operation.
It belongs to the AiPS-18HV / PSM-18HVi class, making it a widely used standard power module in FANUC CNC configurations.
Key Features & Benefits
AiPS-18HV Power Supply Module
Designed for efficient conversion of AC power into DC bus supply for CNC drive systems.
Stable DC Output (~565–679V DC)
Provides consistent voltage supply for servo and spindle amplifiers.
~21 kW Power Class
Suitable for small to mid-size CNC machines and multi-axis setups.
3-Phase Industrial Input (400–480V AC)
Compatible with standard industrial power systems.
Regenerative Energy Handling
Supports energy recovery during motor deceleration for improved efficiency.
FANUC αi System Compatibility
Works with FANUC servo and spindle amplifiers via shared DC bus architecture.
Technical Specifications (Typical)
- Model: A06B-6150-H018
- Series: FANUC αi (AiPS-18HV / PSM class)
- Type: Power Supply Module
- Input Voltage: 400–480V AC (3-phase)
- Input Current: ~37A @ 400V
- Output Voltage: ~565–679V DC
- Power Rating: ~21 kW
- Frequency: 50/60 Hz
- Cooling: Forced air cooling
- Application: CNC servo & spindle power supply system
Applications
- CNC machining centers
- Milling and turning machines
- Industrial automation systems
- Servo and spindle drive systems
- Small to medium production lines
Important Notes
- This is a central DC power supply module, not a servo or spindle amplifier.
- It operates as part of a shared DC bus system feeding multiple drives.
- Commonly serviced via repair or exchange units due to high-voltage industrial design and wear over time.
