A06B-6150-H100 – Description

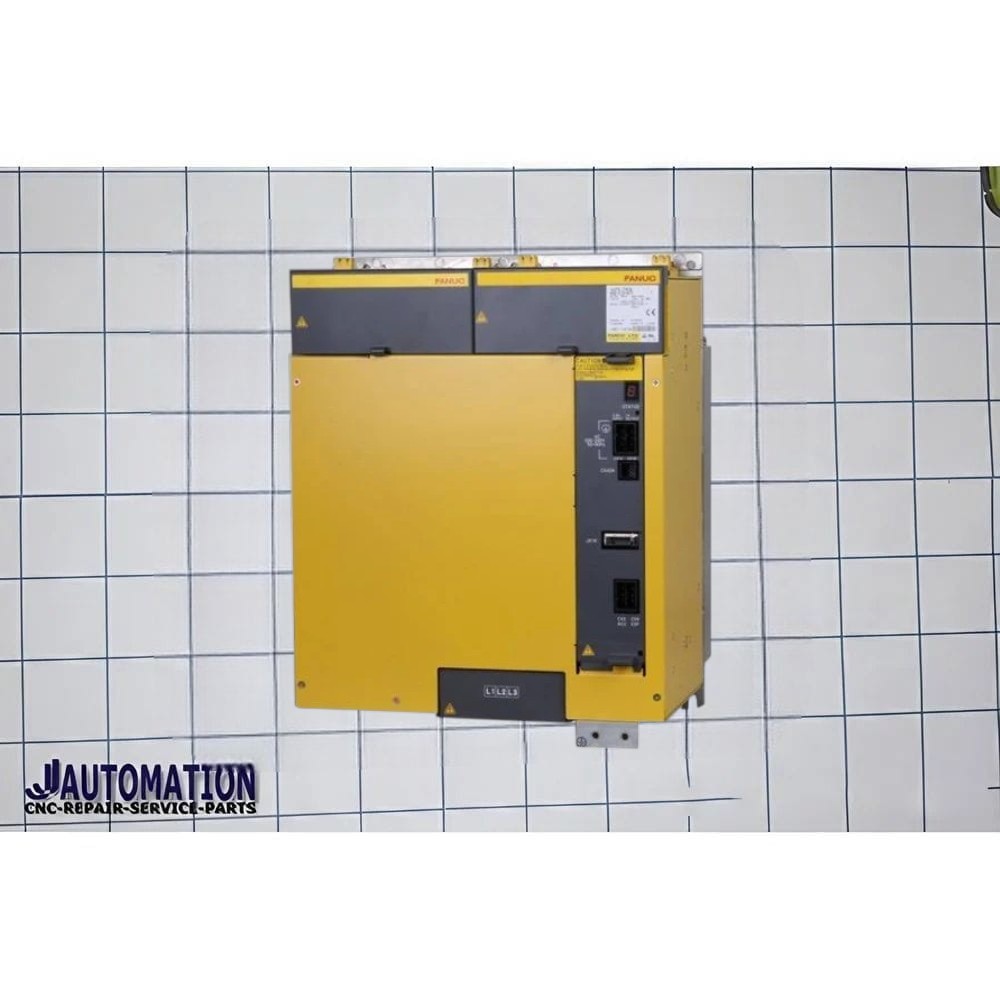

A06B-6150-H100 is a FANUC Alpha i series power supply module, specifically:
ALPHA i Power Supply Module (AiPS-100HV)
🔧 What it is
It is a high-capacity power supply module (PSM) used in FANUC CNC systems.
Its role is to:
- Convert 3-phase AC input → high-voltage DC output
- Supply power to:
- Servo amplifiers (axis drives)
- Spindle amplifiers
⚙️ Key Function
- Acts as the main DC bus power source for the CNC drive system
- Provides stable, regulated power for high-performance machining
- Designed for heavy-duty industrial applications
- Supports multiple servo and spindle modules simultaneously
📊 Technical Specifications (Typical)
- Model: AiPS-100HV
- Input: 400–480V AC, 3-phase
- Output: 565–679V DC
- Current: ~206 A
- Power rating: ~110 kW
- Frequency: 50/60 Hz
🏭 Applications
- CNC machining centers
- CNC lathes
- Robotics & automation systems
- High-power multi-axis machines
🧠 Simple Explanation
👉 A06B-6150-H100 = Main power supply (bigger capacity version)
👉 It feeds high-voltage DC power to all drives in the machine
🔄 Difference vs H075 (important)
- H100 → Higher capacity (~110 kW)
- H075 → Lower capacity (~75–82 kW)
👉 So H100 is used in larger / more powerful machines
