Description

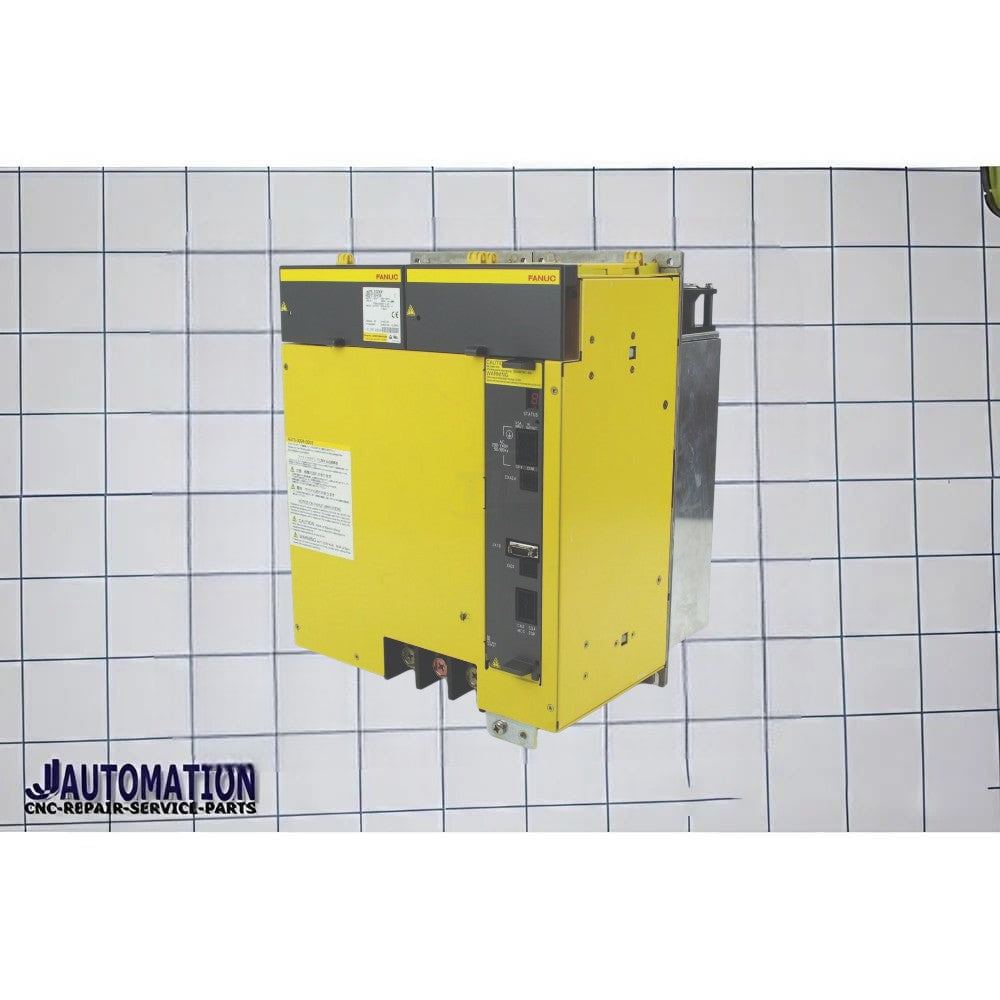

A06B-6150-C030 is a FANUC Alpha i–series power supply module (PSM), similar in family to the C018 but with a higher capacity.
🔧 Description (A06B-6150-C030)
Manufacturer: FANUC
Type: Alpha i Series Power Supply Module
Equivalent Model: AiPS-30HV (≈30 kW class)
👉 Simple meaning:
It is a main DC power supply unit used in CNC machines to feed servo and spindle drives.
⚙️ Function
- Converts 3-phase AC (400–480V) into high-voltage DC
- Supplies a common DC bus to:
- Servo amplifiers (axis drives)
- Spindle amplifiers
- Enables stable motion control and machine operation
⚡ Typical Technical Specifications
(based on equivalent A06B-6150-H030)
- Input: 400–480V AC, 3-phase
- Input current: ~63 A @ 400V
- Output: ~565–679V DC
- Power rating: ~30–35 kW
🧩 Series Context
- Belongs to A06B-6150 (Alpha i PSM series)
- Works together with:
- Servo amplifier modules (axis drives)
- Spindle amplifier modules
- Installed in CNC electrical cabinet
👉 It acts as the central power source for the entire drive system.
📌 About “C030”
- “C030” indicates a specific configuration/revision
- Functionally equivalent to H030 (AiPS-30HV class)
- Differences are usually:
- Firmware version
- Regional or hardware variation
🔍 Quick comparison (6150 series)
- C018 → ~18 kW
- C030 → ~30 kW (this one)
- Higher models → support larger machines
✔️ Simple explanation
👉 A06B-6150-C030 is a ~30 kW FANUC CNC power supply module that provides DC power to servo and spindle drives.
