Description

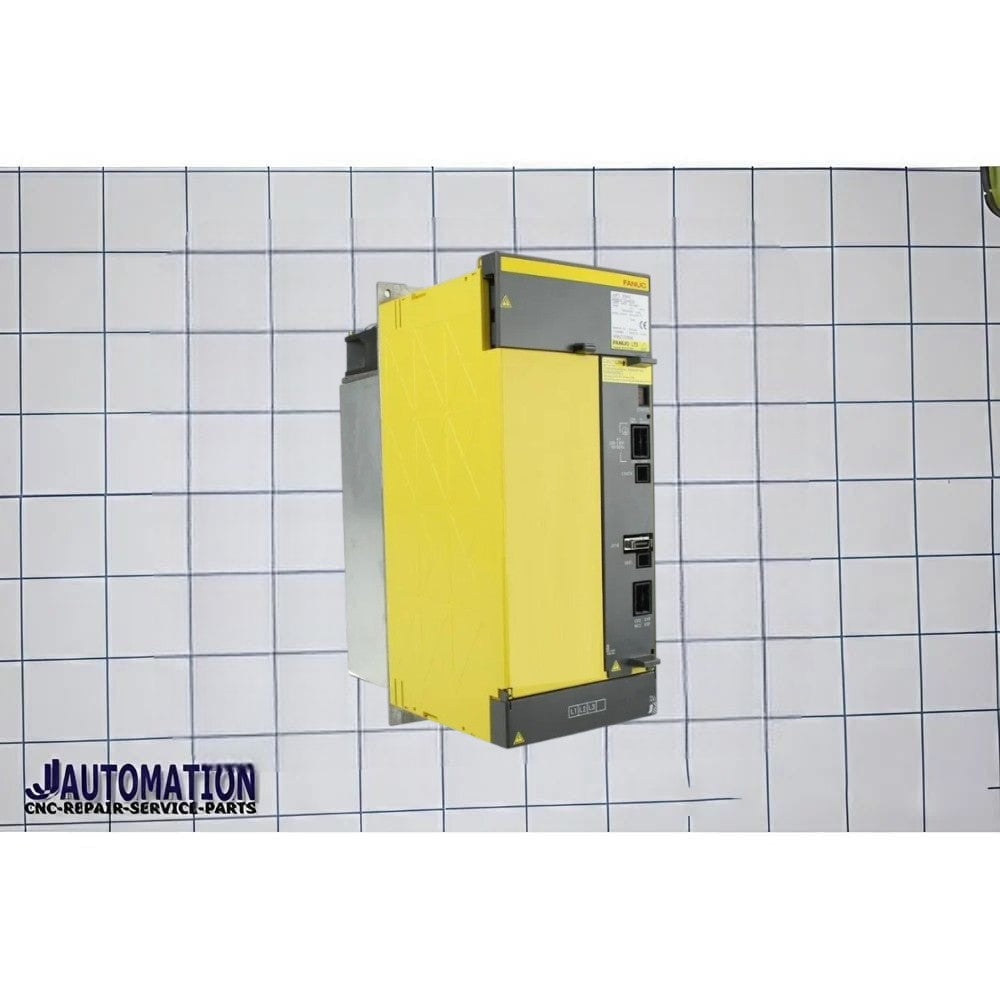

A06B-6150-C075 is a FANUC Alpha i–series power supply module (PSM) used in CNC drive systems made by FANUC.
🔧 Description (A06B-6150-C075)
Type: Alpha i Series Power Supply Module (PSM)
Equivalent model: AiPS-75HV (≈75 kW class)
👉 Simple meaning:
It is a high-power CNC main power supply unit that feeds servo and spindle drives.
⚙️ Function
- Converts 3-phase AC (400–480V) into high-voltage DC (~600V bus)
- Supplies DC power to:
- Servo amplifiers (axis drives)
- Spindle amplifiers
- Handles regenerative braking energy (feeds power back safely into the DC bus)
⚡ Typical Technical Specs
(based on equivalent H075 model)
- Input: 400–480V AC, 3-phase
- Output: ~565–679V DC
- Power rating: ~75–82 kW
- Designed for medium-to-large CNC machines
🧩 System role
In a FANUC CNC system:
- C075 (this module) → provides main DC power
- Servo amplifiers → control axis motors
- Spindle amplifier → drives spindle motor
So it acts as the central energy source for the drive system.
📌 About “C075”
- “C075” = 75 kW class configuration/version
- Functionally equivalent to H075 (AiPS-75HV)
- Differences are usually:
- Hardware revision
- Firmware or regional configuration
🔍 Series comparison (6150 family)
- C018 → ~18 kW
- C030 → ~30 kW
- C045 → ~45 kW
- C060 → ~60 kW
- C075 → ~75 kW (this one)
✔️ Simple explanation
👉 A06B-6150-C075 is a ~75 kW FANUC CNC power supply module that provides DC power to all servo and spindle drives in a machine.
