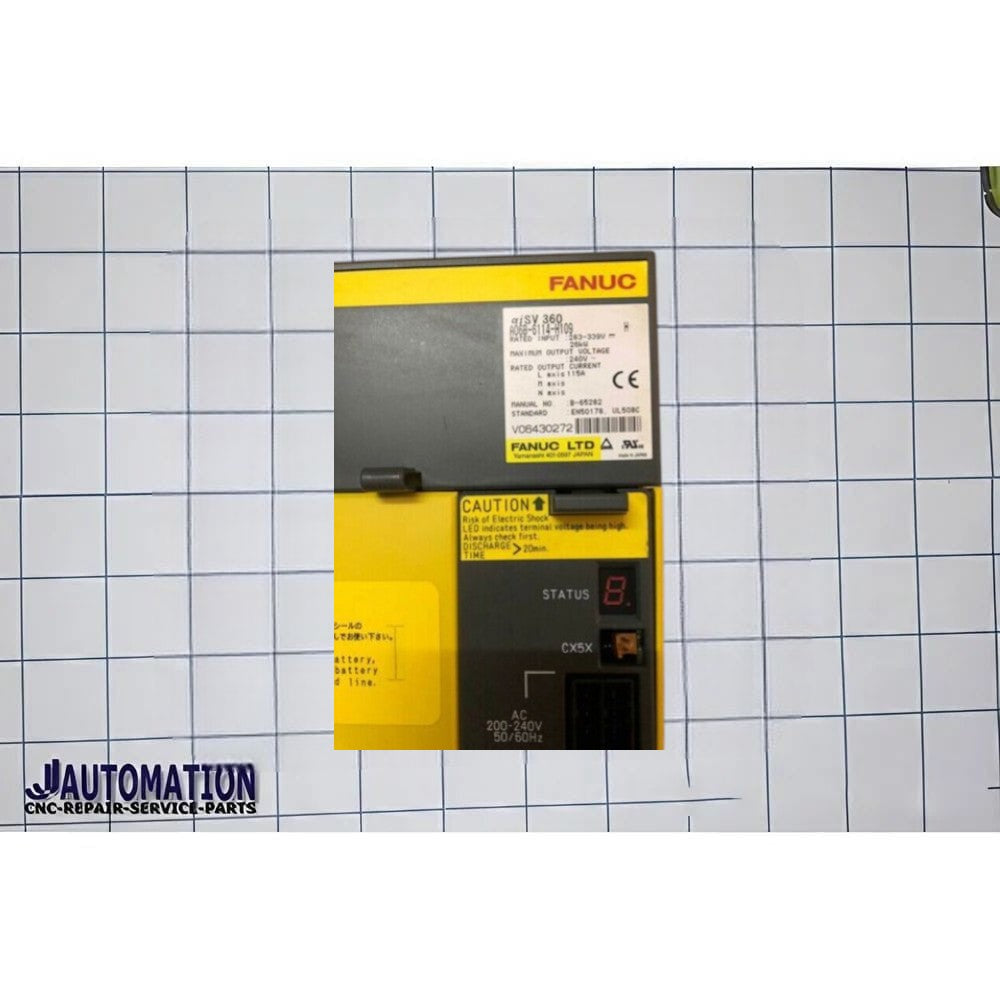

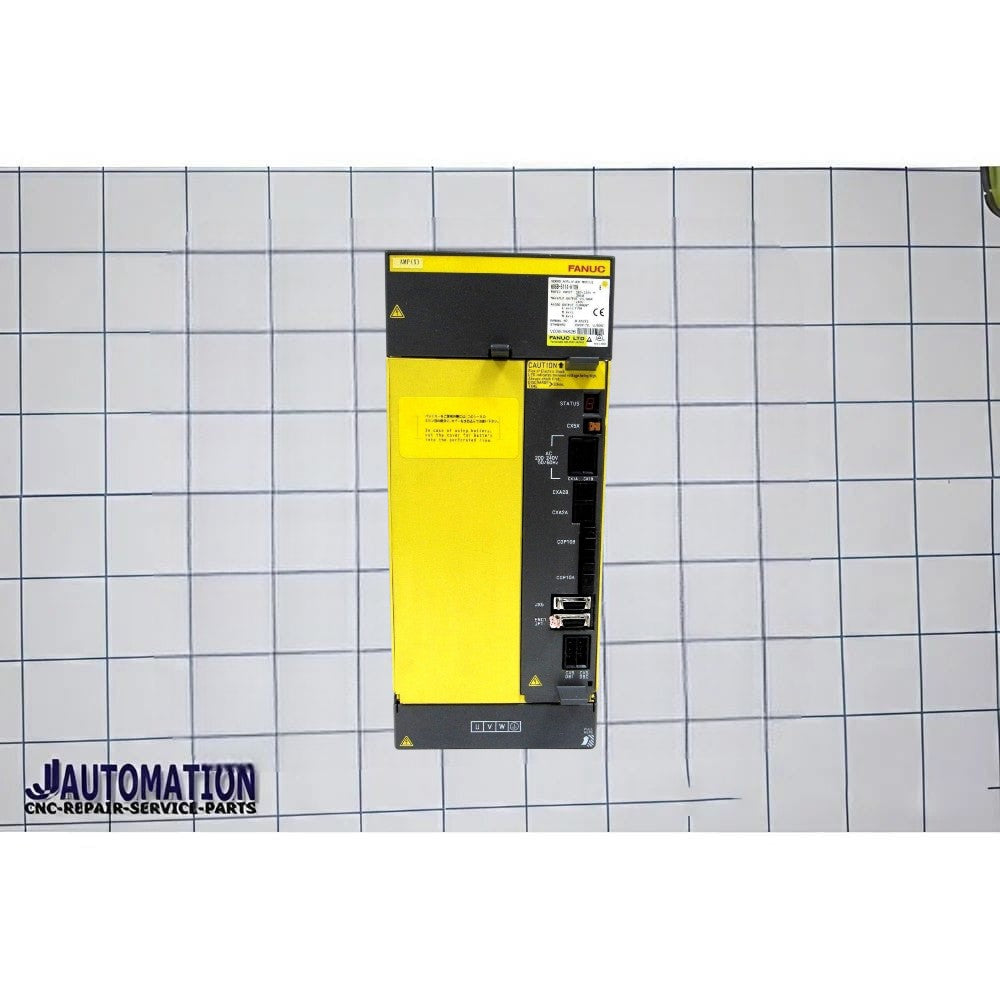

Fanuc ai Servo Amplifier 200VAC-input A06B-6114-C109

A06B-6114-C109 is a servo amplifier module used in CNC machines manufactured by FANUC.

📌 Basic Information

• Part Number: A06B-6114-C109

• Type: Servo Amplifier Module

• Series: FANUC αi (Alpha-i) Servo Amplifier Series

• Model: SVM1-360i

• Category: Axis Drive Unit

⚙️ Main Function

The A06B-6114-C109 servo amplifier is designed to drive and control CNC servo motors that move the machine axes.

Main functions include:

• Converting CNC controller commands into power for servo motors

• Controlling axis position, speed, and torque

• Processing encoder feedback signals

• Communicating with the CNC system through FSSB (Fiber Serial Servo Bus)

🔧 Key Characteristics

• Part of the FANUC αi servo amplifier family

• Designed for high-power servo motor control

• Installed in the servo drive section of the CNC electrical cabinet

• Compatible with FANUC αi series servo motors

🧩 Typical Applications

Used in machines such as:

• CNC machining centers

• CNC turning centers

• Heavy-duty machining equipment

• Industrial automation machines requiring high-power axis control

✅ Simple explanation:
A06B-6114-C109 = FANUC Alpha-i servo amplifier (SVM1-360i) used to power and control high-power CNC machine axis motors. 🔧
