🔧 Model Overview

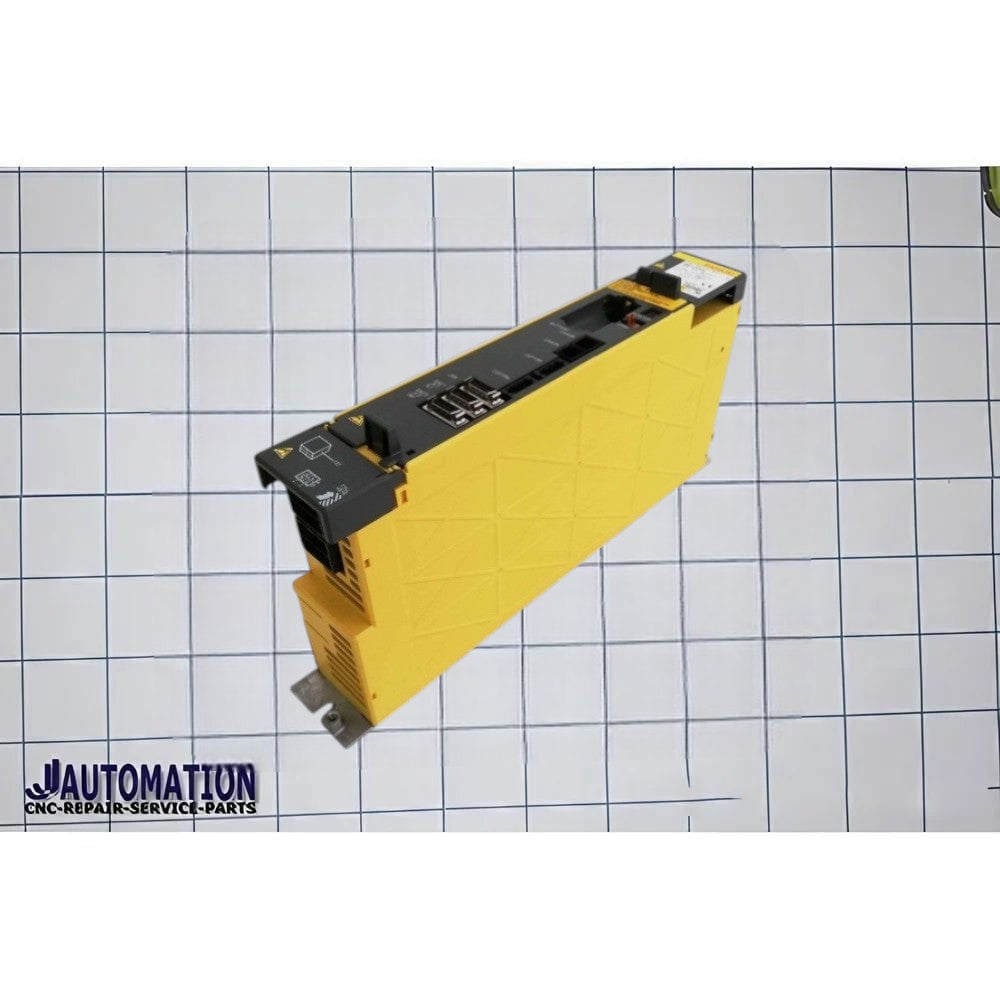

A06B-6114-C205 is a FANUC Alpha i (αi) spindle amplifier module, designed to drive and control CNC spindle motors.
⚙️ Full Technical Description
👉 A06B-6114-C205 = Alpha i Spindle Amplifier (SPM-22 type)
-
Series: Alpha i (αi) Spindle System
-
Type: AC Spindle Amplifier / Drive
-
Model Class: SPM-22 (medium-high power spindle drive)
-
Function: Controls main spindle or C-axis motor
⚙️ What It Does
This module:
- Drives the spindle motor (tool rotation or workpiece rotation)
- Controls speed, torque, and spindle orientation
- Enables rigid tapping (synchronized spindle + axis movement)
- Communicates with FANUC CNC via FSSB (fiber optic bus)
👉 In simple terms:
It controls how fast and how powerfully the spindle rotates in a CNC machine.
🔩 Key Specifications (Typical)
-
Model Type: SPM-22
-
Power Class: Medium to high spindle capacity
-
Input Voltage: ~283–339 V AC (3-phase)
-
Output Voltage: ~200–240 V
-
Cooling: Forced air (fan-cooled)
-
Feedback: Supports spindle encoder for orientation control
🏭 Applications
- CNC lathes (main spindle & C-axis control)
- CNC machining centers
- Milling machines
- Medium to heavy cutting applications
🔍 Key Features
- ✔ Spindle control (not axis servo)
- ✔ Higher capacity than C201 (SPM-11)
- ✔ Supports rigid tapping & spindle orientation
- ✔ Stable performance for continuous machining
- ✔ Compatible with FANUC αi spindle motors
📊 Position in A06B-6114 Spindle Series
| Model |
Type |
| C201 |
SPM-11 (low power) |
| C203 |
SPM-18 |
| C205 |
SPM-22 (medium-high power) |
| C206+ |
Higher spindle capacities |
