🔧 FANUC A06B-6114-C301 – Alpha i Servo Amplifier (3-Axis, Compact Type)

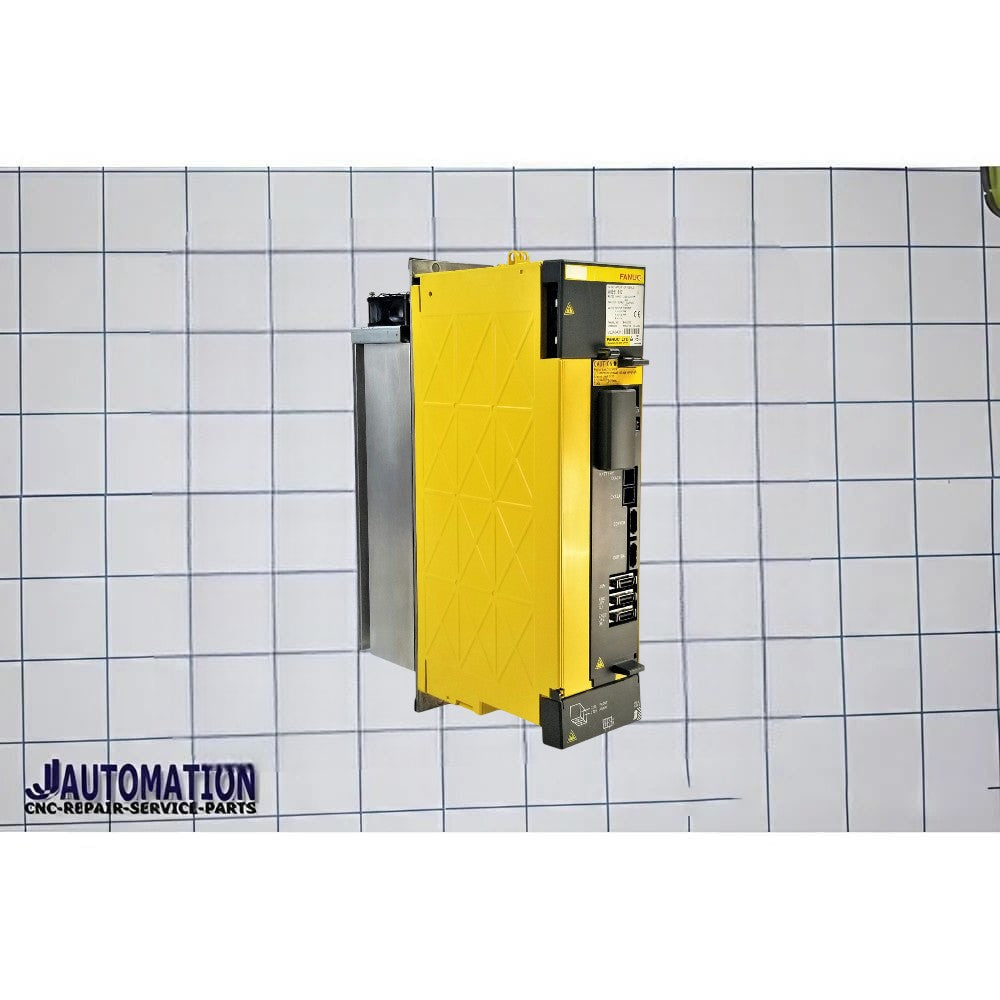

FANUC A06B-6114-C301 Servo Amplifier

---

🧠 Model Description

A06B-6114-C301 is a FANUC Alpha i (αi) servo amplifier module from the 6114 series, designed for 3-axis control in a compact (C-type) configuration.

👉 Common designation: SVM3-4/4/4i (Compact type)

---

⚙️ Key Technical Details

• Type: AC Servo Amplifier
• Series: Alpha i (αi) – 6114
• Variant: C-type (compact / integrated design)
• Axes: 3 axes
• Model: SVM3-4/4/4i
• Current Rating:
  • Axis 1 → 4A
  • Axis 2 → 4A
  • Axis 3 → 4A
• Communication: FSSB (fiber optic servo bus)

---

⚙️ What “C301” Means

• C = Compact / integrated version of amplifier
• 301 =
  • 3-axis module (SVM3)
  • Low current rating (4/4/4)

👉 Compared to H-series:

• Same functionality
• More compact / panel-friendly design

---

⚙️ What It Does

This amplifier:

• Drives three servo motors simultaneously
• Controls:
  • Position
  • Speed
  • Torque
• Provides synchronized motion control
• Communicates with CNC via fiber optic (FSSB)

👉 Simple explanation:
A compact 3-axis amplifier for small-capacity servo motors.

---

🏭 Applications

• Small CNC machines
• Compact machining centers
• Light-duty automation systems
• Machines with limited cabinet space

Typical axes:

• X, Y, Z (light load)
• Auxiliary axes

---

🔍 Key Features

• ✔ 3-axis integrated amplifier
• ✔ Compact design (C-type) → space saving
• ✔ Low power rating (4A per axis)
• ✔ High precision motion control
• ✔ Compatible with αi servo motors

---

⚠️ Important Notes

• C301 = compact version of H301
• Same electrical rating, different packaging
• Requires:
  • Proper αi power supply module (PSM)
  • Matching servo motors
• Often replaced or repaired as a unit

---

🧠 Simple Explanation

👉 A06B-6114-C301 is a compact 3-axis FANUC servo amplifier designed for low-power applications, controlling three axes in a space-saving form factor.
