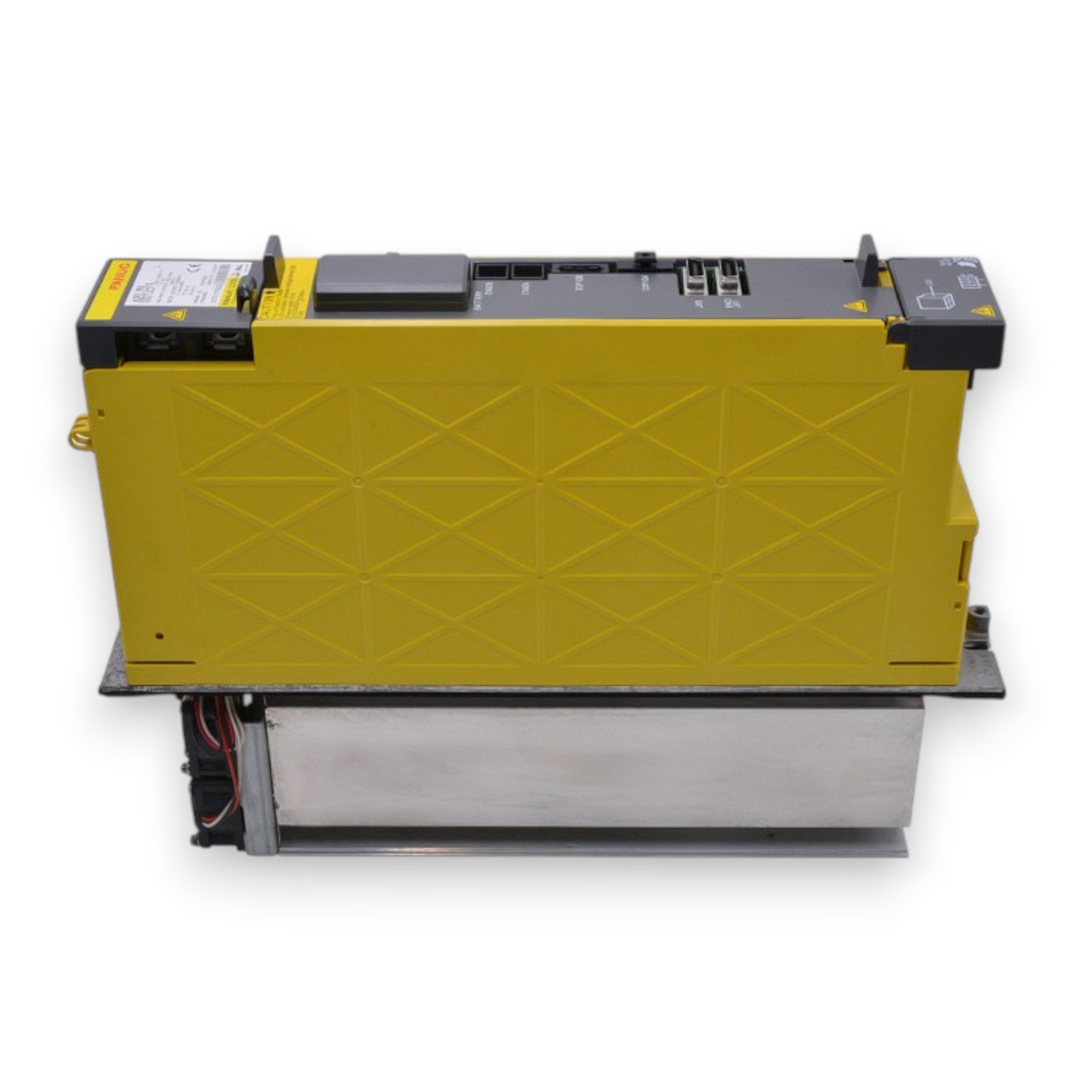

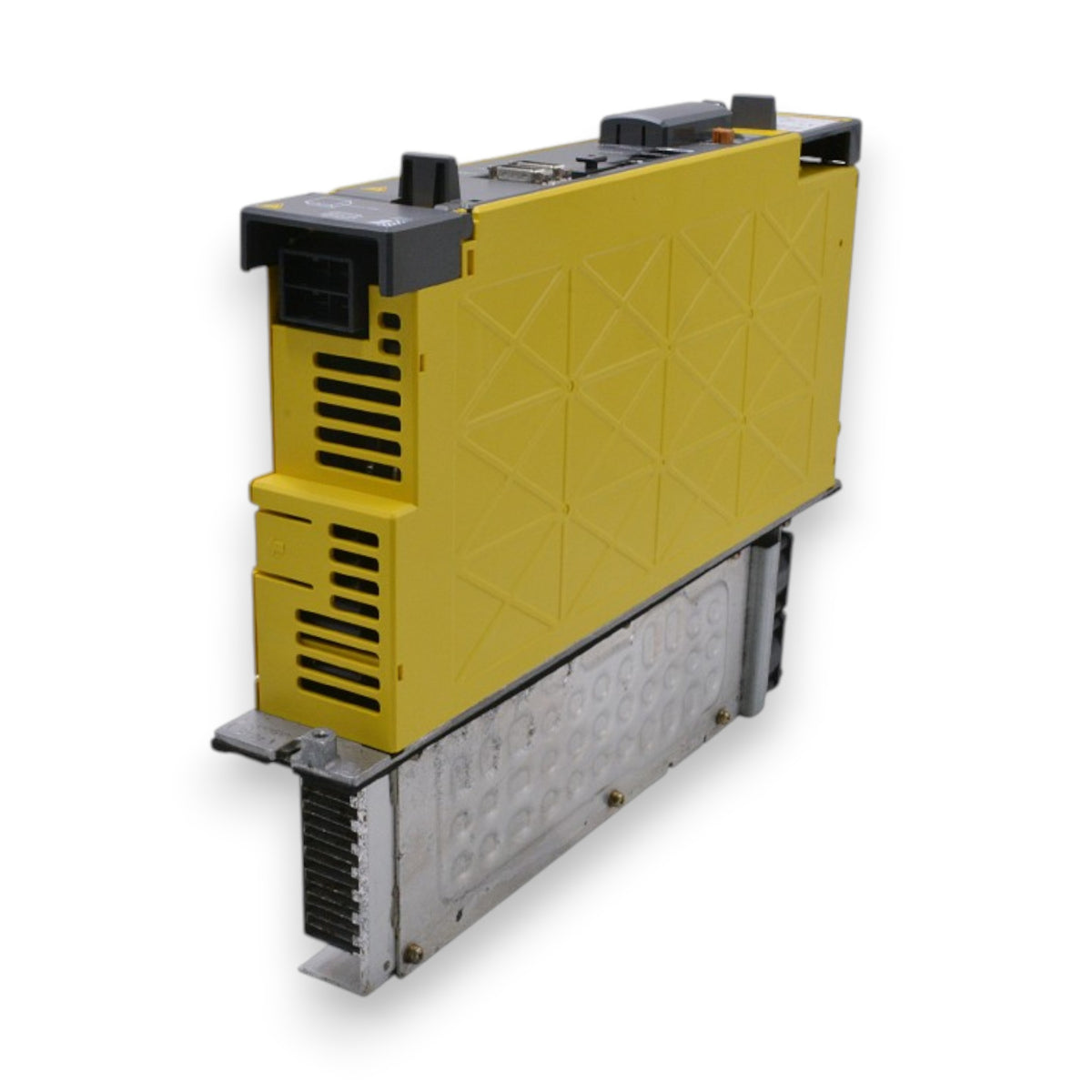

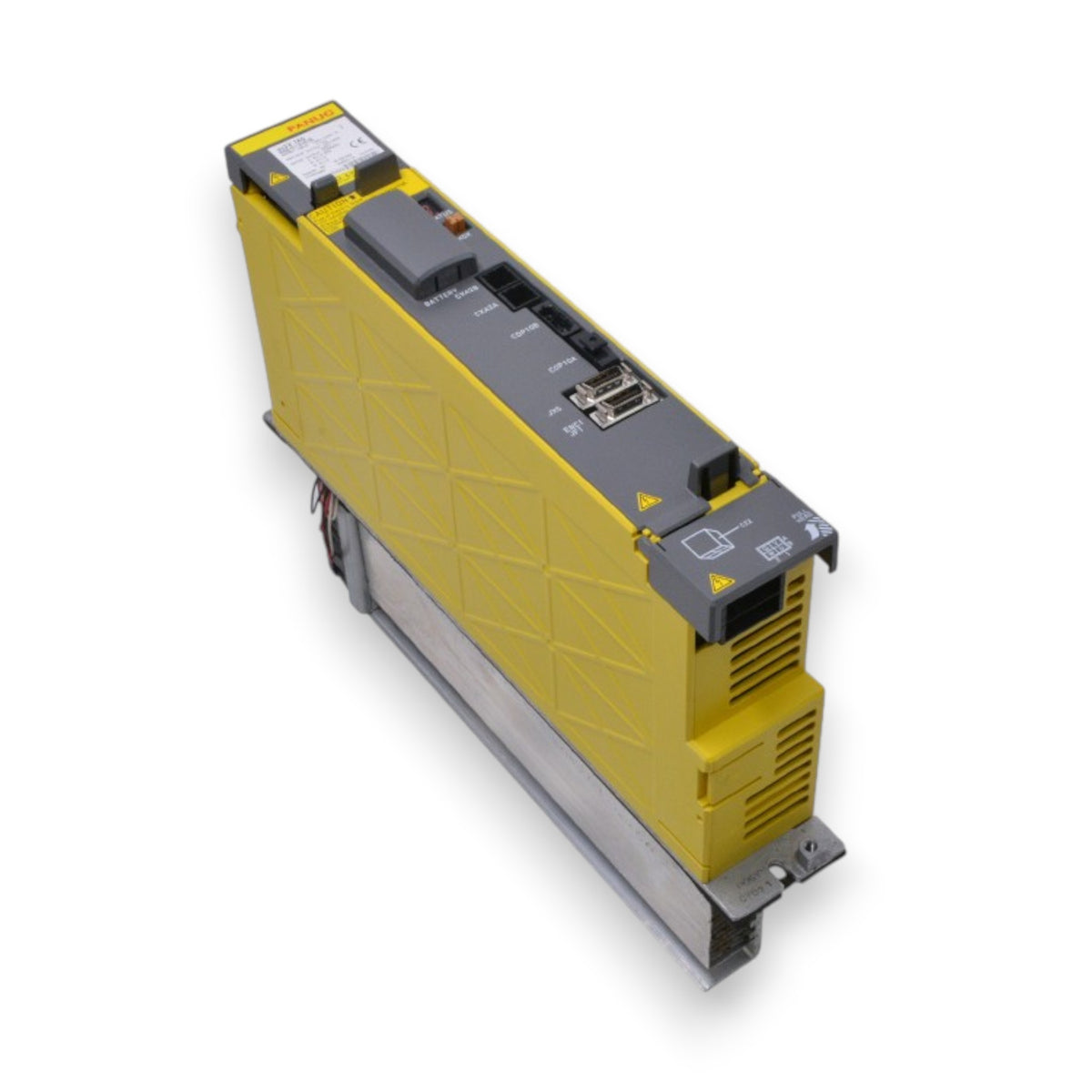

Fanuc ai Servo Amplifier 200VAC-input A06B-6114-H106

A06B-6114-H106 is a servo amplifier module used in CNC machines manufactured by FANUC.

---

📌 Basic Information

• Part Number: A06B-6114-H106

• Type: Servo Amplifier Module

• Series: FANUC αi (Alpha-i) Servo Amplifier Series

• Model: SVM1-160i / aiSV-160

• Category: Axis drive unit for CNC machines

---

⚙️ Main Function

The A06B-6114-H106 servo amplifier converts commands from the CNC controller into electrical power to drive servo motors.

It performs:

• Position control of machine axes

• Speed and torque control for servo motors

• Encoder feedback processing

• Communication with the CNC through FSSB (Fiber Serial Servo Bus)

These functions allow precise motion control of machine axes such as X, Y, Z, or rotary axes.

---

🔧 Key Technical Specifications

• Model: SVM1-160i

• Rated output current: about 45 A

• Input voltage: approx. 200–230 V AC (3-phase)

• Cooling: internal fan cooling

• Mounting: panel mount in CNC cabinet

• Supported motors: FANUC αi series servo motors

---

🧩 Typical Applications

This servo amplifier is used in:

• CNC machining centers

• CNC lathes

• Robotic systems

• Industrial automation machines requiring high-precision multi-axis motion control

---

✅ Simple explanation:
A06B-6114-H106 = FANUC Alpha-i servo amplifier (SVM1-160i) that powers and controls CNC machine axis motors.
