Fanuc ai Servo Amplifier 200VAC-input A06B-6114-H205

🔧 Model Overview

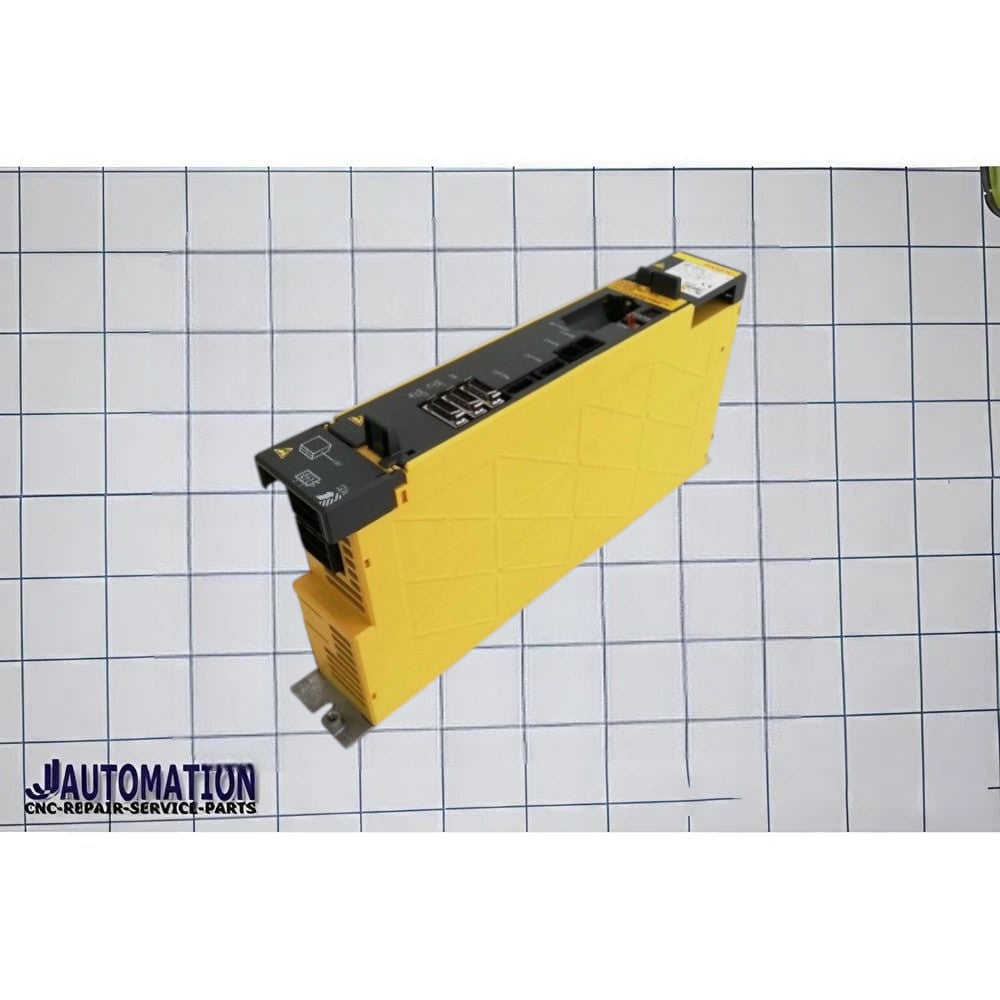

A06B-6114-H205 is a FANUC Alpha i Servo Amplifier Module.

• Series: Alpha i (αi)
• Model: SVM2-20/20i
• Type: AC Servo Amplifier (Drive)
• Axes: 2-axis (dual servo control)

---

⚙️ Function

This module is used in CNC machines to:

• Drive servo motors (axis control)
• Control position, speed, and torque
• Communicate with CNC via FSSB (fiber optic serial bus)

👉 In simple terms:
It is the power + control unit for CNC machine axis motors.

---

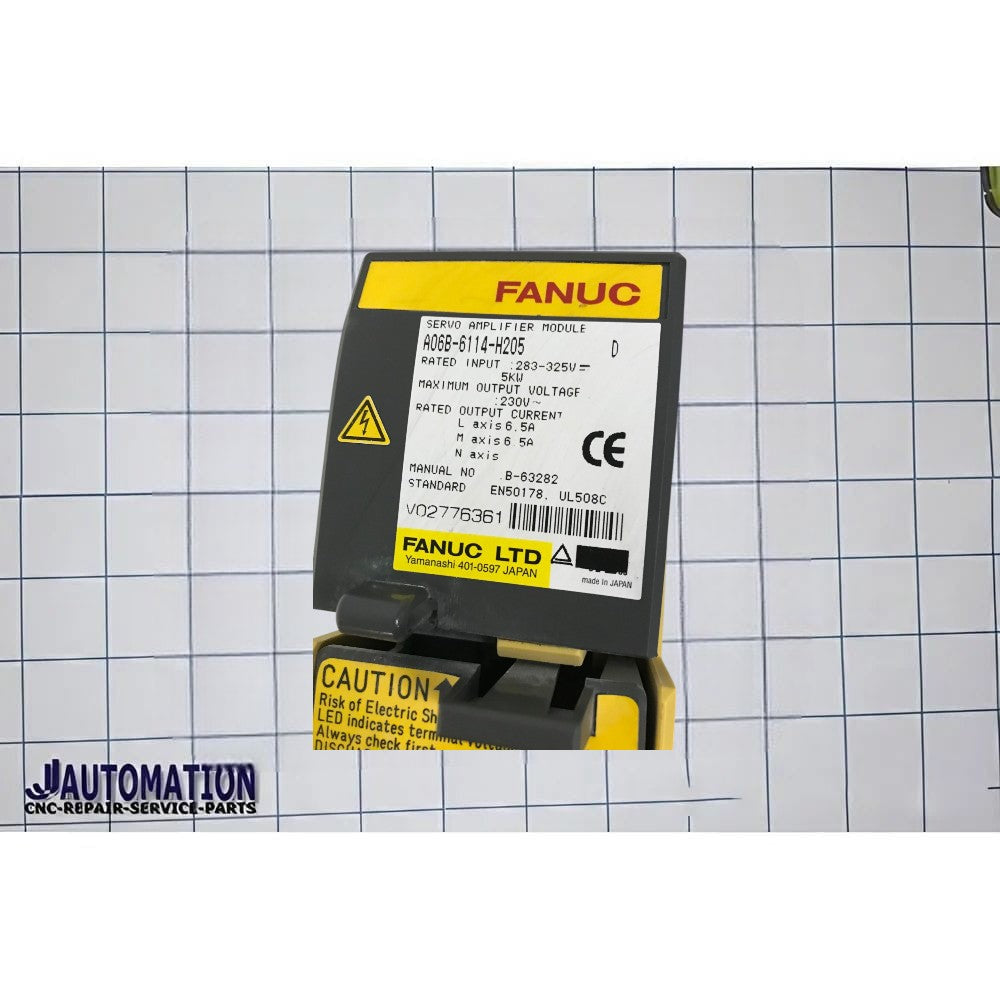

🔩 Key Specifications

• Input Voltage: 283–339 V AC (approx.)
• Output Voltage: Up to ~240 V
• Output Current: ~6.5 A per axis
• Power Rating: ~2.5–5 kW (varies by source/config)
• Axes: 2-axis (L & M channels)
• Cooling: Forced air cooling

---

🏭 Applications

• CNC machining centers
• CNC lathes
• Milling machines
• Robotics & automation systems

---

🔍 Important Notes

• Model designation “20/20” indicates higher capacity compared to smaller models (like H201)
• Designed for medium to high power servo motors
• Widely used in industrial CNC control cabinets

---

🧠 Simple Comparison (vs H201)

• • H201 → Lower capacity (smaller current rating)
  • H205 → Higher capacity (20/20 class, more powerful axes)
