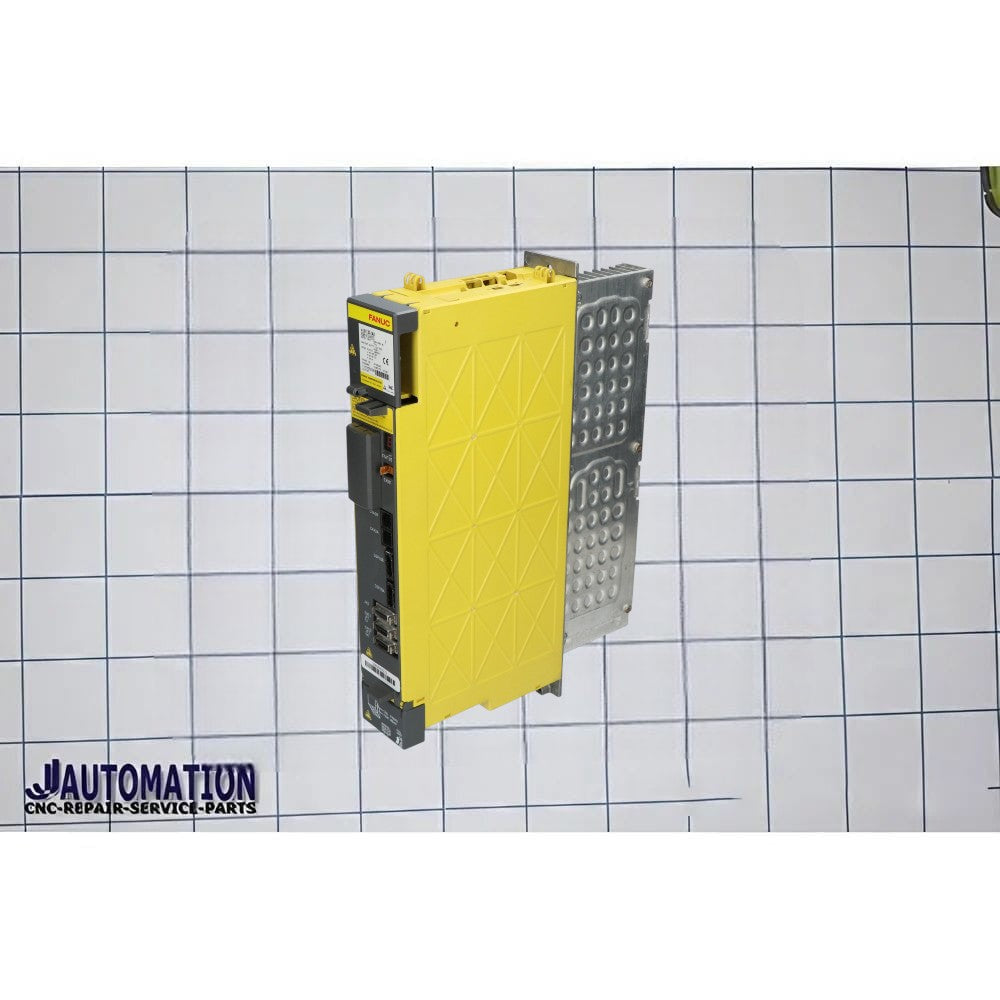

Fanuc ai Servo Amplifier 200VAC-input A06B-6114-H206

🔧 Model Overview

A06B-6114-H206 is a FANUC Alpha i Servo Amplifier Module.

• Series: Alpha i (αi)
• Model: SVM2-20/40i
• Type: AC Servo Amplifier (Drive)
• Axes: 2-axis (dual servo amplifier)

---

⚙️ What It Does

This module is used in CNC systems to:

• Drive servo motors (axis movement)
• Control position, speed, and torque
• Communicate with CNC via FSSB (fiber optic bus)

👉 In simple terms:
It powers and precisely controls two CNC machine axes.

---

🔩 Key Specifications

• Input Voltage: 283–339 V AC (3-phase)
• Output Voltage: Up to ~240 V
• Output Current:
  • L-axis: ~6.5 A
  • M-axis: ~13 A
• Power Rating: ≈ 7 kW
• Axes: 2-axis (L & M channels)

---

🏭 Key Features

• Model designation: 2-20/40i
  • One medium-load axis (20)
  • One higher-load axis (40)
• Designed for high-load applications
• High reliability and precision (industrial-grade)
• Fully tested under maximum rated load conditions

---

📦 Applications

• CNC machining centers
• CNC lathes
• Heavy-duty axis drives
• Industrial automation systems
