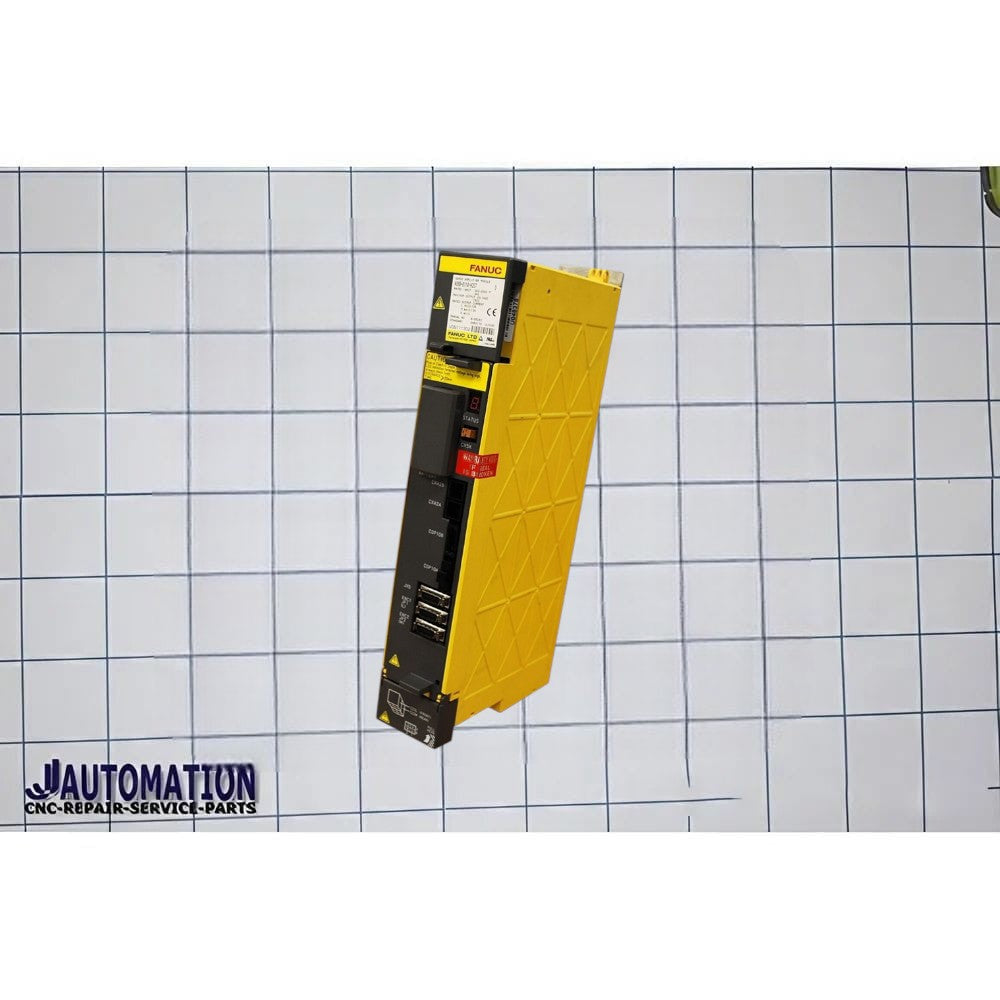

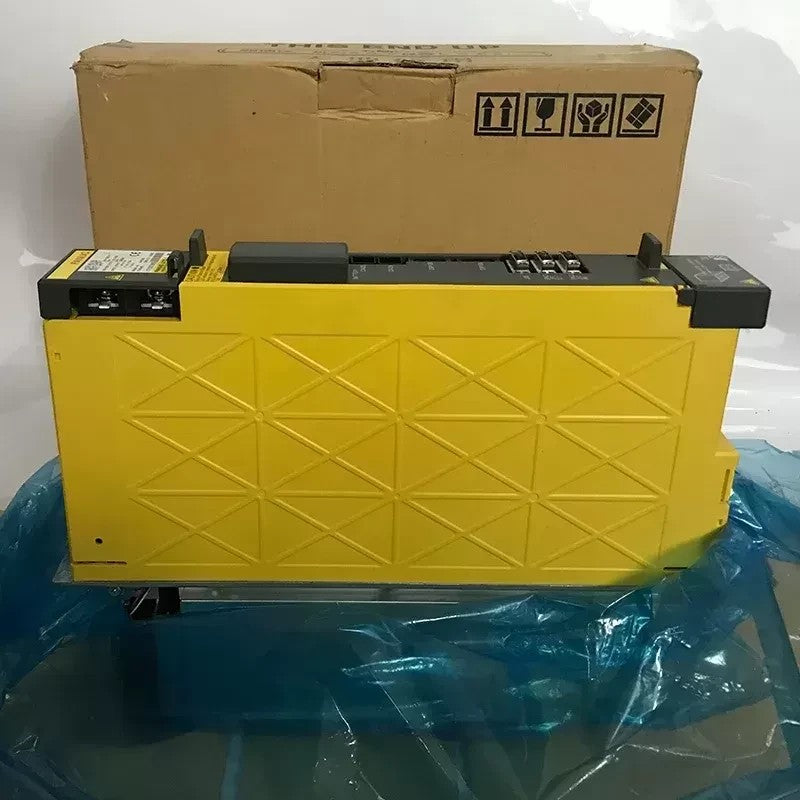

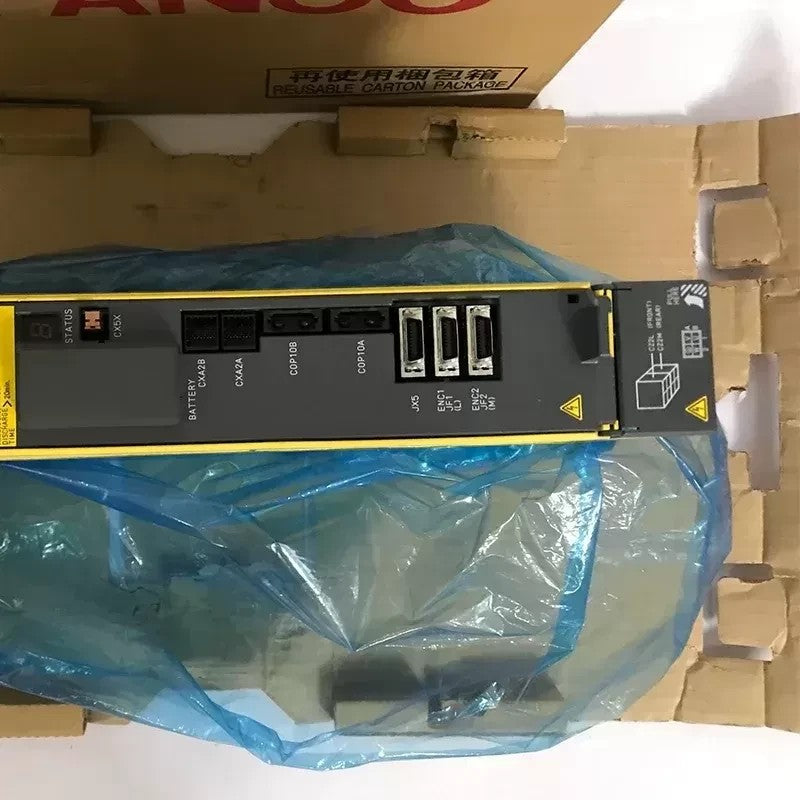

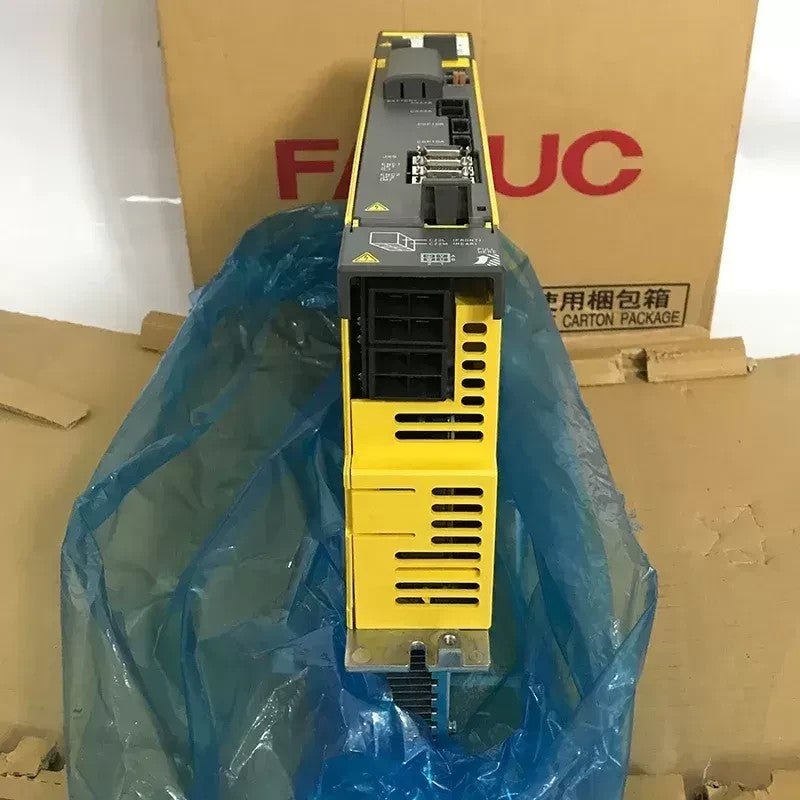

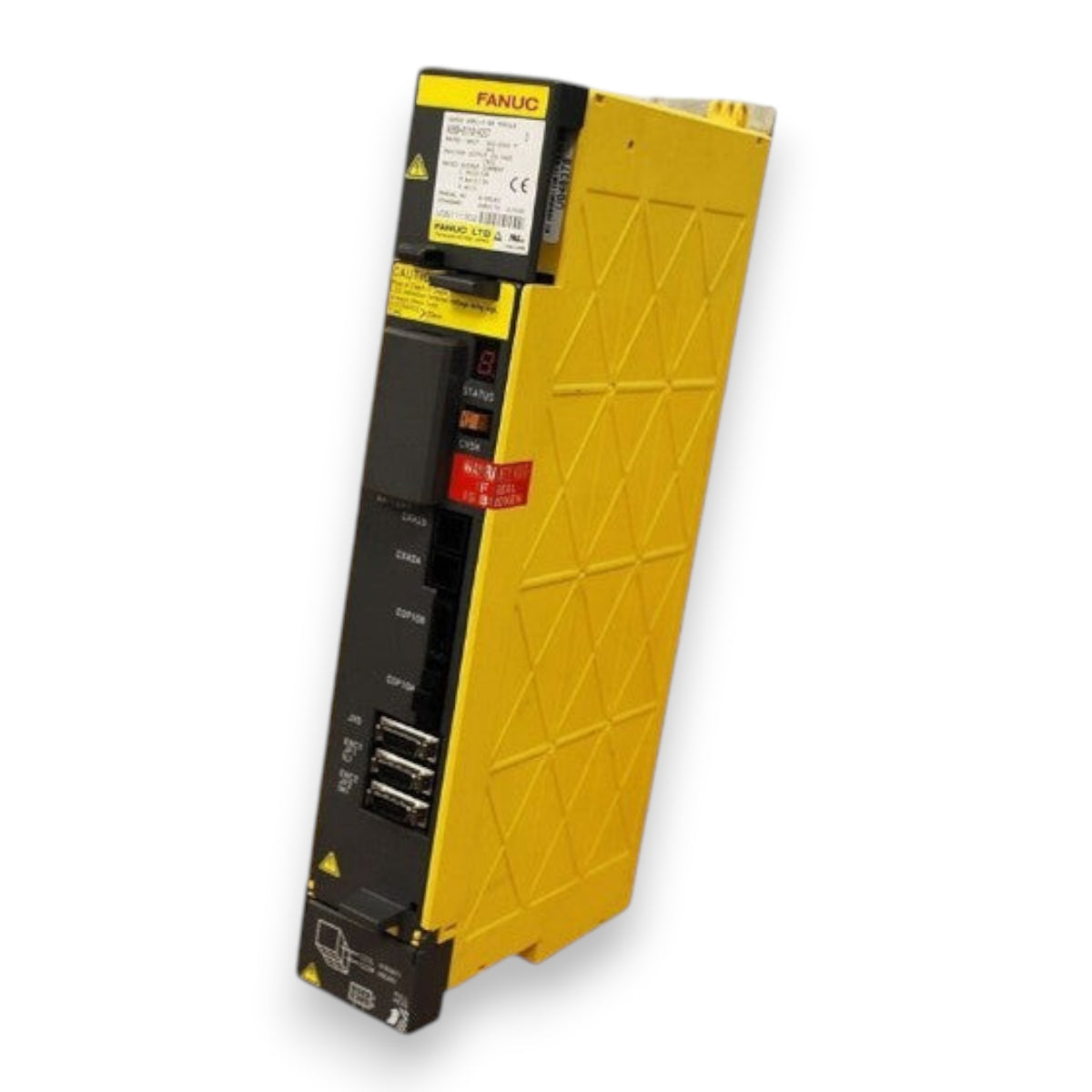

Fanuc αi Servo Amplifier 200VAC-input A06B-6114-H207

🔧 Model Overview

A06B-6114-H207 is a FANUC Alpha i Servo Amplifier Module.

• Series: Alpha i (αi)
• Model: SVM2-40/40i
• Type: AC Servo Amplifier (Drive)
• Axes: 2-axis (dual-axis servo drive)

---

⚙️ What It Does

This module is used in CNC systems to:

• Drive two servo motors simultaneously
• Control position, speed, and torque
• Communicate with CNC via FSSB (fiber optic serial bus)

👉 Simple meaning:
It is a high-power dual-axis drive for CNC machine motion control.

---

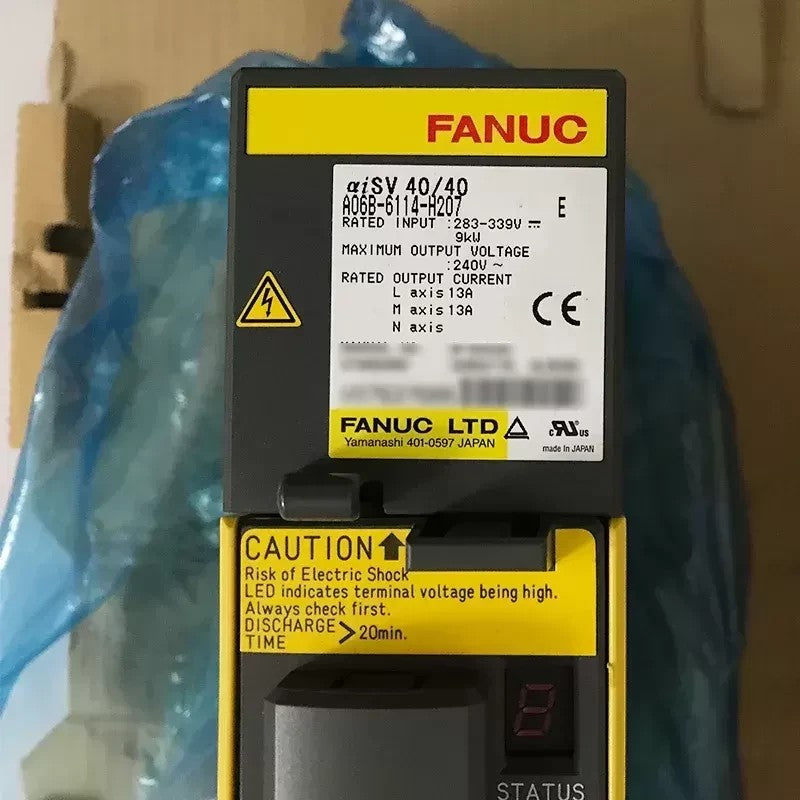

🔩 Key Specifications

• Input Voltage: ~200–240 V AC / up to 283–339 V range
• Output Voltage: ~240 V
• Rated Power: ≈ 9 kW
• Output Current:
  • L-axis: ~13 A
  • M-axis: ~13 A
• Axes: 2-axis (equal capacity on both channels)
• Cooling: Fan-cooled

---

🏭 Key Features

• Model type: 40/40 → both axes high capacity
• Designed for heavy-duty servo applications
• High precision and fast response
• Built-in protections:
  • Overcurrent
  • Overvoltage
  • Thermal protection
• Compact modular design for CNC cabinets

---

📦 Applications

• CNC machining centers
• CNC lathes
• Heavy axis drives (e.g., large X/Z axes)
• Industrial automation & robotics
