Description
🔧 Model Overview

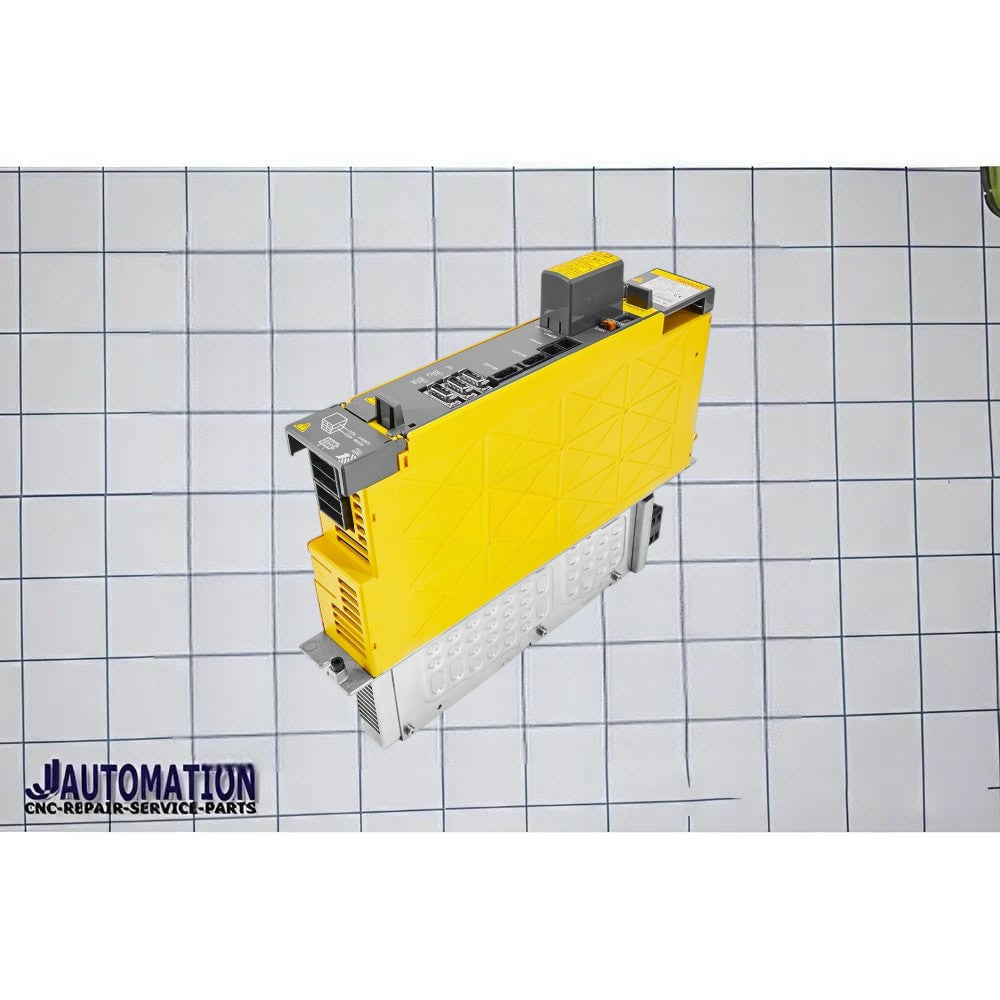

A06B-6114-H208 is a high-capacity Alpha i Servo Amplifier Module from FANUC.
- Series: Alpha i (αi)
- Model: SVM2-40/80i
- Type: AC Servo Amplifier (Drive)
- Axes: 2-axis (dual-channel)
⚙️ Full Technical Description
👉 A06B-6114-H208 = 2-axis servo amplifier with unequal high power (40/80 class)
- Controls two servo motors simultaneously
- Provides position, speed, and torque control
- Uses FSSB (fiber optic servo communication)
- Designed for heavy-duty CNC axis control
🔩 Key Specifications
- Model type: 40/80
- L-axis: ~13 A
- M-axis: ~19 A
- Configuration: Dual-axis (L & M channels)
- Cooling: Fan + heatsink (forced cooling)
- Size: ~60 mm module width
- Series: A06B-6114 (αi servo system)
🏭 Applications
- CNC machining centers
- CNC lathes
- Robotics & automation systems
- Heavy-axis drives (Z-axis, rotary tables, large loads)
🔍 Key Features
- Largest capacity in this 2-axis range
- Supports mixed load axes (one very high power)
- High precision + fast response
- Designed for continuous industrial operation
- Compatible with αi servo motors & FANUC CNC controls
📊 Quick Comparison Insight
| Model | Capacity Type | Use Case |
|---|---|---|
| H205 | 20 / 20 | Medium load both axes |
| H206 | 20 / 40 | One heavy axis |
| H207 | 40 / 40 | Both heavy axes |
| H208 | 40 / 80 | One very heavy axis (highest power) |
