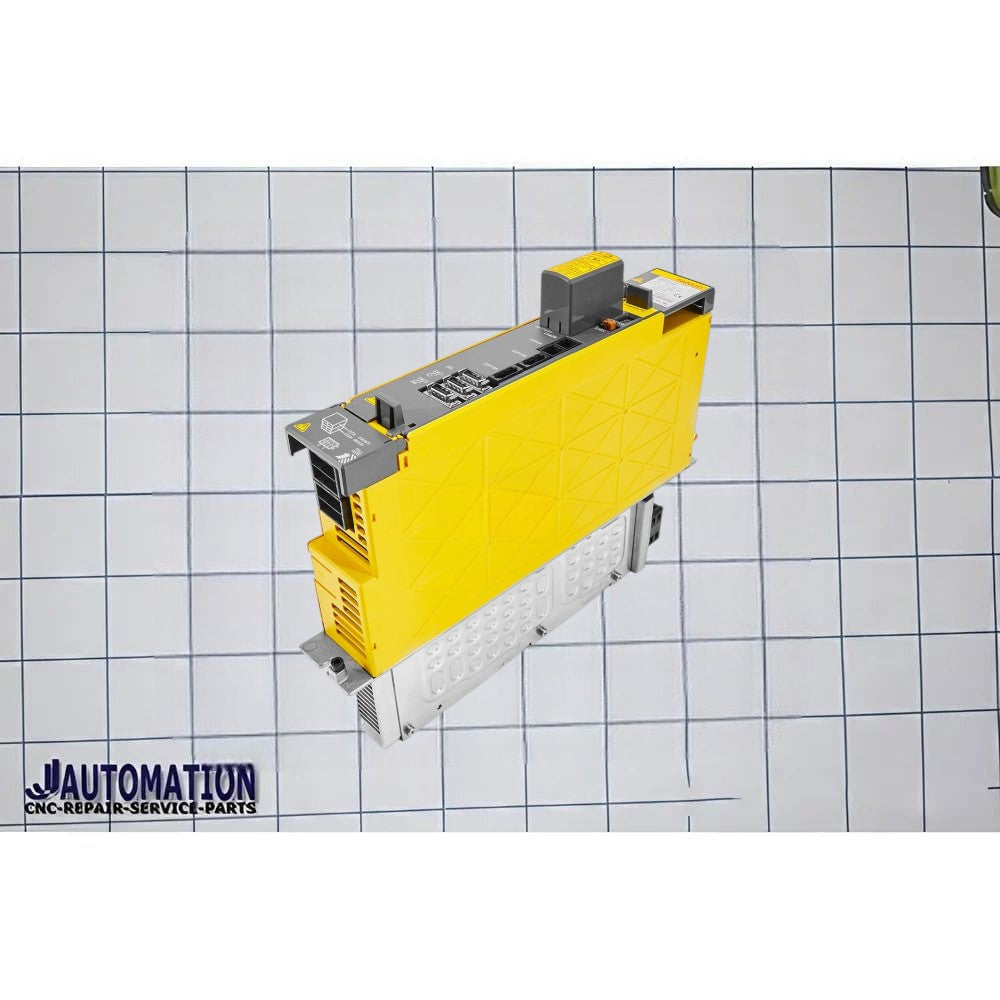

Fanuc ai Servo Amplifier 200VAC-input A06B-6114-H209

🔧 Model Overview

A06B-6114-H209 is a high-capacity FANUC Alpha i Servo Amplifier Module.

• Series: Alpha i (αi)
• Model: SVM2-80/80i
• Type: AC Servo Amplifier (Drive)
• Axes: 2-axis (dual-axis control)

---

⚙️ Full Technical Description

👉 A06B-6114-H209 = 2-axis high-power servo amplifier (80/80 class)

• Controls two servo motors simultaneously
• Provides precise position, speed, and torque control
• Communicates via FSSB (fiber optic servo bus)
• Designed for heavy-duty CNC applications

---

🔩 Key Specifications

• Model type: 80 / 80 (both axes equal high capacity)
• Input Voltage: 283–339 V AC (~11 kW)
• Output Voltage: Up to ~240 V
• Output Current:
  • L-axis: ~19 A
  • M-axis: ~19 A
• Configuration: 2-axis (L & M channels)
• Series: A06B-6114 (αi servo system)
• Cooling: Fan-cooled (internal + external fans)

---

🏭 Applications

• CNC machining centers
• CNC lathes
• Heavy-duty axis drives (large X, Z axes)
• Industrial automation systems

---

🔍 Key Features

• Highest capacity model in 6114 2-axis range
• Equal power on both axes → ideal for dual heavy-load axes
• High precision + fast dynamic response
• Reliable under maximum rated load conditions
• Compatible with FANUC i-series CNC controls

---

🧠 Simple Explanation

👉 A06B-6114-H209 = very powerful dual-axis servo drive where both axes can handle heavy loads equally (80/80 class)
