🔧 Model Overview
A06B-6114-H210 is a high-power dual-axis servo amplifier module manufactured by FANUC.
⚙️ Full Technical Description

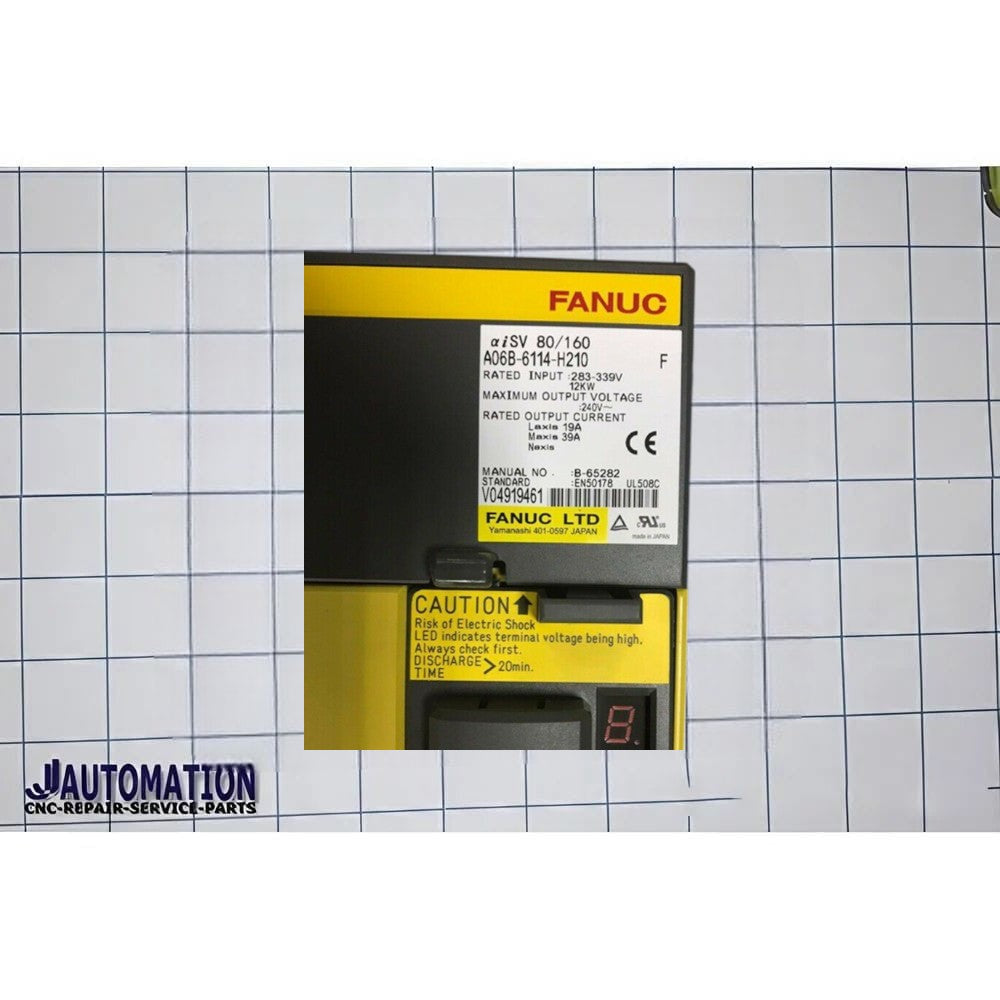

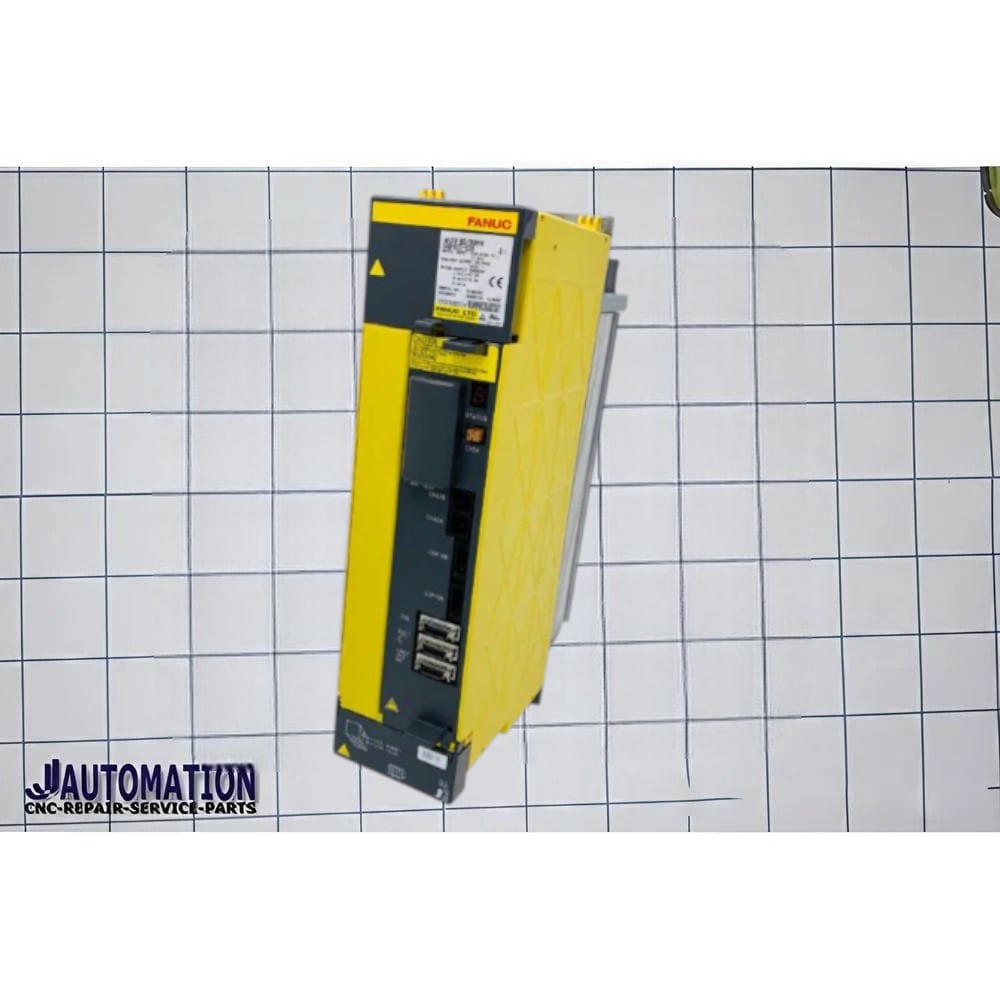

👉 A06B-6114-H210 = Alpha i Servo Amplifier (SVM2-80/160i), 2-axis
- Series: Alpha i (αi) Servo System
- Model: SVM2-80/160i
- Type: AC Servo Amplifier / Drive
- Axes: 2-axis (L & M channels)
This module is used in CNC machines to:
- Drive two servo motors simultaneously
- Control position, speed, and torque
- Interface with CNC via FSSB (fiber optic communication)
🔩 Key Specifications
- Input Voltage: 283–339 V AC (3-phase)
- Power Rating: ≈ 12 kW
- Output Voltage: Up to 240 V
- Output Current:
- L-axis: ~19 A
- M-axis: ~39 A
- Configuration: 80 / 160 capacity (mixed high-power axes)
🏭 Key Features
- Dual-axis high-performance amplifier
- Supports unequal heavy-load axes
- One axis: 80 class (high power)
- One axis: 160 class (very high power)
- Designed for precision CNC motion control
- Compatible with FANUC CNC systems (15i, 16i, 18i, 0i series, etc.)
- High reliability for continuous industrial operation
📦 Applications
- CNC machining centers
- CNC lathes
- Heavy-duty Z-axis / gantry axes
- Industrial automation systems
📊 Position in 6114 Series
| Model | Capacity |
|---|---|
| H207 | 40 / 40 |
| H208 | 40 / 80 |
| H209 | 80 / 80 |
| H210 | 80 / 160 (very high power) |
🧠 Simple Explanation
👉 A06B-6114-H210 is a powerful 2-axis servo drive where one axis can handle extremely heavy loads (160 class), making it ideal for large or vertical CNC axes.
