Fanuc ai Servo Amplifier 200VAC-input A06B-6114-H304

🔧 FANUC A06B-6114-H304 – 3-Axis Alpha i Servo Amplifier

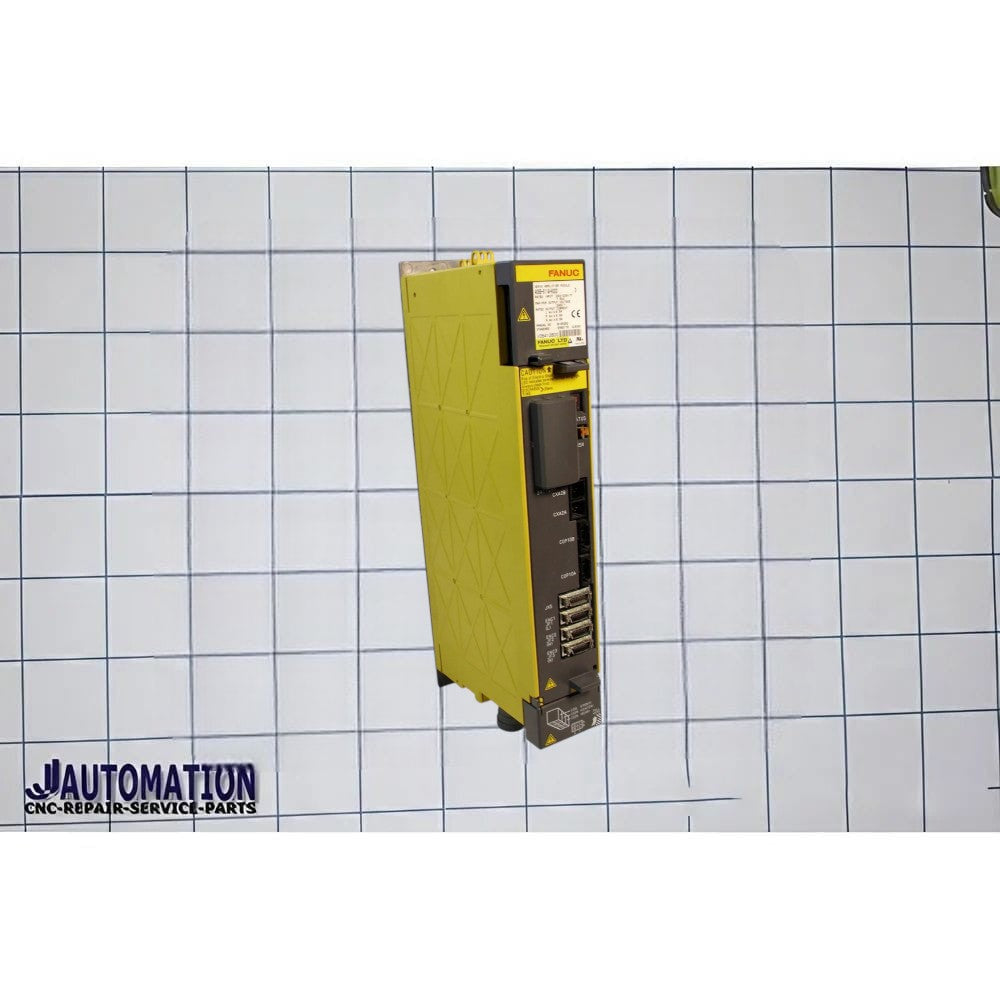

FANUC A06B-6114-H304 Servo Amplifier

---

🧠 Model Description

A06B-6114-H304 is a FANUC Alpha i (αi) servo amplifier module designed for 3-axis control. It belongs to the 6114 series and is typically identified as:

👉 SVM3-20/20/40i (3-axis servo module)

---

⚙️ Key Technical Details

• Type: AC Servo Amplifier
• Series: Alpha i (αi)
• Axes: 3 axes (triple-axis)
• Model: SVM3-20/20/40i
• Configuration:
  • Axis 1 → 20A class
  • Axis 2 → 20A class
  • Axis 3 → 40A class
• Interface: FSSB (fiber optic communication)

---

⚙️ What It Does

This amplifier:

• Drives three servo motors simultaneously
• Provides:
  • Position control
  • Speed control
  • Torque control
• Handles mixed load axes (two medium + one higher power axis)
• Synchronizes motion across axes for CNC machining

👉 Simple explanation:
One amplifier controls 3 axes, where one axis needs higher power than the others.

---

🏭 Applications

• CNC machining centers (X, Y, Z axes with heavier Z or spindle feed axis)
• CNC milling machines
• Industrial automation systems with uneven axis load requirements

Commonly paired with:

• FANUC 0i / 16i / 18i / 21i controllers
• αi series servo motors

---

🔍 Key Features

• ✔ 3-axis integrated amplifier (space saving)
• ✔ Mixed current rating (20/20/40) → flexible axis sizing
• ✔ High precision motion control
• ✔ Fiber optic CNC communication (FSSB)
• ✔ Compatible with internal boards like:
  • A16B-2203 series (logic PCBs)
  • A20B-2101 series (control boards)

---

⚠️ Important Notes

• H304 = 3-axis module (SVM3 type)
• “20/20/40” means:
  • Two standard axes
  • One higher power axis (usually Z-axis or heavy load axis)
• Requires proper matching with:
  • Servo motors
  • Power supply module (PSM)
• Often repaired/refurbished instead of replaced

---

🧠 Simple Explanation

👉 A06B-6114-H304 is a 3-axis FANUC servo amplifier where two axes are medium power and one axis is higher power, allowing it to handle uneven load requirements in CNC machines.
