Description

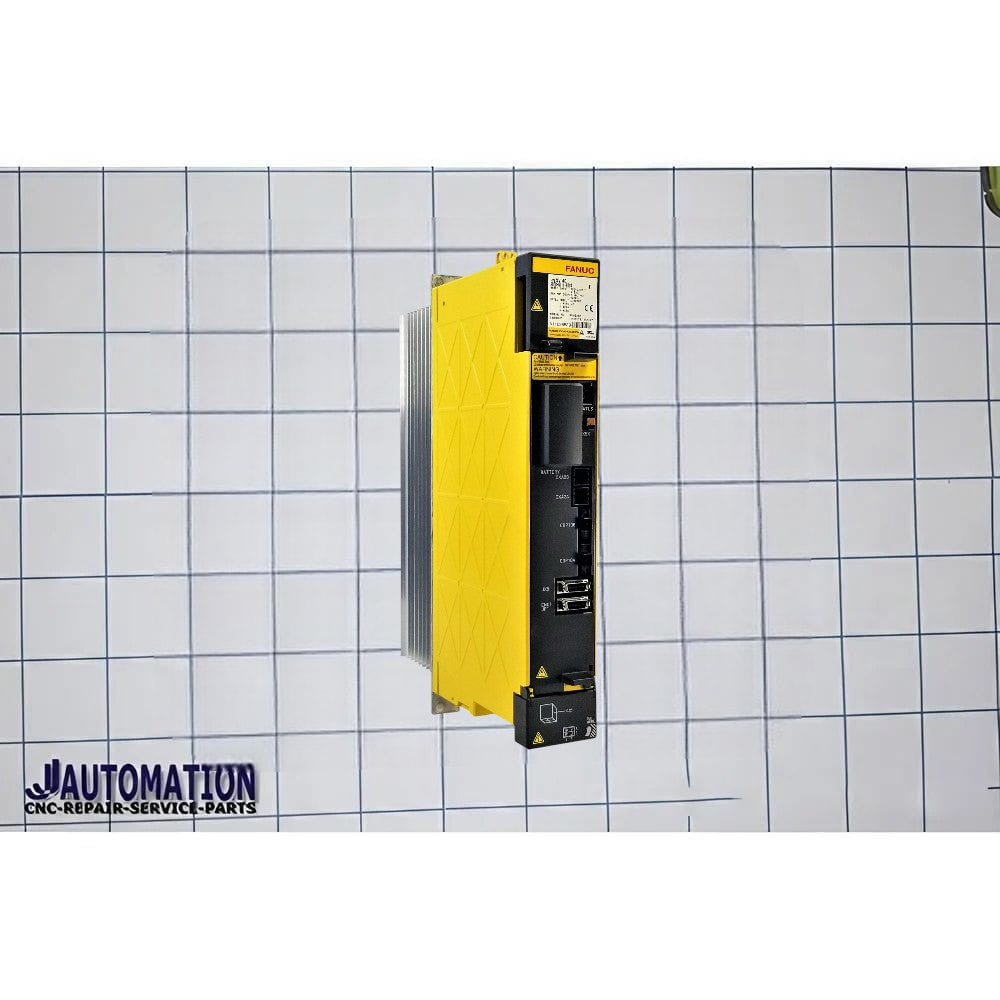

A06B-6117-C104 is a part of the FANUC αi (Alpha i) series servo amplifier modules used in CNC and industrial automation systems.
🔧 Description
The A06B-6117-C104 is a servo amplifier module designed to control and drive servo motors with high precision. It converts electrical input power into controlled output for motor motion—managing position, speed, and torque in CNC machines.
⚙️ General Description (Series-Based)
Although the exact suffix (C104) variant details may vary slightly, modules in the A06B-6117 series share these core characteristics:
-
Type: Servo Amplifier (αi Series)
-
Function: Drives servo motors for axis movement
-
Control Modes: Position, speed, and torque control
-
Input Supply: Typically 200–240V AC (3-phase)
-
Output: Controlled AC power to servo motors
-
Cooling: Built-in fan / forced air
-
Mounting: Panel or rack-mounted module
🚀 Key Features
-
High-precision motion control for CNC axes
-
Compact, modular design for multi-axis systems
-
Built-in diagnostics for fault detection
-
Energy-efficient with regenerative power handling
-
Seamless integration with FANUC CNC controllers
🏭 Applications
Used in:
-
CNC machining centers
-
Lathes and milling machines
-
Robotics and automation lines
-
Multi-axis motion control systems
🧠 Simple Explanation
Think of it as the “muscle controller” of a CNC machine:
-
CNC = brain
-
Servo motor = muscle
-
A06B-6117-C104 = the driver that makes the muscle move precisely
