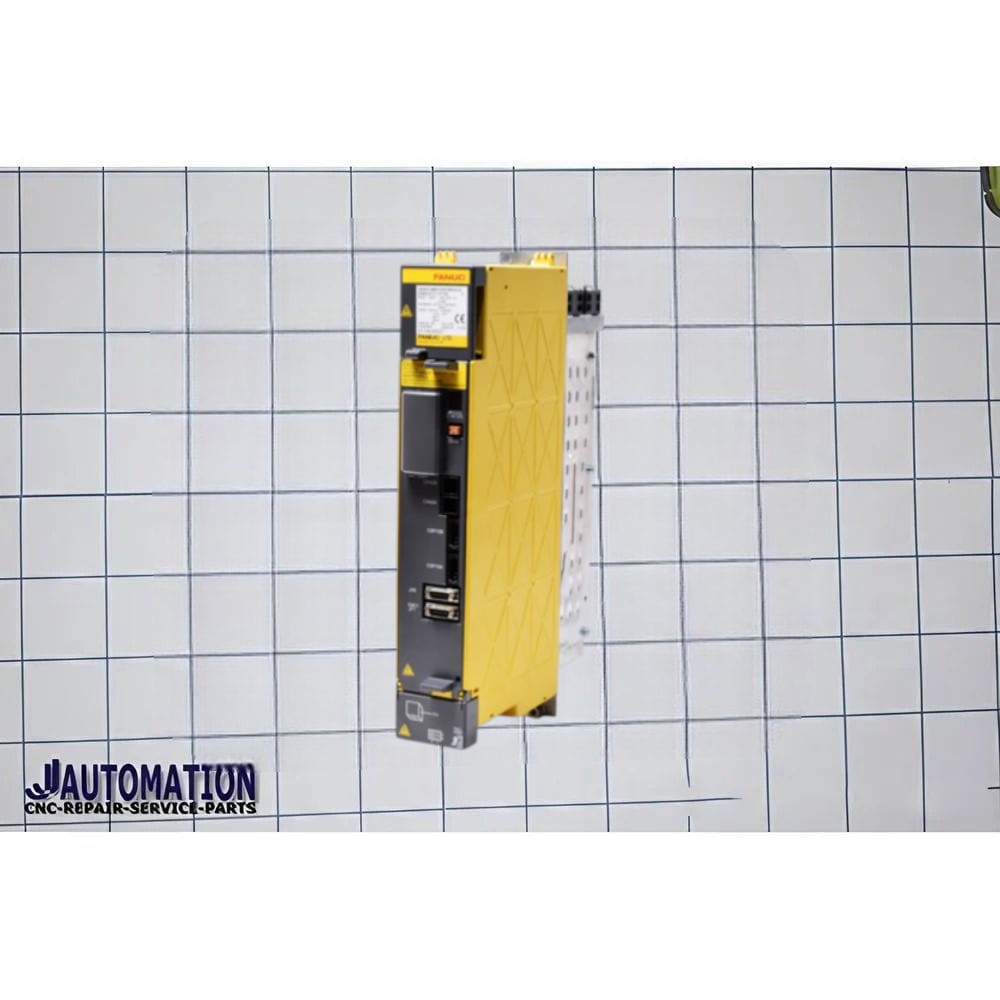

🔧 A06B-6117-C106 — Description
The A06B-6117-C106 is a unit specification (internal module) of a FANUC αi (Alpha i) servo amplifier, specifically associated with the SV 160 class amplifier.
⚙️ Identification
-
Manufacturer: FANUC
-
Series: αi Servo Amplifier Series
-
Unit Type: Servo amplifier internal unit (C-type)
-
Associated Model:
👉 A06B-6117-H106 (complete amplifier) -
Servo Class: αiSV 160 (high-power class)
🔍 What “C106” Means
In FANUC part numbering:
-
H106 → Complete servo amplifier module
-
C106 → Internal unit / configuration / drive section of that module
So:
👉 A06B-6117-C106 = internal build specification of the SV160 servo amplifier
⚡ Technical Description (SV160 Class)
Typical characteristics of this class include:
-
Type: High-power servo amplifier
-
Input: ~200–240V AC (3-phase)
-
Power Range: Around 5.5 kW (continuous) or higher class variants
-
Output Current: High-current output for large servo motors
-
Control Modes:
-
Position control
-
Speed control
-
Torque control
-
-
Communication: FANUC high-speed servo bus (FSSB)
-
Cooling: Forced air (fan-cooled)
🚀 Key Functions
-
Drives large-capacity servo motors
-
Provides high torque and fast dynamic response
-
Enables precision motion control in CNC axes
-
Includes protection features (overcurrent, overvoltage, temperature, etc.)
🏭 Applications
Used in:
-
Heavy-duty CNC machining centers
-
Large lathes and milling machines
-
Multi-axis industrial automation
-
Robotics and high-load motion systems
🧠 Simple Explanation
-
C106 = internal drive unit
-
H106 = full servo amplifier (SV160 class)
👉 It’s basically the core power/control section of a high-capacity FANUC servo drive.
