🔧 A06B-6117-C109 — Description

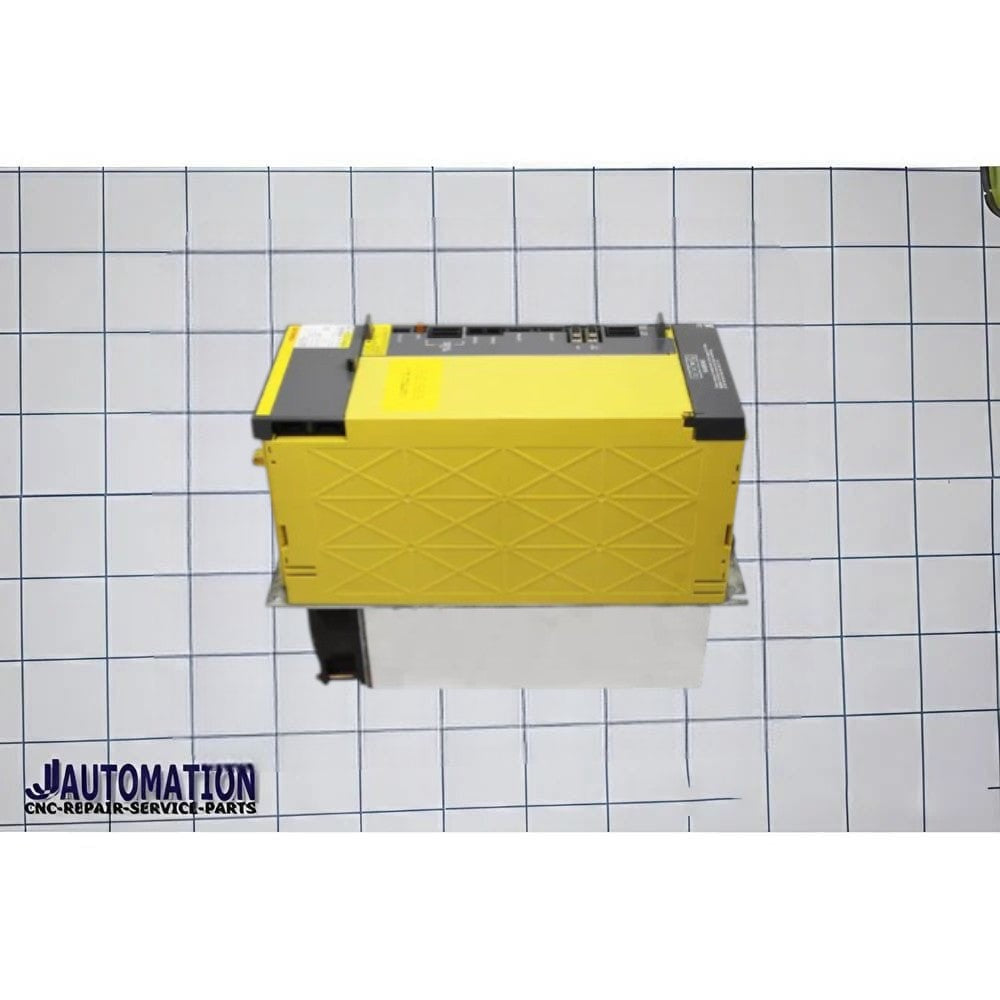

The A06B-6117-C109 is a FANUC αi (Alpha i) servo amplifier internal unit (C-type), corresponding to a higher-capacity servo amplifier module in the A06B-6117 series.
⚙️ Identification
-
Manufacturer: FANUC
-
Series: αi Servo Amplifier Series
-
Type: Internal unit / configuration (C-version)
-
Associated Complete Module:
👉 A06B-6117-H109 -
Servo Class: αiSV 320 (high-power class)
🔍 What “C109” Represents
FANUC part structure:
-
H109 → Complete servo amplifier (assembled unit)
-
C109 → Internal drive/power unit specification
👉 So, A06B-6117-C109 is the internal configuration of an SV320 class servo amplifier.
⚡ Technical Overview (SV320 Class)
Typical characteristics:
-
Power Class: ~11–15 kW range (high capacity)
-
Input Supply: 200–240V AC (3-phase)
-
Output Current: High-current output for large servo motors
-
Control Modes:
-
Position
-
Speed
-
Torque
-
-
Communication: FANUC FSSB (high-speed fiber servo bus)
-
Cooling: Forced air (fan-cooled)
🚀 Key Features
-
Designed for heavy-duty servo applications
-
High torque and fast dynamic response
-
Stable operation under high load conditions
-
Built-in protections (overload, overcurrent, overheating)
-
Modular integration with multi-axis FANUC drive systems
🏭 Applications
Commonly used in:
-
Large CNC machining centers
-
Heavy-duty milling and boring machines
-
High-load axis drives (e.g., Z-axis, large gantry systems)
-
Industrial automation requiring high torque
🧠 Simple Explanation
-
C109 = internal power/control unit
-
H109 = full amplifier (SV320 class)
👉 It’s the core “engine” inside a high-power FANUC servo drive used for big motors and heavy loads.
🔄 Quick Context (Comparison Insight)
-
C104 → Small capacity
-
C105 → Medium (SV80)
-
C106 → Higher (SV160)
-
C109 → Very high (SV320)
