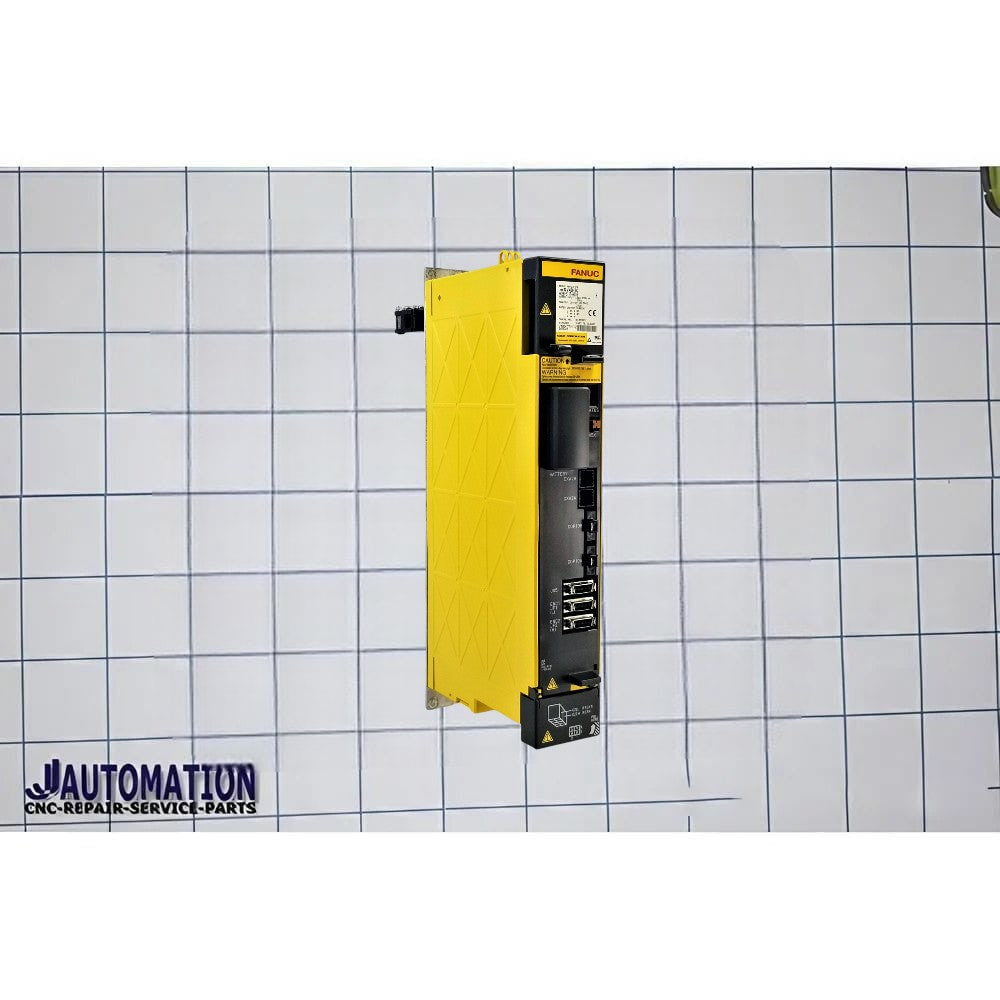

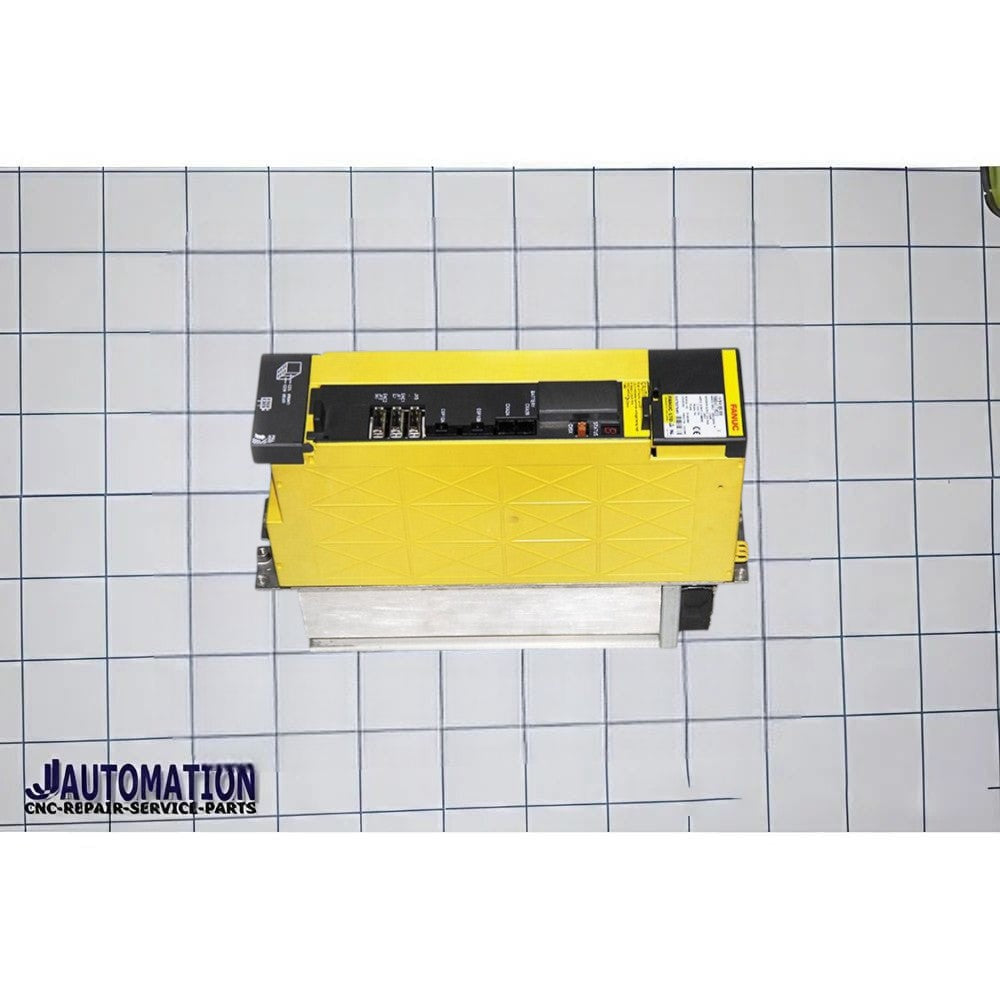

Fanuc ai Servo Amplifier 200VAC-input A06B-6117-C210

🔧 Model Overview

A06B-6117-C210 is a FANUC Alpha i (αi) spindle amplifier module in the 6117-C series, designed for ultra high-power CNC spindle applications.

It is used for driving very large main spindle or C-axis motors in heavy-duty CNC machines that require extreme torque and precise control.

---

⚙️ Full Technical Description

👉 A06B-6117-C210 = Alpha i Spindle Amplifier (SPM-75 type)

• Series: Alpha i (αi) Spindle System
• Type: AC Spindle Amplifier / Drive
• Model Class: SPM-75 (ultra high-power spindle amplifier)
• Function: Controls spindle rotation, torque, and orientation

---

⚙️ What It Does

This module:

• Drives very high-power spindle motors
• Controls speed, torque, and spindle orientation
• Supports rigid tapping and synchronous spindle + axis motion
• Interfaces with FANUC CNC via FSSB (fiber optic bus)

👉 Simple explanation:
It converts CNC spindle commands into precise, high-torque rotation for very heavy-duty machining.

---

🔩 Key Specifications (Typical)

• Model Type: SPM-75
• Power Class: Ultra high spindle capacity
• Input Voltage: ~283–339 V AC (3-phase)
• Output Voltage: ~200–240 V
• Cooling: Forced-air (fan-cooled)
• Feedback: Spindle encoder supported for precise orientation

---

🏭 Applications

• Large CNC machining centers
• Heavy-duty CNC lathes
• Gantry or vertical machining systems
• Industrial machines requiring maximum spindle torque and speed

---

🔍 Key Features

• ✔ Ultra high-power spindle amplifier
• ✔ Supports rigid tapping & spindle orientation
• ✔ High precision speed and torque control
• ✔ Stable performance under extreme machining loads
• ✔ Compatible with FANUC αi spindle motors

---

📊 Position in A06B-6117-C Spindle Series
