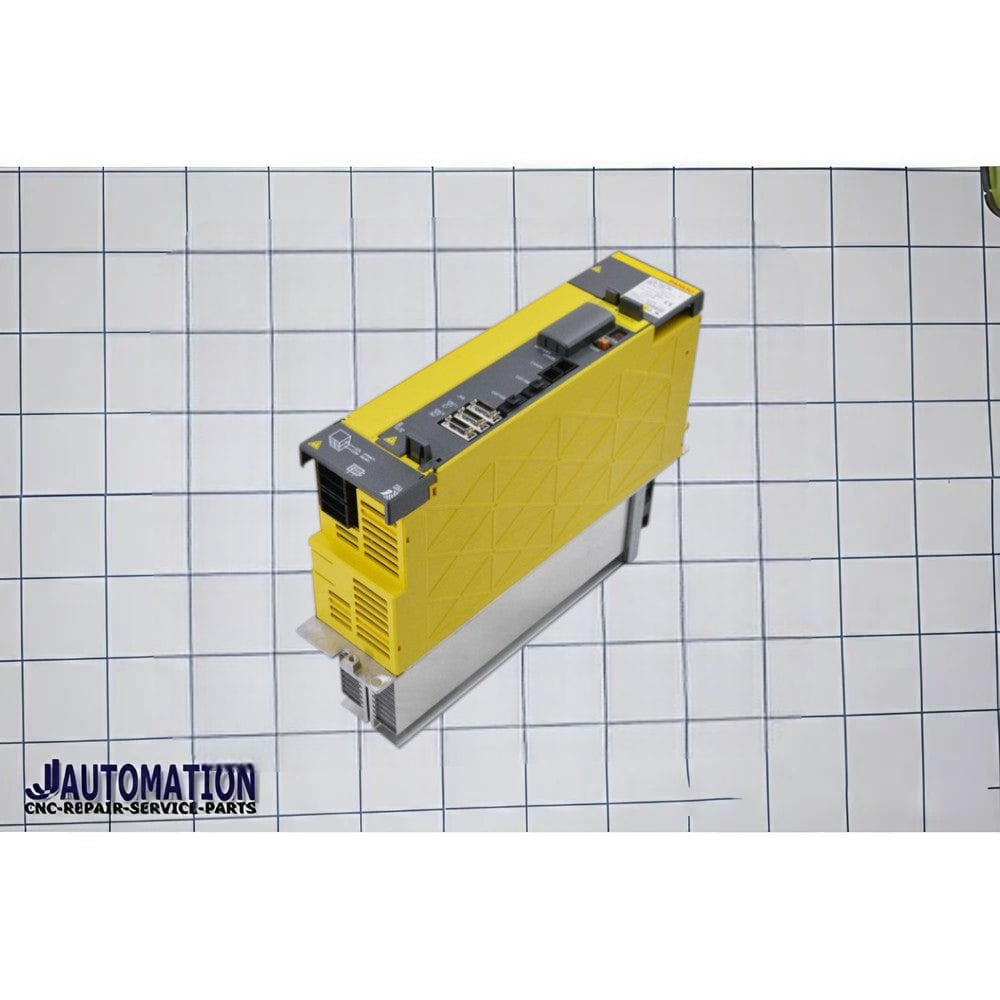

Fanuc ai Servo Amplifier 200VAC-input A06B-6117-C211

🔧 Model Overview

A06B-6117-C211 is a FANUC Alpha i (αi) spindle amplifier module in the 6117-C series, designed for extreme high-power CNC spindle applications.

It is one of the most powerful spindle amplifiers in the 6117-C lineup, intended for very large main spindle or C-axis motors in heavy-duty CNC machines.

---

⚙️ Full Technical Description

👉 A06B-6117-C211 = Alpha i Spindle Amplifier (SPM-90 type)

• Series: Alpha i (αi) Spindle System
• Type: AC Spindle Amplifier / Drive
• Model Class: SPM-90 (extreme high-power spindle amplifier)
• Function: Controls spindle rotation, torque, and orientation

---

⚙️ What It Does

This module:

• Drives very large, high-torque spindle motors
• Controls speed, torque, and spindle orientation
• Supports rigid tapping and synchronized spindle + axis motion
• Interfaces with FANUC CNC via FSSB (fiber optic bus)

👉 Simple explanation:
It converts CNC spindle commands into precise, extremely high-torque rotation for heavy-duty industrial machining.

---

🔩 Key Specifications (Typical)

• Model Type: SPM-90
• Power Class: Extreme spindle capacity
• Input Voltage: ~283–339 V AC (3-phase)
• Output Voltage: ~200–240 V
• Cooling: Forced-air (fan-cooled)
• Feedback: Spindle encoder supported for precise orientation

---

🏭 Applications

• Large CNC machining centers
• Heavy-duty CNC lathes
• Gantry and vertical machining systems
• Industrial machines requiring maximum spindle torque, speed, and precision

---

🔍 Key Features

• ✔ Extreme high-power spindle amplifier
• ✔ Supports rigid tapping & spindle orientation
• ✔ High precision speed and torque control
• ✔ Stable under continuous extreme loads
• ✔ Compatible with FANUC αi spindle motors

---

📊 Position in A06B-6117-C Spindle Series
