Description

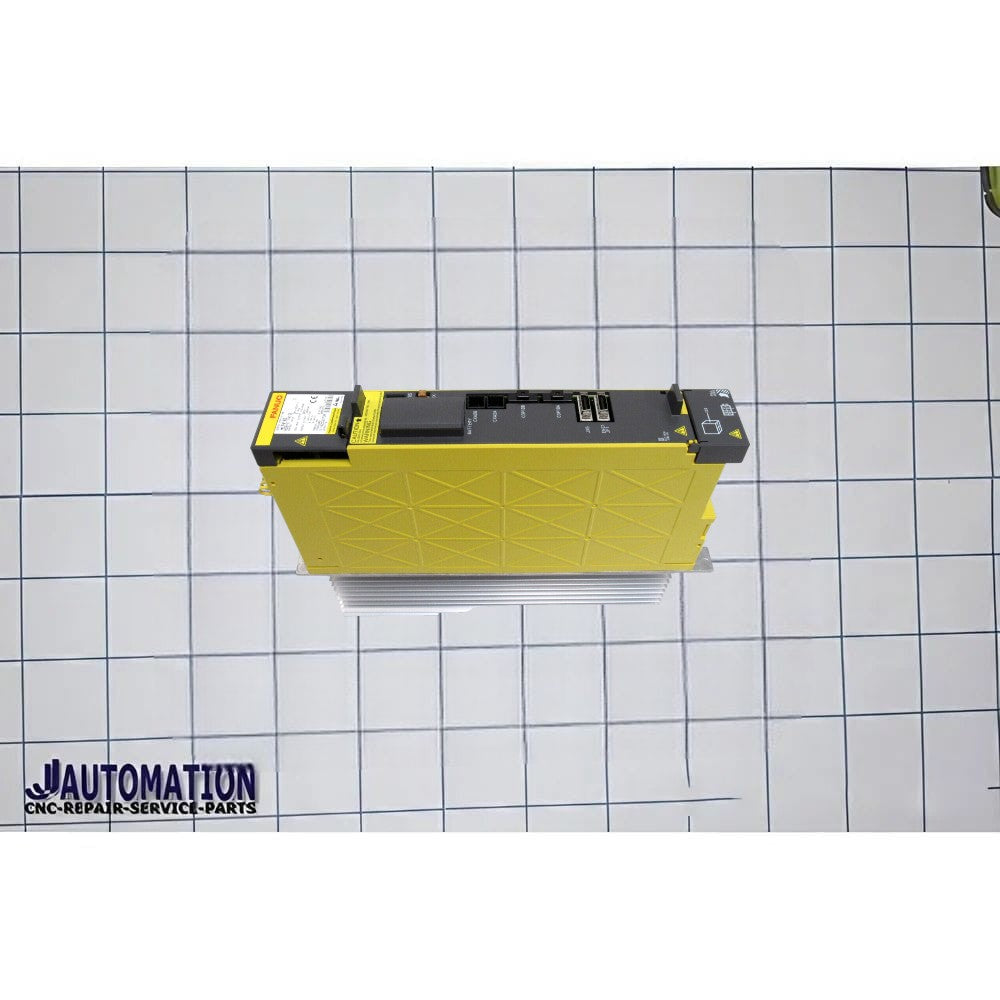

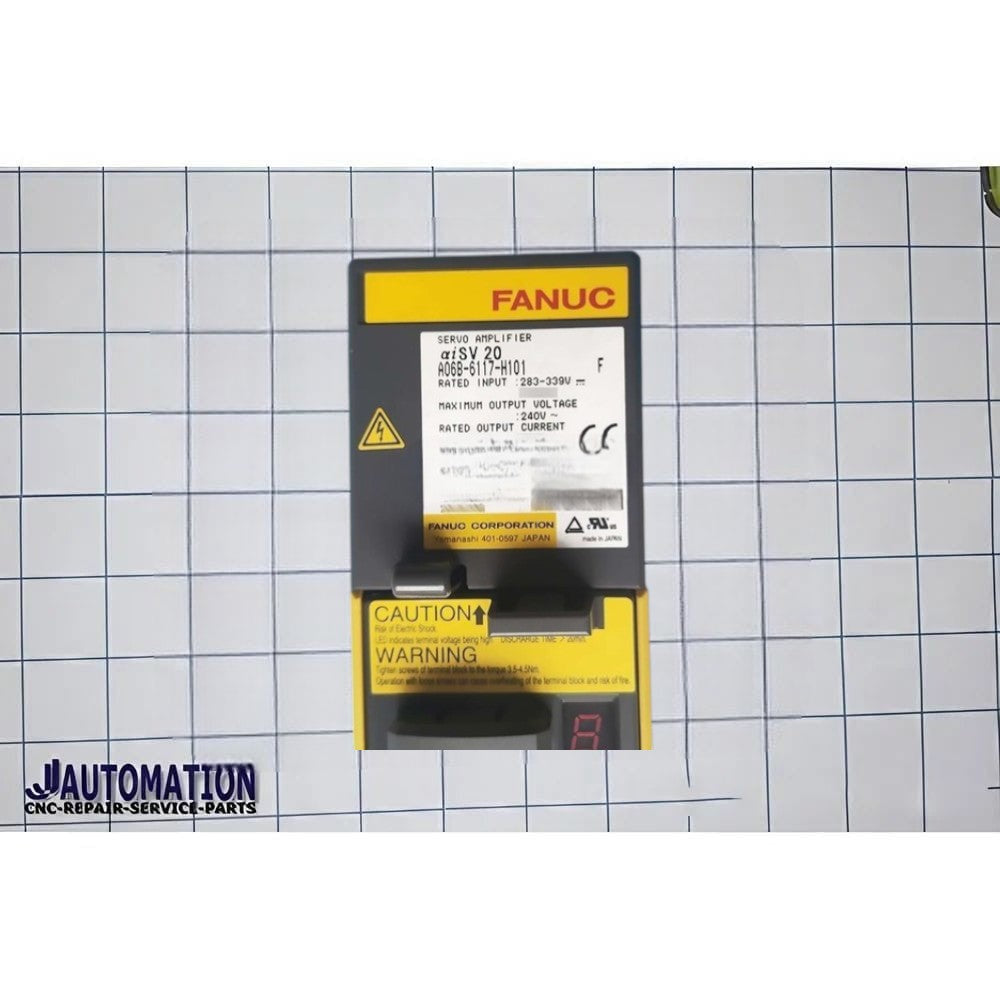

FANUC A06B-6117-H101 is a Servo Amplifier Module (βi series) used in CNC machines to drive and control servo motors.
Basic Description
-
Manufacturer: FANUC
-
Part Number: A06B-6117-H101
-
Type: βi Servo Amplifier Module
-
Series: βi (Beta-i)
-
Axes: 1-Axis servo amplifier
-
Input Power: 200–230 V AC (typical CNC power supply)
Main Function
This servo amplifier is responsible for controlling a single servo motor axis in a CNC machine. It performs:
-
Servo motor current control
-
Speed control
-
Position control
-
Communication with the CNC controller
-
Monitoring encoder feedback
Typical Applications
The A06B-6117-H101 is commonly used in:
-
CNC machining centers
-
CNC turning centers (lathes)
-
Industrial machines equipped with FANUC βi servo systems
Internal Components
Inside this amplifier you will typically find:
-
Power module (IGBT)
-
Control PCB
-
Cooling system / heat sink
-
Signal interface connectors
Simple Explanation
✅ A06B-6117-H101 = FANUC βi single-axis servo amplifier that drives one CNC servo motor.
