Description

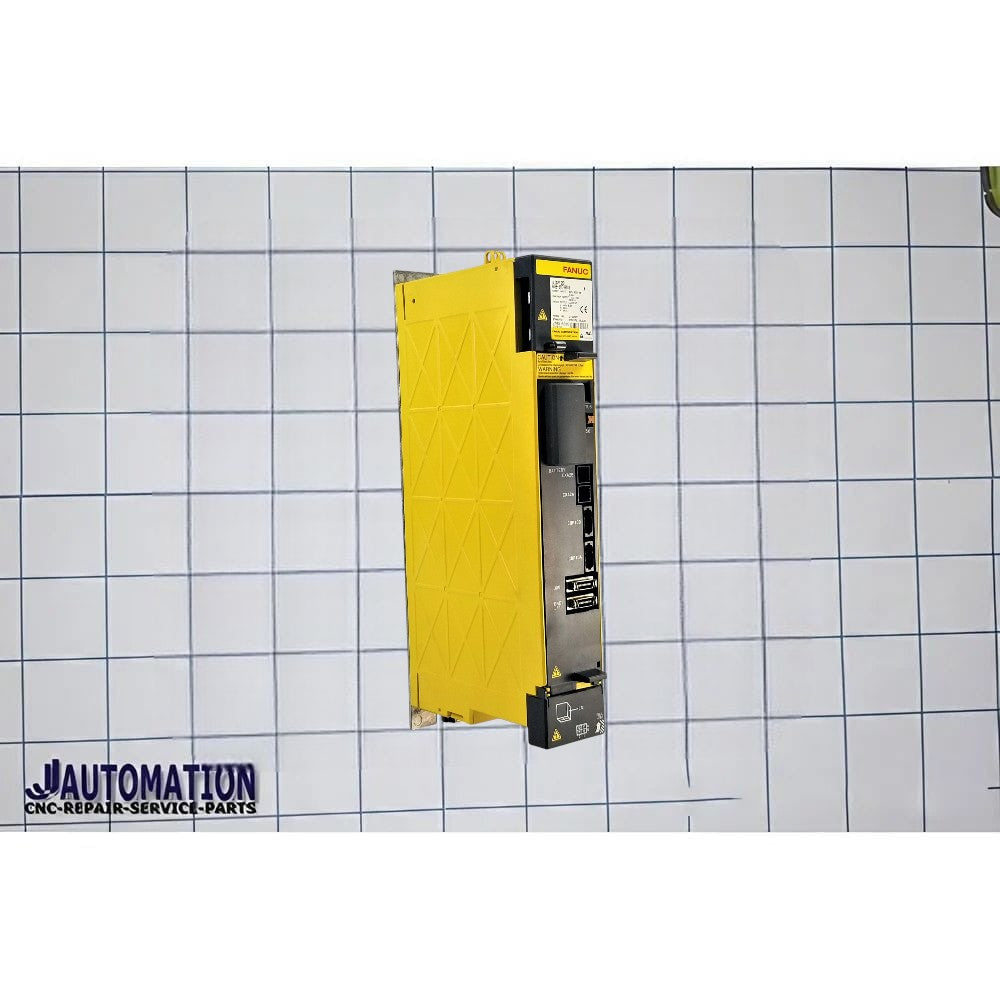

FANUC A06B-6117-H103 is a βi series servo amplifier module used in CNC machines to control servo motors.
Basic Description
-
Manufacturer: FANUC
-
Part Number: A06B-6117-H103
-
Series: βi (Beta-i) Servo Amplifier
-
Type: Single-axis servo amplifier module
-
Power Supply: Typically 200–230 V AC
Main Function
The A06B-6117-H103 amplifier controls one CNC servo motor and performs:
-
Current control for the servo motor
-
Speed control
-
Position control based on CNC commands
-
Processing encoder feedback signals
-
Communication with the CNC controller
Typical Applications
This servo amplifier is used in machines such as:
-
CNC machining centers
-
CNC lathes
-
Industrial automation equipment using FANUC βi servo systems
Internal Structure
Inside the amplifier you will typically find:
-
Power module (IGBT inverter)
-
Control PCB boards
-
Cooling heat sink
-
Feedback and signal connectors
Simple Explanation
✅ A06B-6117-H103 = FANUC βi single-axis servo amplifier used to drive one servo motor axis in a CNC machine.
