Description
Basic Description
-

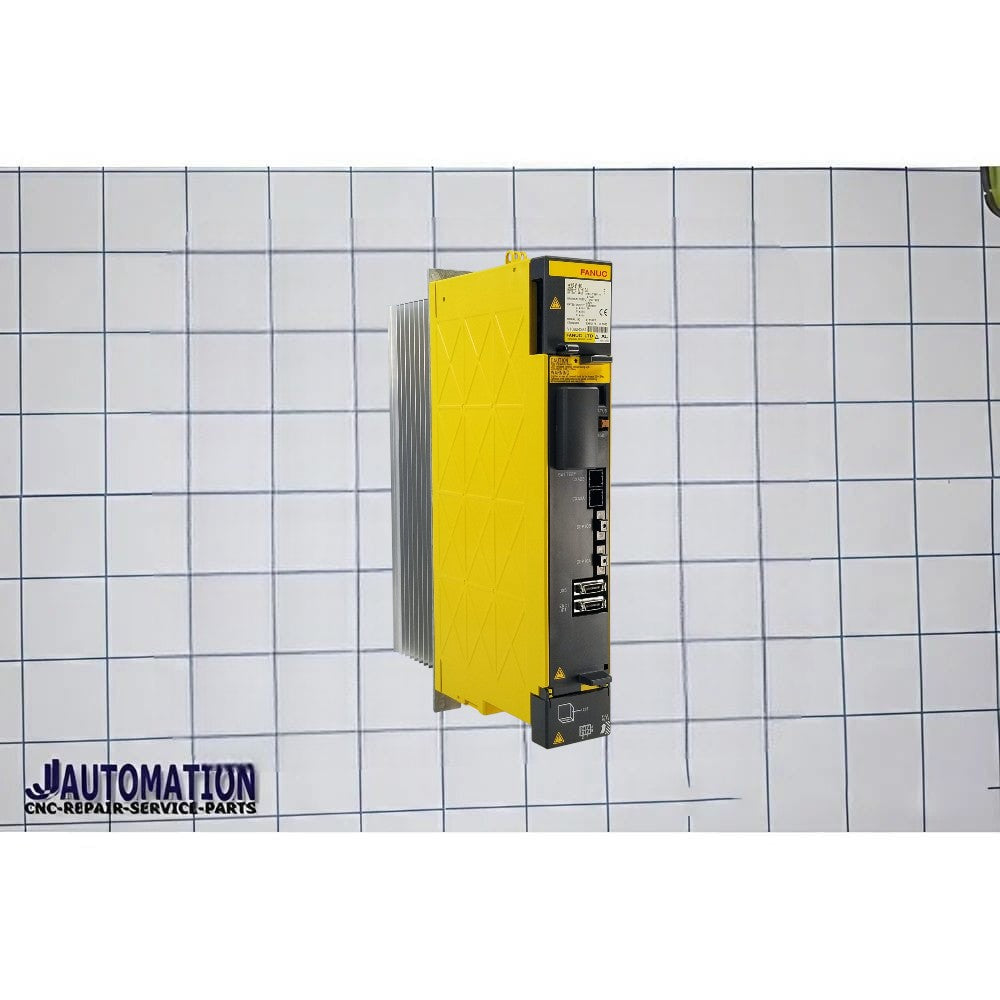

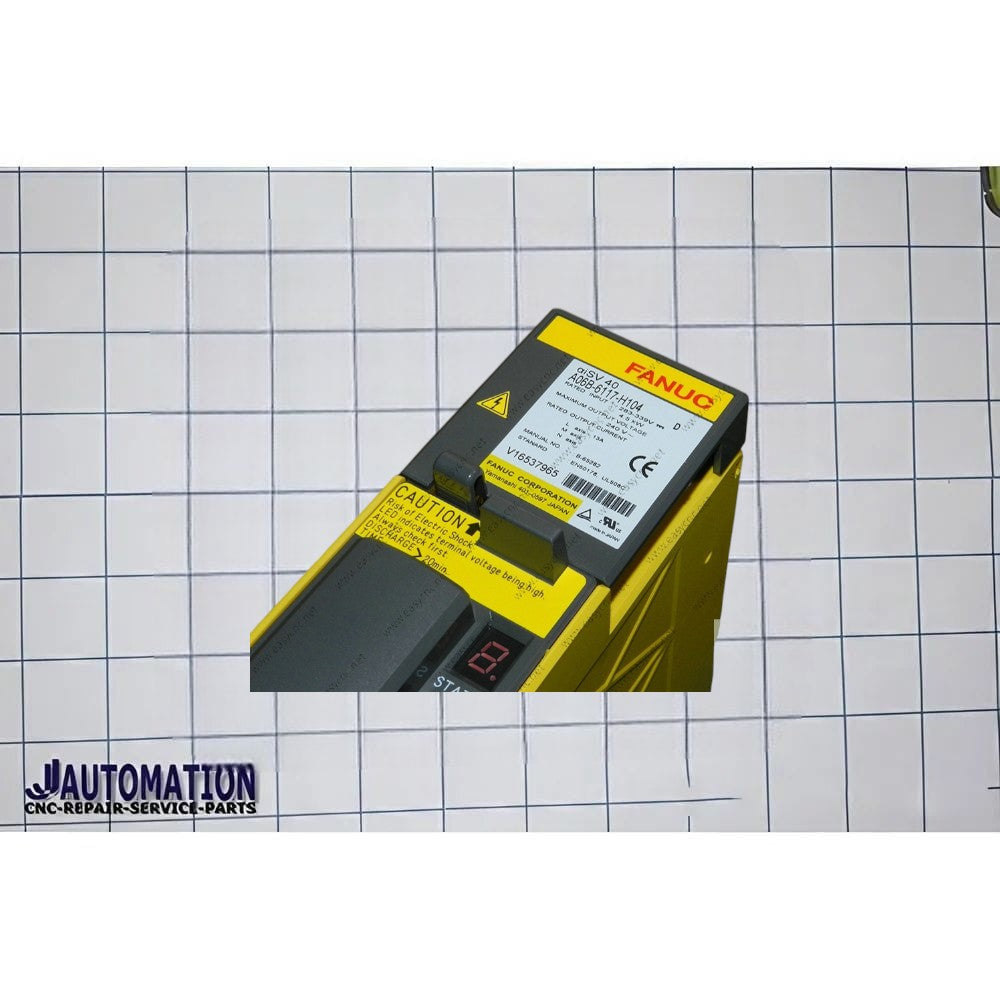

Manufacturer: FANUC
-
Part Number: A06B-6117-H104
-
Series: βi (Beta-i) Servo Amplifier
-
Type: Single-axis servo amplifier module
-
Power Supply: 200–230 V AC (typical CNC power input)
Main Function
The A06B-6117-H104 amplifier is used to control one servo motor axis in a CNC machine. It performs:
-
Current control for the servo motor
-
Speed control
-
Position control from CNC commands
-
Processing encoder feedback signals
-
Communication with the CNC controller
Typical Machines
This amplifier is commonly installed in:
-
CNC machining centers
-
CNC lathes
-
Industrial machines using FANUC βi servo systems
Internal Sections
Inside the module there are usually:
-
IGBT power inverter module
-
Control PCB boards
-
Cooling heat sink
-
Motor and encoder connectors
✅ Simple explanation:
A06B-6117-H104 = FANUC βi single-axis servo amplifier used to drive one servo motor in a CNC machine.
