Description

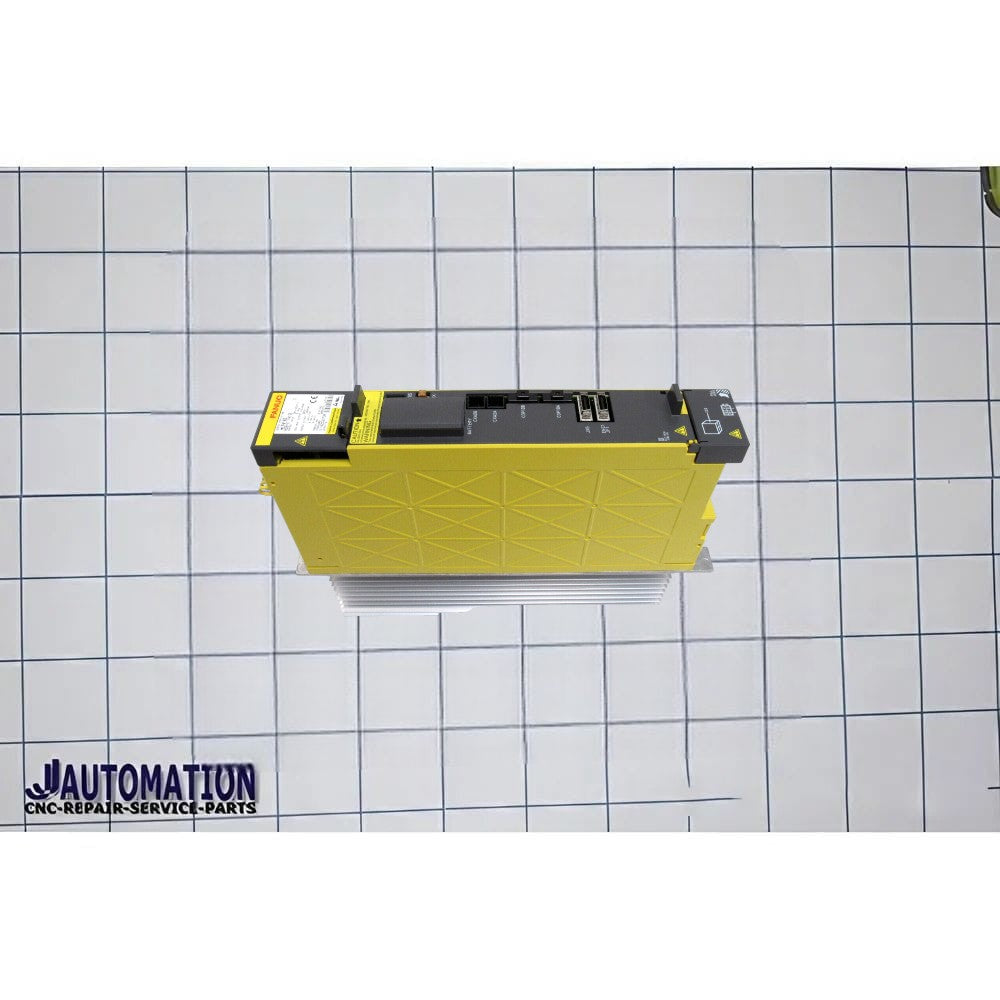

FANUC A06B-6117-H105 is a servo amplifier module used in FANUC CNC systems to control a servo motor axis.
Basic Description
-
Manufacturer: FANUC
-
Part Number: A06B-6117-H105
-
Series: αi (Alpha-i) Servo Amplifier
-
Model: AiSV-80
-
Type: Single-axis servo amplifier module
-
Application: CNC machines and industrial automation systems
Main Function
This amplifier controls the motion of a servo motor axis in a CNC machine. It performs:
-
Servo current control
-
Speed control
-
Position control
-
Processing encoder feedback
-
Communication with the CNC controller
Key Technical Specifications
-
Rated power: about 5.5 kW
-
Input voltage: approx. 283–339 V AC
-
Output voltage: up to 240 V AC
-
Rated output current: about 19 A
-
Frequency range: up to ~334 Hz
Where It Is Used
You will typically find this module in:
-
CNC machining centers
-
CNC lathes
-
Robotics and automation equipment
-
Precision manufacturing systems
Simple Explanation
A06B-6117-H105 = FANUC αiSV-80 single-axis servo amplifier used to drive a CNC servo motor with high precision.
