Description

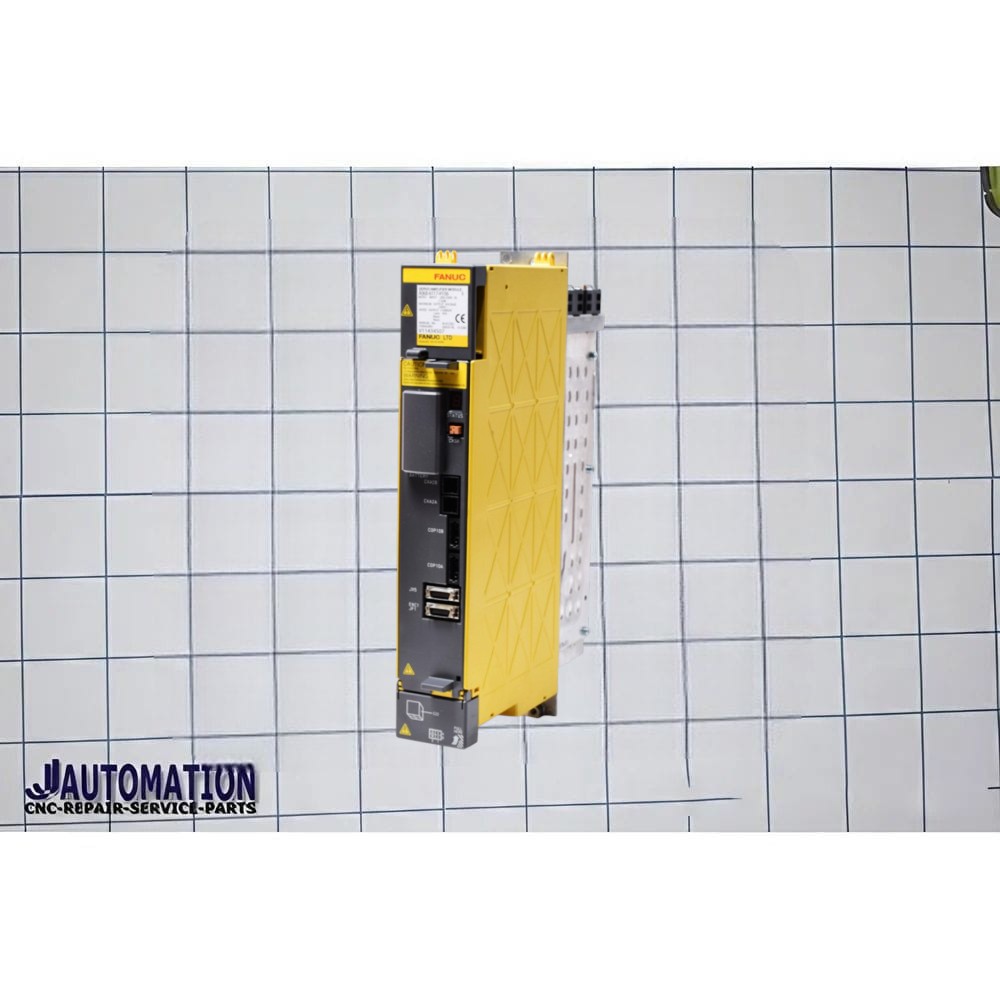

FANUC A06B-6117-H106 is a αi (Alpha-i) series servo amplifier module used in CNC machines to control servo motors.
Basic Description
-

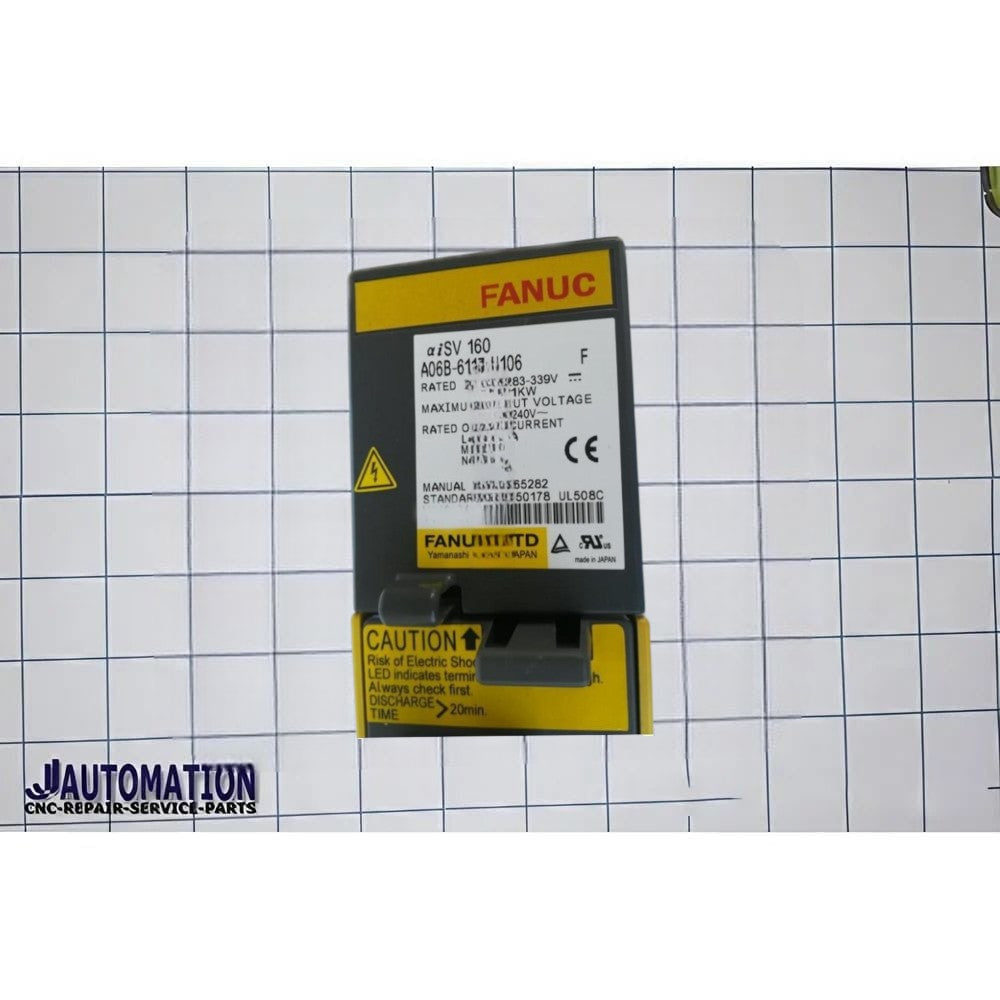

Manufacturer: FANUC
-
Part Number: A06B-6117-H106
-
Series: αi Servo Amplifier
-
Model: AiSV-160
-
Type: Single-axis servo amplifier
-
Application: CNC machine servo motor control
Main Function
This amplifier controls one servo motor axis in a CNC machine and performs:
-
Motor current control
-
Speed control
-
Position control
-
Processing encoder feedback signals
-
Communication with the CNC controller
Typical Technical Specifications
-
Rated output power: about 11 kW
-
Input voltage: approx. 200–240 V AC
-
Output current: around 40 A (approx.)
-
Used for: medium to high-power servo motors
Typical Machines
You can find this amplifier in:
-
CNC machining centers
-
CNC turning centers
-
Heavy industrial automation machines
-
Equipment using FANUC αi servo systems
Internal Components
Inside the module there are:
-
IGBT power inverter module
-
Control PCB boards
-
Cooling heat sink
-
Motor and encoder connectors
✅ Simple explanation:
A06B-6117-H106 = FANUC αiSV-160 single-axis servo amplifier used to drive larger CNC servo motors.
