Description

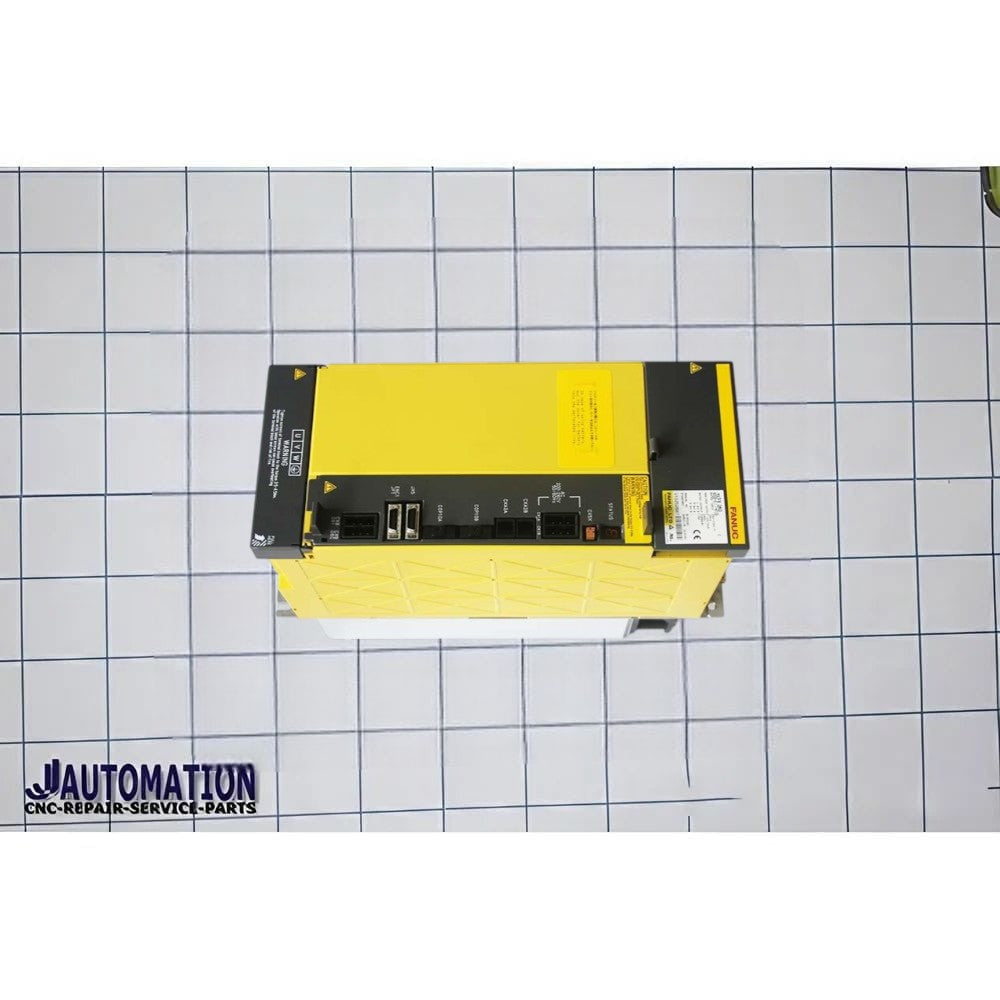

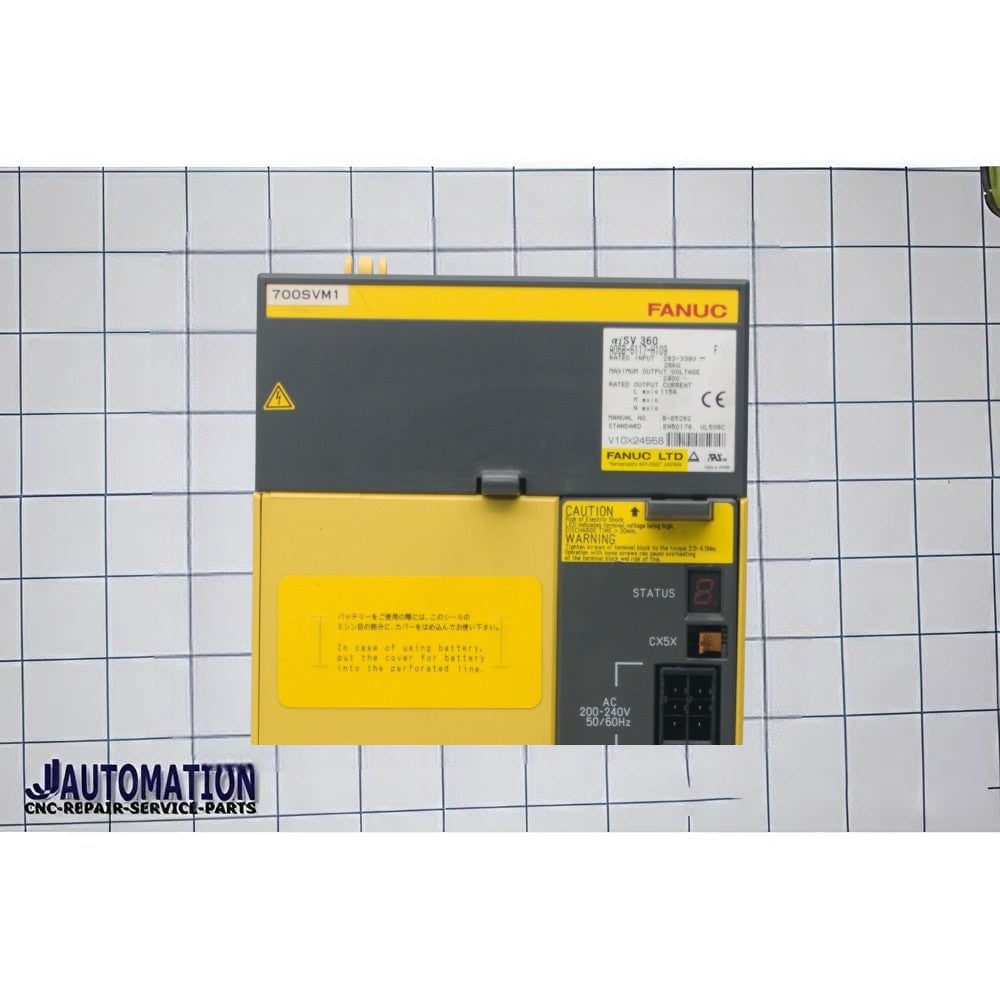

FANUC A06B-6117-H109 is a servo amplifier module from the αi (Alpha-i) series used in CNC machines to control high-power servo motors.
Basic Description
-
Manufacturer: FANUC
-
Part Number: A06B-6117-H109
-
Series: αi Servo Amplifier
-
Model: AiSV-360
-
Type: Single-axis servo amplifier module
Main Function
This amplifier controls one servo motor axis and performs:
-
Current control for the servo motor
-
Speed control
-
Position control based on CNC commands
-
Processing encoder feedback signals
-
Communication with the CNC controller
Typical Technical Specifications
-
Rated output power: about 22 kW (approx.)
-
Input voltage: around 200–240 V AC
-
Output current: about 90 A (approx.)
Typical Applications
You will find this amplifier in machines such as:
-
Large CNC machining centers
-
Heavy-duty CNC lathes
-
Industrial automation equipment
-
Systems using high-power FANUC servo motors
Internal Components
Inside the module there are typically:
-
IGBT power module
-
Control PCB boards
-
Cooling heat sink
-
Motor and feedback connectors
✅ Simple explanation:
A06B-6117-H109 = FANUC αiSV-360 high-power single-axis servo amplifier used to drive large CNC servo motors.
